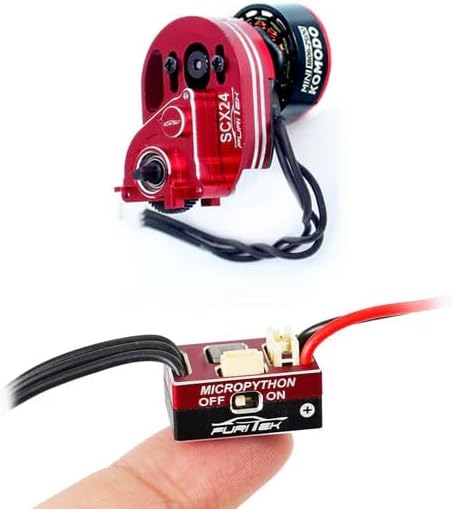

I. MicroPython ESC – Next-Level Performance in a Micro Package:

The MicroPython ESC utilizes FOC (Field-Oriented Control) technology to deliver buttery-smooth throttle control, even at ultra-low speeds. This tiny but mighty ESC is packed with advanced features:
- Live tuning via Furicar App – Adjust settings on the go using Android or iOS.
- Super slow and ridiculously smooth throttle control – Ensures maximum crawling precision.
- New firmware algorithm – Improves startup smoothness for a seamless FOC experience.
- Supports both Brushed & Brushless motors – Switch between modes via the app (default: brushless).
- Powerful BEC – 5.5V/7.4V at 5A to handle power-hungry servos.
- Compact & lightweight – Perfect fit for micro crawlers.
- Real-time telemetry (10Hz update rate) – Monitor performance in real-time.
- FREE lifetime firmware updates – Keep your system up to date with the latest enhancements.

*** MicroPython ESC Specifications:
- Battery Support: 2-3S LiPo
- BEC: 5.5V/7.4V 5A
- Constant Current: 25A
- Burst Current: 50A
- Built-in Power Switch
- Dimensions: 22x14x9.8mm (0.87x0.55x0.39 inch)
- Weight: 7.6g (0.27oz)
- Required: A new two-channel radio system

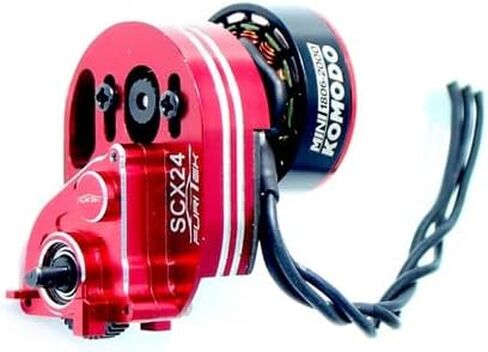

- Mini KMD V2 Brushless Motor – Unmatched Power & Efficiency

II. The Mini KMD V2 is engineered for superior efficiency, torque, and durability. This 14-pole, 12-slot high-torque motor is designed for micro crawlers that demand peak performance. With high-purity copper windings, ultra-thin 0.2mm stator laminations, and precision-balanced rotors, this motor maximizes power efficiency and reliability.

*** Mini KMD V2 Features:
- 14-pole, 12-slot design – Ensures high torque and efficiency.
- High-temperature, high-purity copper windings – Reduces losses and improves heat dissipation.
- Ultra-thin 0.2mm stator laminations – Minimizes eddy losses for peak efficiency.
- Japanese NMB High RPM ABEC5 bearings – Smooth operation and increased longevity.
- Precision-balanced rotor – For improved reliability and maximum RPM.
- CNC-machined 6061 T6 aluminum heatsink can – Ensures efficient cooling and durability.
- Precision-engineered for maximum energy conversion – Delivers consistent performance under load.

*** Mini KMD V2 Specifications:
- KV Rating: 2500KV
- No-load Current (@10V): Minimal for high efficiency
- Power Output: 160W
- Battery Compatibility: 2-4S LiPo
- Resistance: 0.20 Ohm
- Max Current: 14A
- Slot/Pole: 12S14P
- Motor Size: Ø 23mm x 15mm
- Stator Size: 1806
- Weight: 19g

*** Note: NOT WATERPROOF
