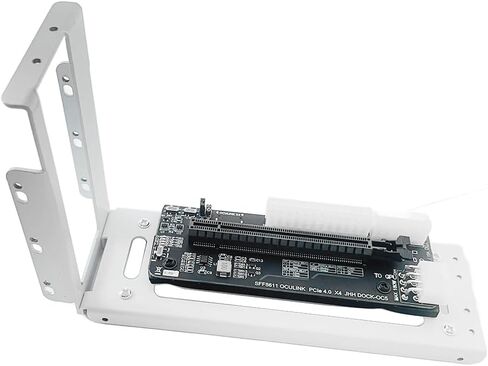

JMT M.2 M-Key to PCIE 4.0X4 SFF 8611 External Graphics Card Stand Bracket Compatible with Oculink / M.2 NVMe Laptop eGPU GDP NUC

Product Description:

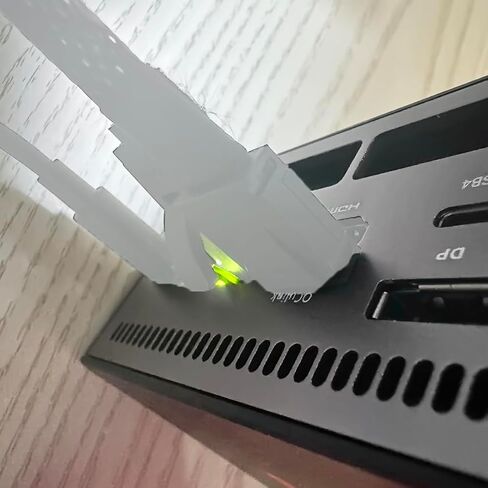

1, O·culink external device, support devices with o·culink port to expand PCIE card.

2, Support small host with o·culink port, GDP handheld game console, laptop to expand external PCIE card.

3, Support external GPU graphics card, PCIE network card, PCIE sound card, PCIE capture card, NVME\U.2\U.3 SSD, etc..

4, Maximum bandwidth speed is PCIE 4.0 X4 GEN4, 64G. backward compatible with GEN3.

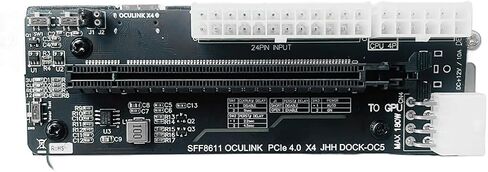

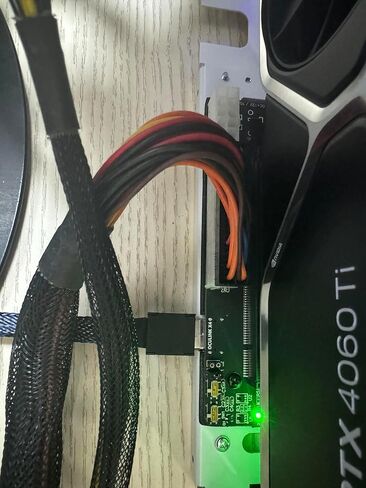

5, Support ATX\SFX\Small 1U power supply, the adapter board only needs to be plugged into the 24P power supply, the graphics card is powered by the power supply.
Power supply should be selected 500W and above.

6, Support to follow the host synchronous start, synchronous stop, does not support hot-swap.

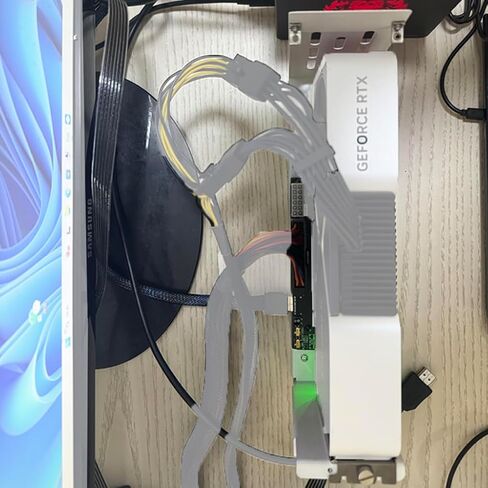

7, The external GPU graphics card can support up to 4090, the maximum performance of 95%.

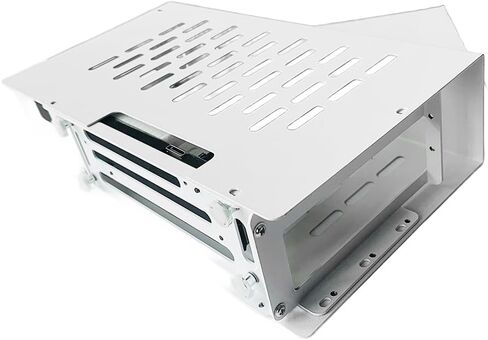

8, Only supports 2-slot graphics card, metal box limits the length of the graphics card 24cm, limit the thickness of 44cm.

9, This box does not support the built-in power supply.

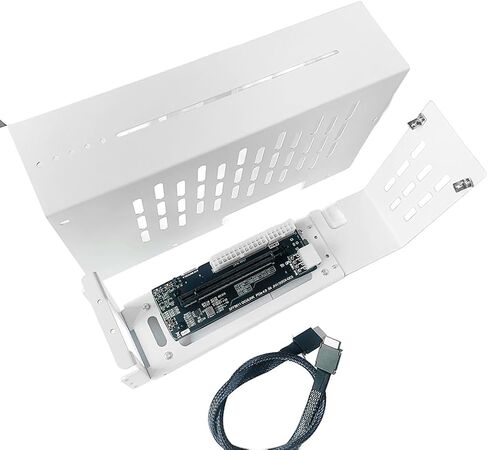

10, you can buy M.2 to O·CULINK adapter board model TKM1 and TKM7 separately, you can buy longer 8611 cable model OC1A separately.
