ElecGear AMD CPU Contact Frame + Liquid Metal Thermal Paste, Carbon Fiber Mod ILM for AMD Ryzen 7000 Zen4 Series on AM5 LGA1718 Socket, Replacement CPU Fixing Buckle with Double Sealing Guard

KWD 12.500
Brand
ElecGear
Category
Fans & Cooling
Weight
10 g
– 1 +

Special Features

  • [Warning and General Info] – The DIY Mod kit consists of an anti-bending replacement buckle for AMD Ryzen 7000 Series CPUs in AM5 LGA1718 Socket, liquid metal thermal paste and a patent pending structure encloses the liquid inside on the top of CPU. (🔺Noted: 1. The operation takes serious DIY skills, it's for experienced users alone. 2. Never use the liquid metal with aluminum heatsink. 3. Carefully study the picture and choose an appropriate heatsink.)

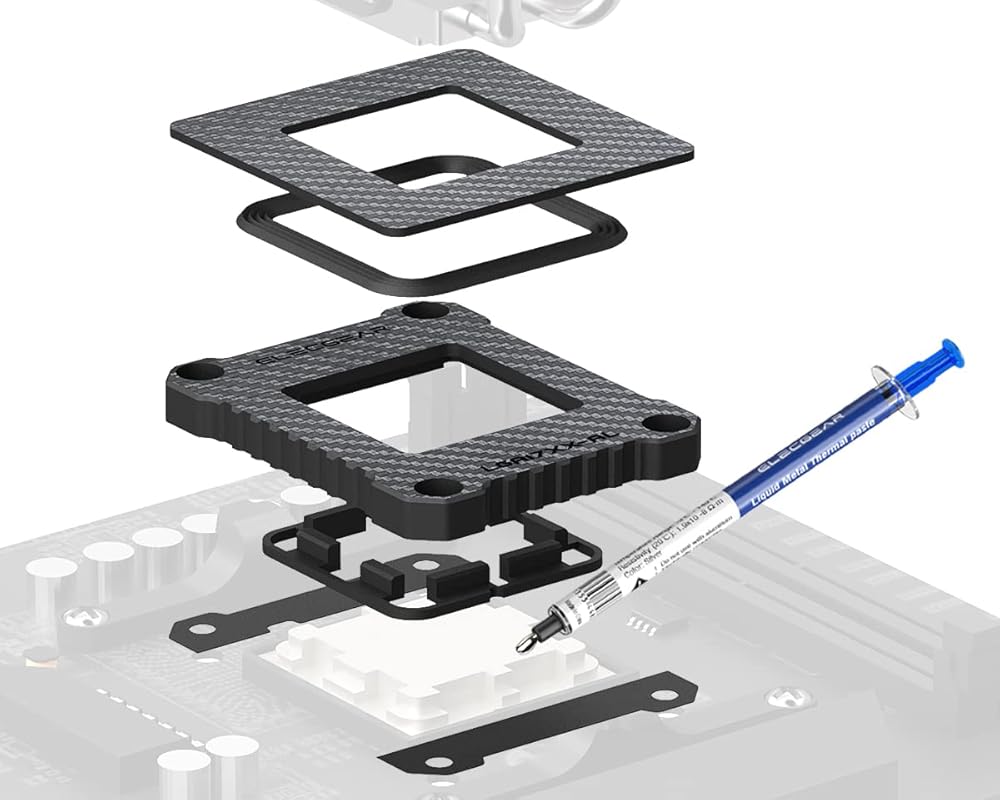

  • [AM5 Contact Frame and CPU Guard] – Made of carbon fiber, the fixing buckle evenly distributes the pressure on the entire edge of IHS. The CNCed frame ensures CPU is perfectly flat when installed in the socket, preventing it from flexing the middle down. Double sealing guards prevent the liquid metal from leakage. The insulating pads and the gasket withstand 260℃ high temperature. Works with AMD Ryzen 7000 Series: 7600X, 7700X, 7900X, 7950X, Models with no X suffix and the latest X3D editions
  • [Liquid Metal Thermal Paste] – Based on gallium, we added special materials to deliver higher thermal conductivity at 82W/m-K. This V3 edition looks not like a liquid, it's an ice cream. 10 times superior to normal paste, easy to apply and long durability. Perfect for enthusiasts seeking for extreme performance. (Noted: 🔺Never use with aluminum. 🔺Electrically conductive, never spill on any electronic parts or PCB. 🔺It will solidify in winter, please warm the tube in water before use)
  • [Bending Issue of LGA1718 Buckle] – Again, like Intel's 12th and 13th LGA1700. We did notice some 0.1mm warp at the middle of IHS. AMD thickened its IHS, however they cut it with 8 large notches which greatly weaken the strength. The stock LOTES buckle places tremendous pressure on the middle that causes the top to bend. It's no good for heat contact with heatsink

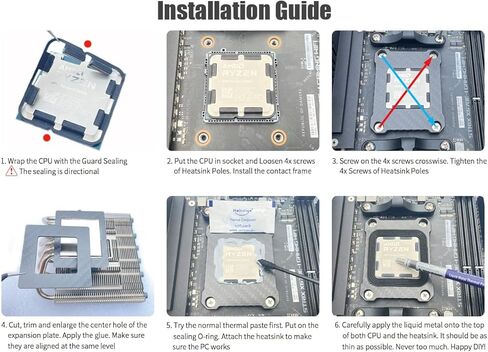

  • [All DIY Tools included] – A plate to extend the bottom surface of heatsink (if needed). This plate together with the O-ring encloses the liquid inside. The plate must be glued and aligned with the heatsink. We added assorted files and glue to fulfill this purpose. Replacement screws and T20 screwdriver for replacing the stock CPU buckle. Cotton swabs, finger cuffs, small brush for apply the liquid metal. A detailed instruction demonstrating how to do the operation

Description

Anti-bending Correction Bracket for AMD Ryzen 7000 Series
Liquid Metal 82W/m-K deliver Extreme Thermal Conductivity

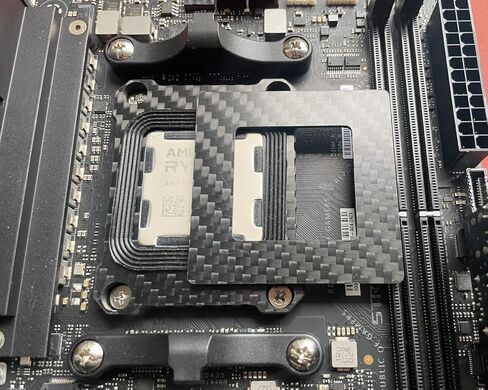

Carbon Fiber Frame ensures CPU is perfectly Flat in AM5 Socket
CPU Guard and Top Sealing O-rings prevent from Liquid Leakage
Special Profile will not interfere with Small Parts on CPU/PCB
All the Necessary Tools Kit are included for the DIY Operation

🔺WARNINGS:
1.Takes serious DIY skills, it's for experienced PC nerds alone
2.The liquid will solidify in winter, please warm the tube in water before use
3.Never use the liquid metal with aluminum heatsink
4.Electrically conductive, never spill on any electronic parts or PCB

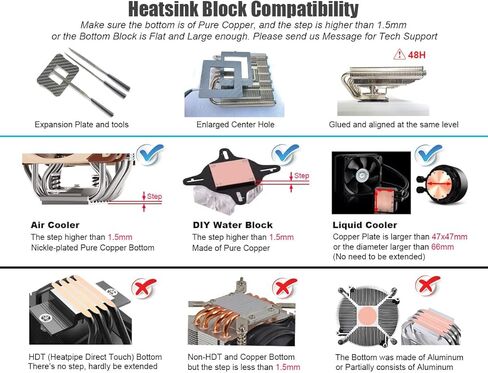

5.Carefully study the picture and choose an appropriate heatsink
6.Try the normal sample paste first

Spec. of Anti-bending Frame:
Model: LGA1718-CF
Dimension: 70x56x6.9mm
Weight: 15gram
Color: Black with Texture
Compatibility:
AMD 7600, 7700, 7900, 7950
AMD 7600X, 7700X, 7900X, 7950X
AMD 7800X3D, 7900X3D, 7950X3D

Spec. of Liquid Metal:
Model: LMTP-V3
Thermal Conductivity: 82W/m-K
Resistivity (20℃):1.9x10-8Ω·m
Specific Gravity (20℃): 5.8g/cm3
Physical Form: Grease
Temp. Range: -10℃ - 140℃
Harmless: Yes

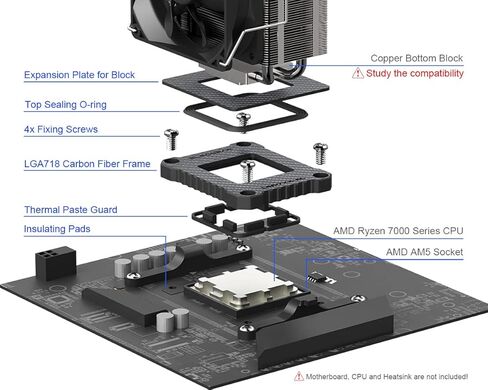

What's in Package:
1x Anti-bending Contact Frame (AMD Carbon Fiber Version)
1x Liquid Metal Thermal Paste (82W/m-K, 1.5gram)
1x Expansion Plate for Heatsink
1x Top Sealing O-ring
1x CPU Guard
1x Box of Assorted Tools
