l293D Motor Driver DC Shield Expansion Board Compatible with for Arduino Raspberry Pi

KWD 3

الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
1 +

مميزات خاصة

  • L293D DC Motor Drive:Stepper Motor Drive Shield Expansion Board Compatible with for Arduino Raspberry Pi
  • 4 bi-directional DC motors and 4 PWM speed control (approx. 0.5% resolution)
  • 2 stepper motors forward/reverse control, single/double stepping, staggered or micro-stepping, and rotational angle control
  • 4 H-Bridges: The L293D chip delivers 0.6A (1.2A peak) per bridge and is thermally cutoff protected from 4.5V to 36V
  • Pull-down resistors ensure that motors are held in stop state on power-up

وصف

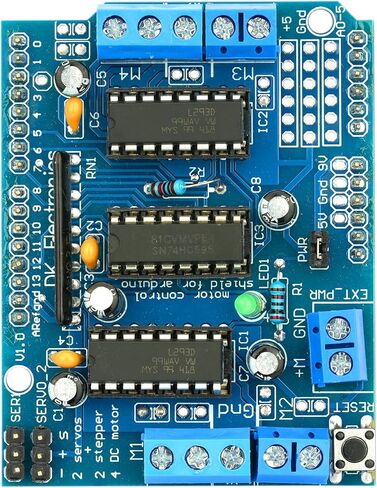

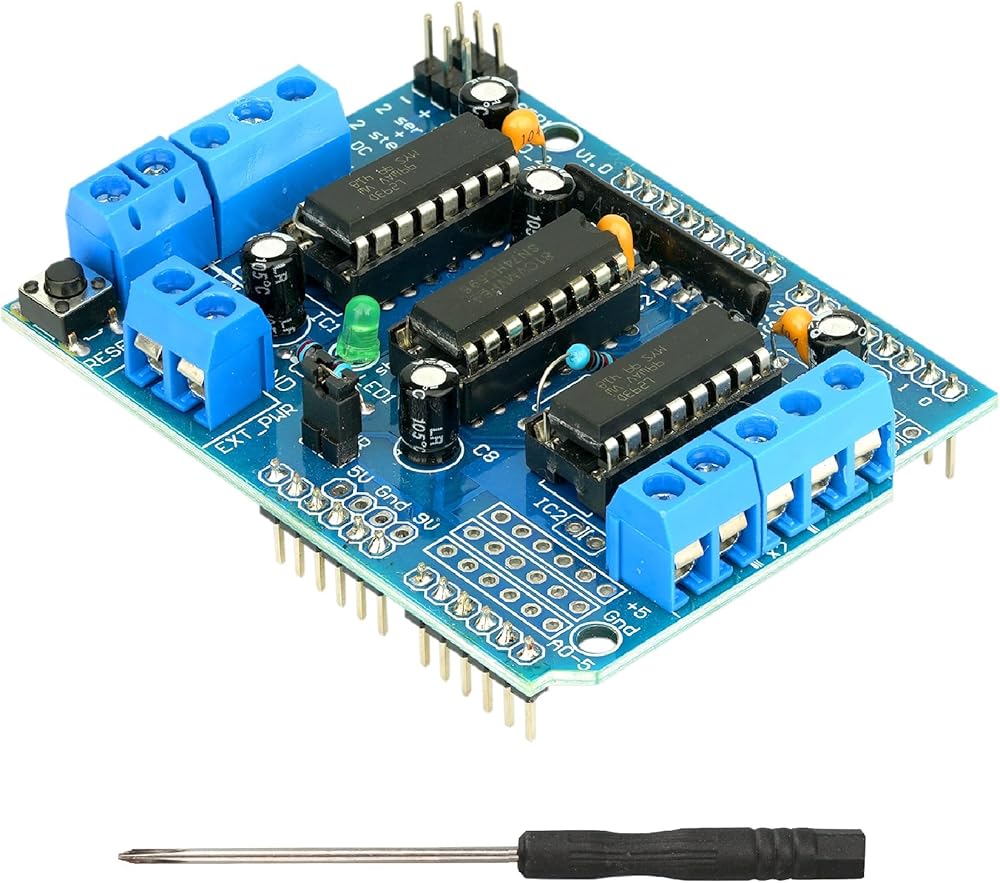

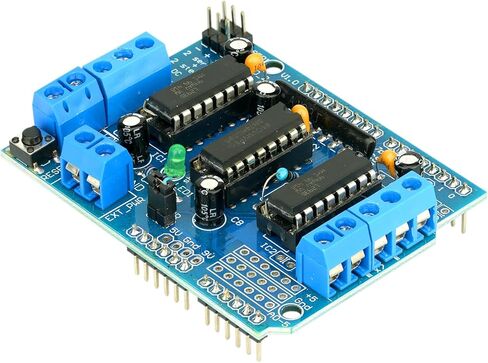

Model: L293D motor driver module
This is a commonly used DC motor driver module, using the L293D chip low current DC motor driver chip. Pins are compatible with A-rduin, which is convenient for enthusiasts to develop quickly
1.2 5V servo motor (servo) ports are compatible with Arduin's high-resolution and high-precision timer-no jitter
2. Up to 4 bidirectional DC motors and 4-way PWM speed regulation (about 0.5% resolution)
3. Up to 2 stepper motors forward and reverse control, single/double step control, staggered or microstepping and rotation angle control
4.4-way H-bridge: L293D chip provides 0.6A (peak 1.2A) current per bridge and has thermal power-off protection, 4.5V to 36V
5. Pull-down resistors ensure that the motor remains stopped when powered on
6. Large terminal terminals make wiring easier (10 - 22AWG) and power supply
7. With reset button
8. 2 large terminal external power terminals ensure logic and motor drive power separation
9. Compatible with the latest Arduin UNO Arduin Mega 2560
Compatible application range: Arduin beginners Arduin experimental equipment platform Arduin interactive electronics, Arduin robots, etc.
Features: Multiple functions, easy operation, powerful driver library support and function updates
Can drive 4-way DC motors or 2-way stepper motors while also driving 2-way servos
Recommended combinations:
Drive 4-way DC motors and 2-way servos
Drive 2-way DC motors and 1-way stepper motor and 2-way servos
Drive 2-way stepper motors and 2-way servos
