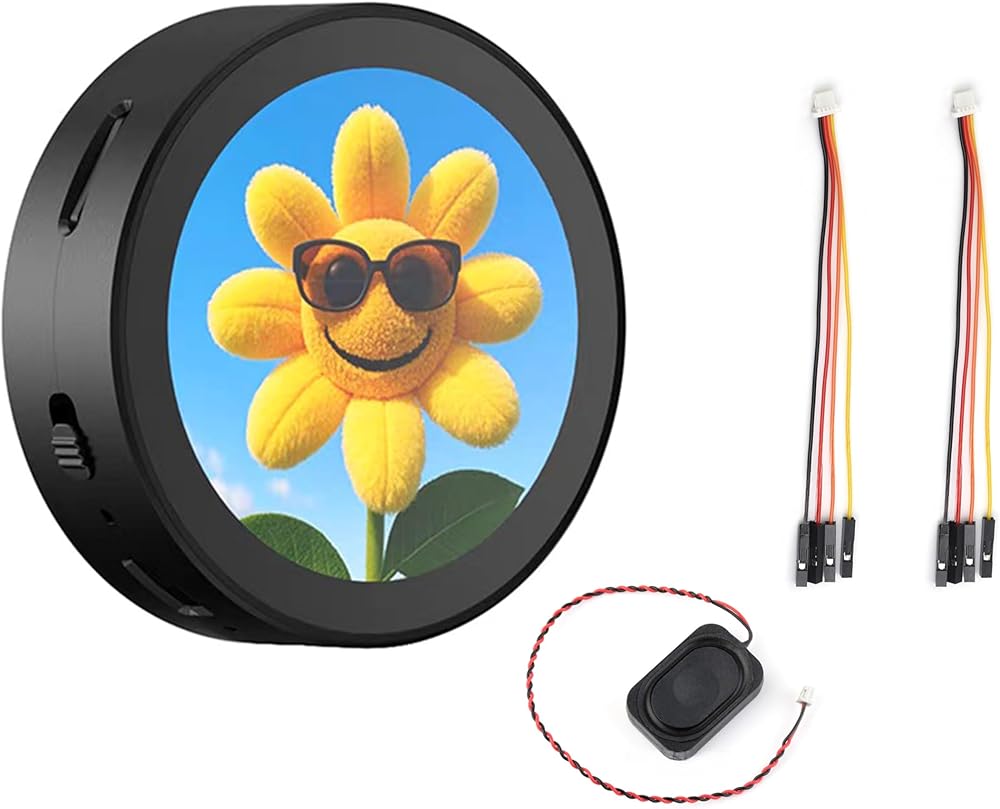

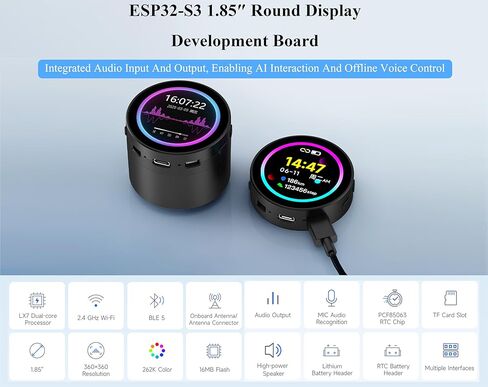

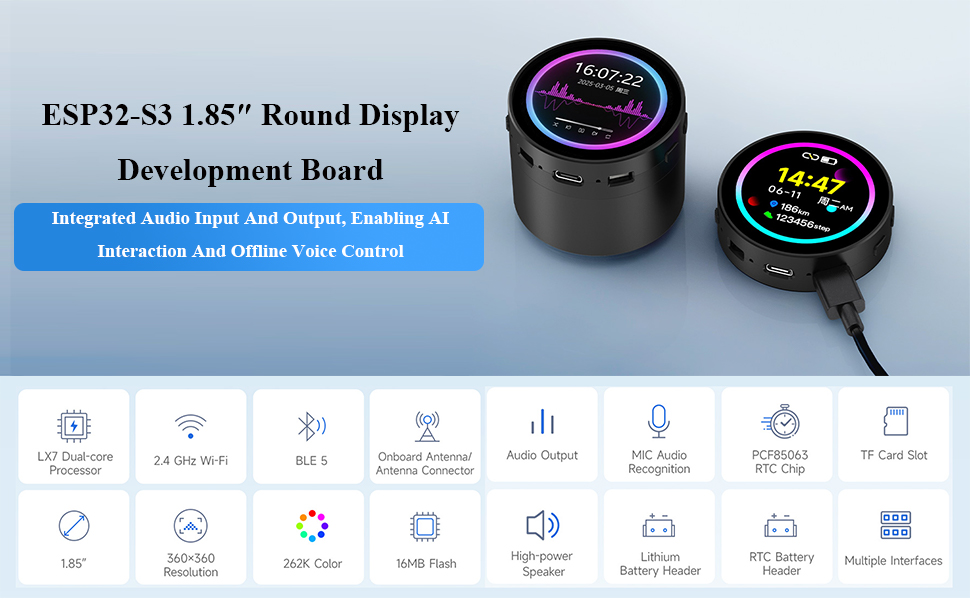

ESP32-S3 1.85inch Round Touch LCD Development Board, 360x360, Supports Wi-Fi & BLE 5, AI Speech, Smart Speaker Box, Support AI Interaction and Offline Voice Control, with 8Ω 2W Speaker
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

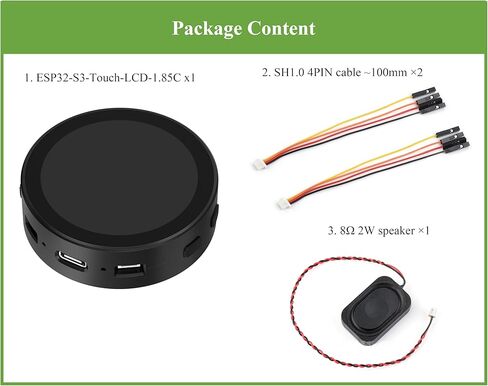

ESP32-S3 with 1.85inch Round Touch LCD Development Board, comes with 8Ω 2W Speaker, it can be used as Smart Speaker Box, AI Speech. Integrated audio input and output, enabling AI interaction and offline voice control.

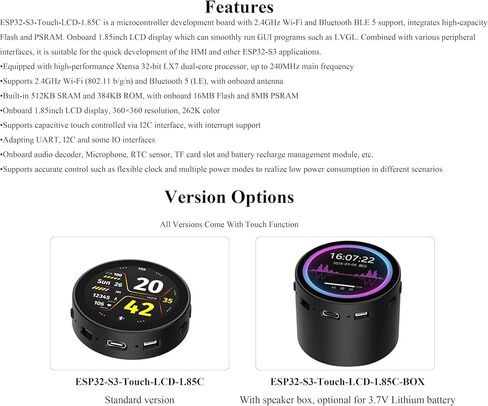

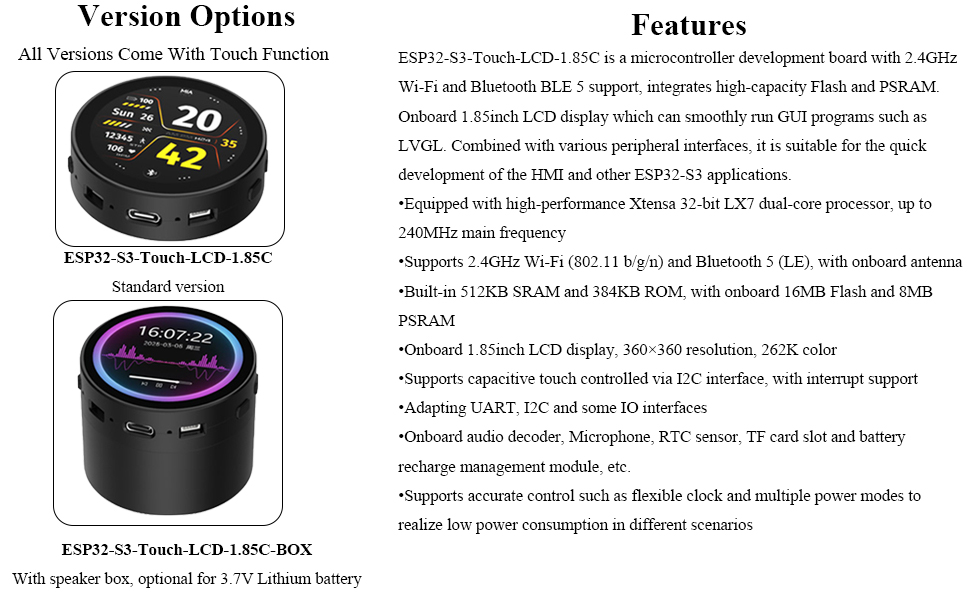

It equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
It is onboard 1.85inch Capacitive touch LCD display, 360×360 resolution, 262K color, wide viewing angle, which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.
Onboard Audio Input/Output: Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with the offline voice model we provided to realize device control via customizable shortcut commands.
Supports AI Speech Interaction: Allows access to online large model platforms such as GPT, DeepSeek, Doubao, etc.

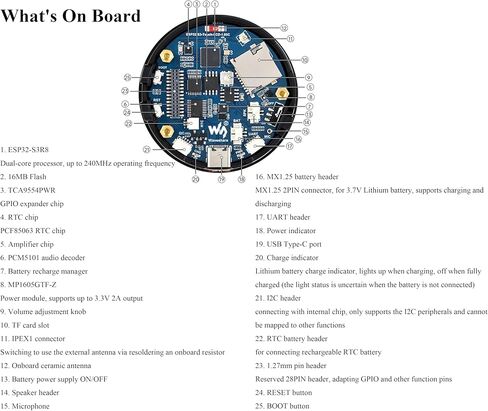

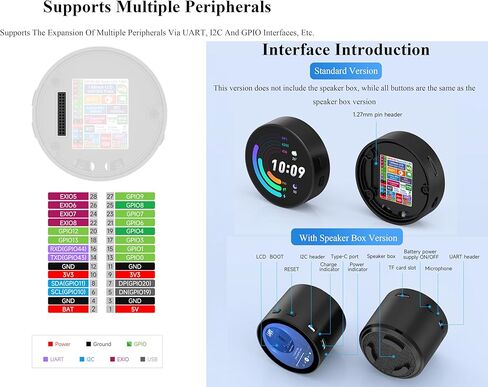

Supports multiple peripherals: Supports the expansion of multiple peripherals via UART, I2C and GPIO interfaces, etc. Onboard audio decoder, Microphone, RTC sensor, TF card slot and batt-ry recharge management module, etc.
Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.
Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/s4tlg
