Waveshare ESP32-S3 7inch Touch Display Development Board, ESP32-S3 with 7inch LCD 800480 5-Point Touch Screen 65K RGB Display, Wi-Fi & Bluetooth 5, 8MB PSRAM and 8MB Flash

KWD 20

Brand
waveshare
Weight
290 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • ESP32-S3 7inch LCD touch display development board, equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency, onboard 7inch capacitive touch display, 800×480 resolution, 65K color, can smoothly run GUI programs such as LVGL
  • ESP32-S3-Touch-LCD-7 microcontroller development board supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna, built in 512KB of Static Random-Access Memory and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
  • Support capacitive touch control via I2C interface, 5-point touch with interrupt support

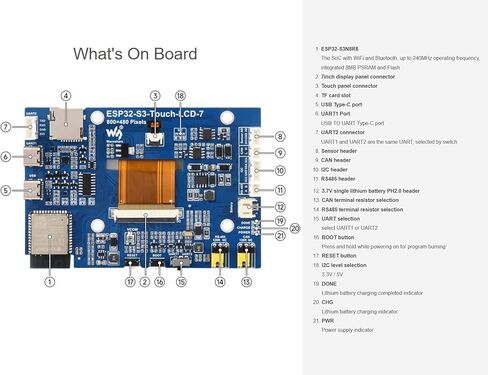

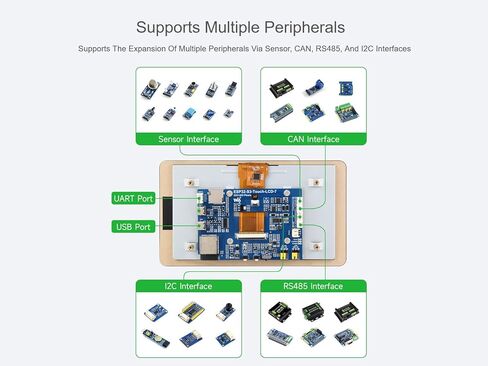

  • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port, various peripheral interfaces suitable for the quick development of the HMI and other ESP32-S3 applications
  • Support flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

Description

Overview

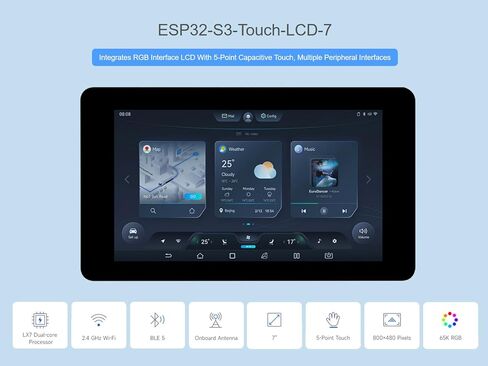

The ESP32-S3-Touch-LCD-7 is a low-cost, high-performance microcontroller development board. It features 2.4GHz WiFi and BLE 5, integrates large Flash storage and PSRAM, and a 7-inch capacitive touch LCD screen. Support running GUI interface demos such as LVGL. It also has multiple external peripheral interfaces (such as CAN, I2C, RS485, and Sensor) for developing applications such HMI on ESP32-S3. With various functions and interfaces, it is suitable for power requirements in IoT, mobile devices, wearable electronics, and smart home applications.

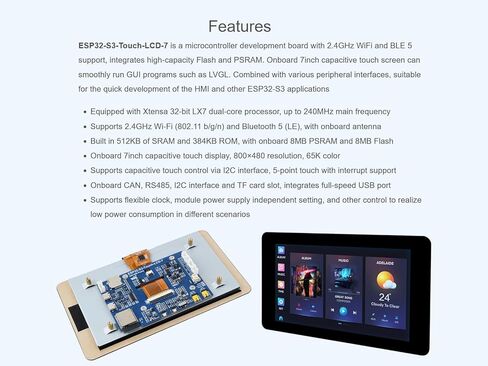

Features
Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency.
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 8MB Flash and 8MB PSRAM.
Onboard 7-inch capacitive touch screen, 800x480 resolution, 65K colors.
Support capacitive touch control via I2C interface, 5-point touch with interrupt support.
Onboard CAN, RS485, I2C interface, Micro SD card slot and so on, integrates full-speed USB serial port.
Support flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.

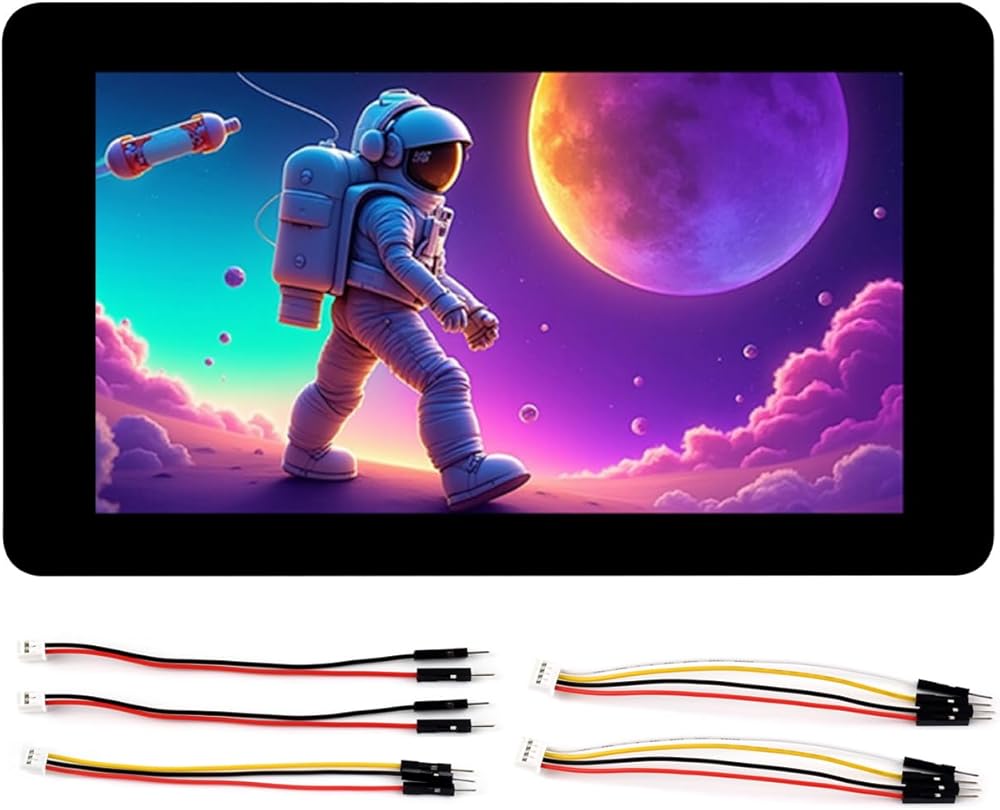

Package Content
ESP32-S3-Touch-LCD-7 x1
HY2.0 2P to 2PIN male cable 10cm ×2
HY2.0 2P to 3PIN male cable 10cm ×1
HY2.0 2P to 4PIN male cable 10cm ×2

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
