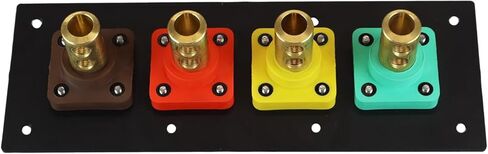

4 Position CAM Lock Panel, 400 Amp, 3 Phase 480V, Male, 45°, Double Set Screw Connections with NEMA 3R Cap and Lanyard Covers, Series 16 CAM Connectors, Power Distribution Panel

KWD 148
– 1 +

Special Features

  • CAM Panels are shipped pre-assembled, reducing labor time and costs for installation - no more cutting individual holes for panel-mounted CAMs
  • High density configuration allows more connections per square foot
  • Standard panel configurations offered to meet most temporary power applications
  • 1/8" powder coated aluminum is non-ferrous and minimizes eddy currents
  • Use Series 16 CAM connections to distribute power. Each row of CAMs allows the distribution of 400 amps of power.

Description

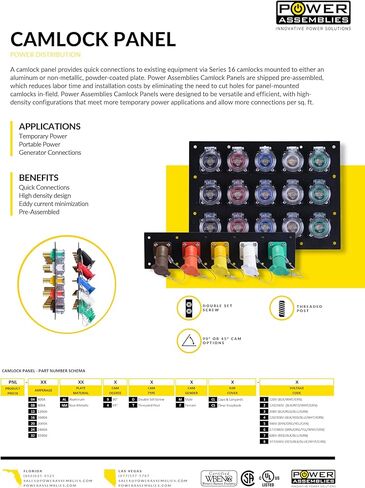

CAM Panels are power distribution panels utilizing industry-standard series 16 CAM connections. They are installed onto machinery, equipment, or part of a facility to allow faster power connections using the CAM connectors. CAM panels are shipped pre-assembled reducing labor time and costs for installation with high density configurations, which allows more connections per sq./ft.
Standard panel configurations available to meet most generator connections and other temporary portable power applications. Panel construction is comprised of 1/8 inches powder coated aluminum and non-ferrous which minimizes eddy currents.

Specifications:
Amperage: 400
Positions: 4 (Note: 4 hole position CAM Panels contain 4 CAMs with 5 positions)
CAM Type:Male
Voltage:3 Phase 480 Volt
CAM Angle:45 Degree
Termination Type:Double Set-Screw connection (UL Listed,Type 3R and 4)
NEMA 3R Cap:Caps and Lanyards (Type 3R and 4)

**PLEASE NOTE: The Pictures shown are for illustration purposes only. Actual product may vary based on the specification selected.
