Pre-soldered Pico 2 W Microcontroller Board Based on Raspberry Pi RP2350 Chip, Adopts Dual-core & Dual-Architecture Design, Support WiFi 4 Wireless and Bluetooth 5.2

KWD 7

Brand
waveshare
Weight
5 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Pico 2 W microcontroller board with pre-soldered header, based on Raspberry Pi RP2350 chip, upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2, with flexible digital interfaces
  • Dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB of Static Random-Access Memory, and 4MB of on-board Flash memory, Castellated module allows soldering direct to carrier boards
  • 26 × multi-function GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels, 12 × Programmable I/O (PIO) state machines for custom peripheral support
  • USB 1.1 with device and host support, Low-power sleep and dormant modes, Drag-and-drop programming using mass storage over USB, Temperature sensor

Description

Overview

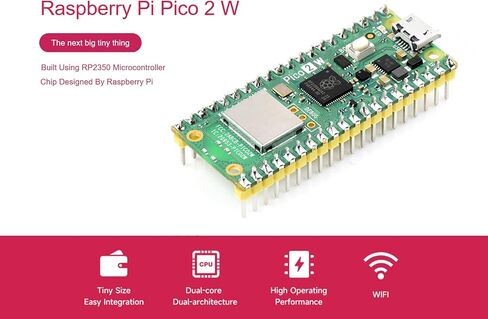

Pre-soldered Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

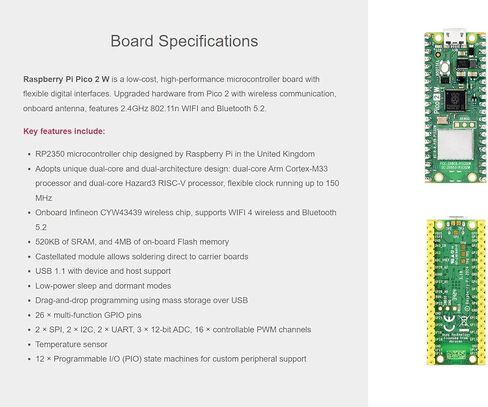

Features
--RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
--Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

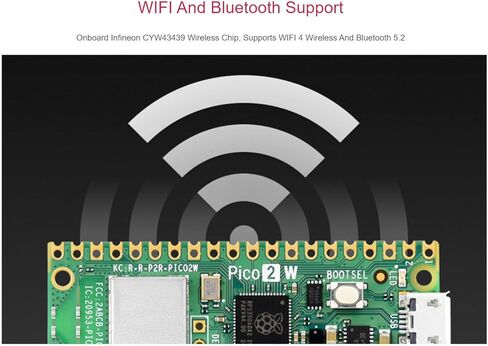

--Onboard CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
--520KB of Static Random-Access Memory, and 4MB of on-board Flash memory
--Castellated module allows soldering direct to carrier boards
--USB 1.1 with device and host support
--Low-power sleep and dormant modes
--Drag-and-drop programming using mass storage over USB

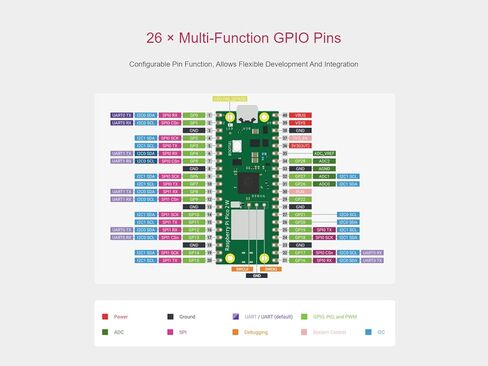

--26 × multi-function GPIO pins
--2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
--Temperature sensor
--12 × Programmable I/O (PIO) state machines for custom peripheral support

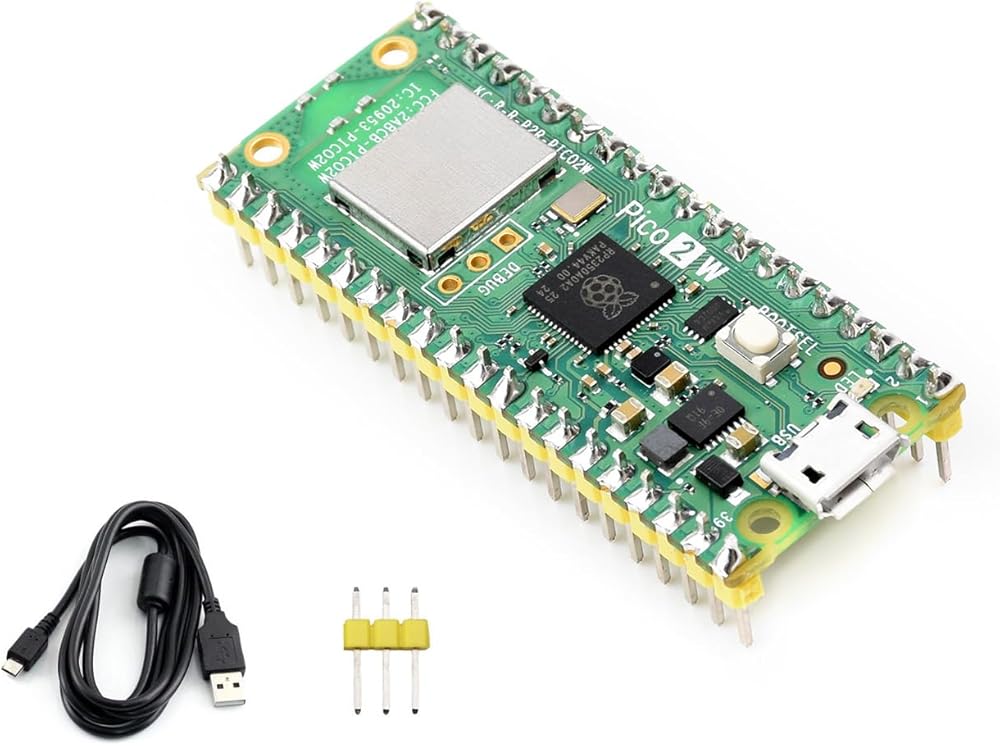

Package Content
Pico 2 W with pre-soldered header (mono) x1
1*3PIN yellow pin header x1
USB-A to micro USB cable ~1.2m x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
