waveshare ESP32-S3 7inch Display Screen Development Board 800×480 Resolution 7 inch 65K RGB LCD Disply,Supports WiFi & Bluetooth

KWD 17

Brand
waveshare
Weight
290 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

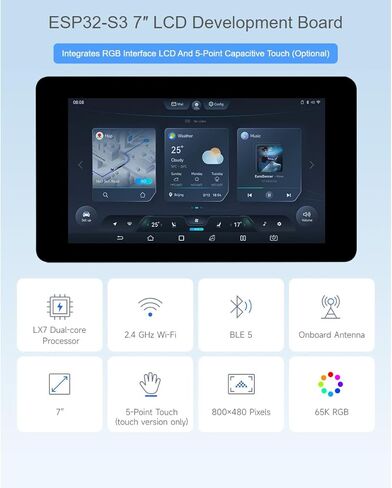

  • ESP32-S3 7″ LCD Development Board.Integrates RGB Interface LCD.

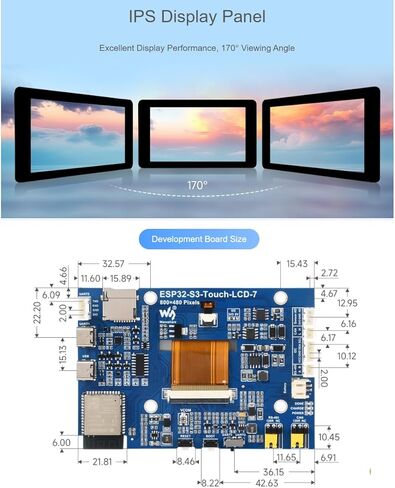

  • IPS Display PaneIPS Display Panel.Excellent Display Performance, 170° Viewing Angle
  • 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

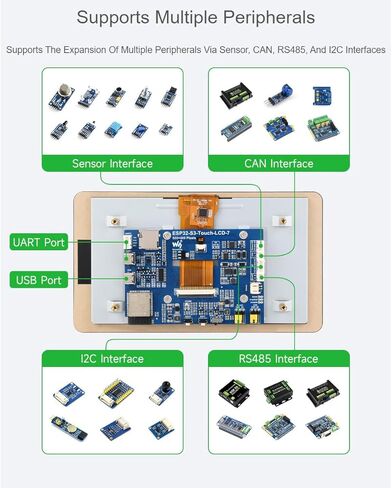

  • Supports Multiple Peripherals.Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces

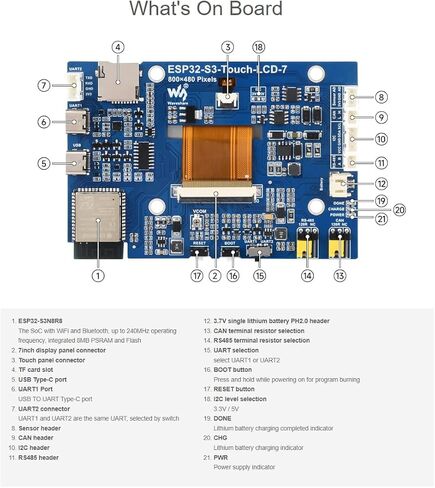

  • Built-in 512KB SRAM and 384KB ROM, with onboard 8MB Flash and 8MB PSRAM..Onboard CAN, RS485, I2C interface, Micro SD card slot and so on, integrates full-speed USB serial port.

Description

Overview
ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi &
Bluetooth, With Onboard Antenna

Introduction
This 7 inch screen is a low-cost, high-performance microcontroller development board designed by Waveshare. It features 2.4GHz WiFi and BLE 5,
integrates large Flash storage and PSRAM, and a 7-inch capacitive touch LCD screen. Support running GUI interface demos such as LVGL. It also has

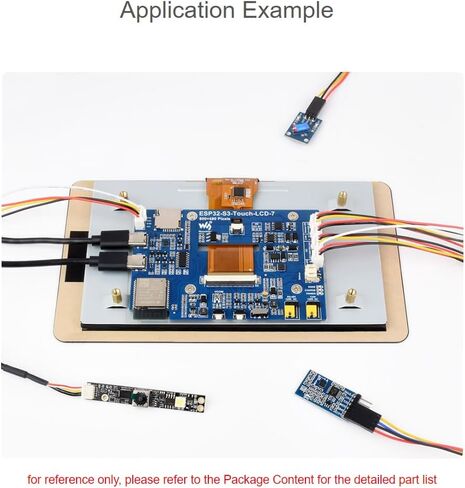

multiple external peripheral interfaces (such as CAN, I2C, RS485, and Sensor) for developing applications such HMI on ESP32-S3. With various
functions and interfaces, it is suitable for power requirements in IoT, mobile devices, wearable electronics, and smart home applications.

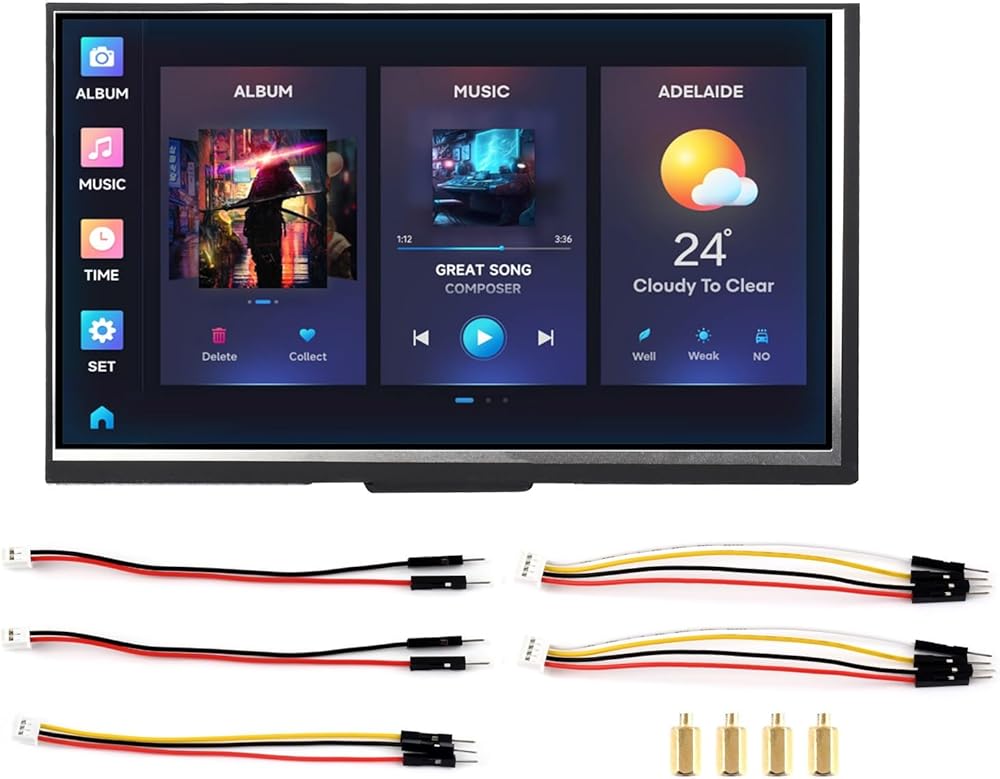

Package Content
ESP32-S3 7inch Screen x1
HY2.0 2P to 2PIN male cable 10cm ×2
HY2.0 3P to 3PIN male cable 10cm ×1
HY2.0 4P to 4PIN male cable 10cm ×2
Screws pack x1

FAQ
1.This LCD CAN reception failure?
① Restart the COM port in UCANV2.0.exe and press the ESP32-S3-Touch-LCD-7 reset button multiple times.
② Uncheck DTR and RTS in the serial port debugging assistant.

2.This LCD shows no response after uploading an Arduino demo for RGB screen displaying?
If there's no screen response after programming the code, check whether the correct configurations are set in Arduino IDE -> Tools: Choose the corresponding
Flash (8MB) and enable PSRAM (8MB OPI).

3.This LCD fails to compile an Arduino demo for the RGB screen and shows errors?
Check if the ESP32-S3-Touch-LCD-7_libraries is installed. Please refer to installation steps.
