DDR5 8GB RAM 256GB SSD Alder Lake N100

KWD 118.500
Brand
Healuck
Weight
1 kg
SizeDDR5 8GB RAM 256GB SSD
StyleAlder Lake N100
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 12th Gen Low-Power CPU: This fanless mini PC features Alder Lake N100 processor (4 cores 4 threads, 6M cache, up to 3.4GHz, 6W TDP) with UHD Graphics, Compared to the Celeron N5105/N5095, the performance is improved by 20%, resulting in a faster and smoother experience. Support Win11 Pro, Linux, Ubuntu

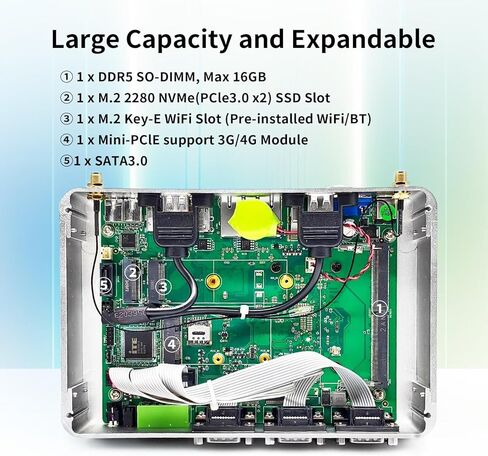

  • High-Speed LAN & Storage Expansion: This industrial mini PC is equipped with dual RJ45 i226V 2.5Gbit Ethernet ports, can maintain stable and high-speed transmission speeds. 1x DDR5 SODIMM memory slots, up to 16GB, 1x M.2 2280 NVMe(PCIe3.0x2) SSD slots, 1x SATA 3.0 port (2.5 inch HDD/SSD). You have the flexibility to expand your storage space

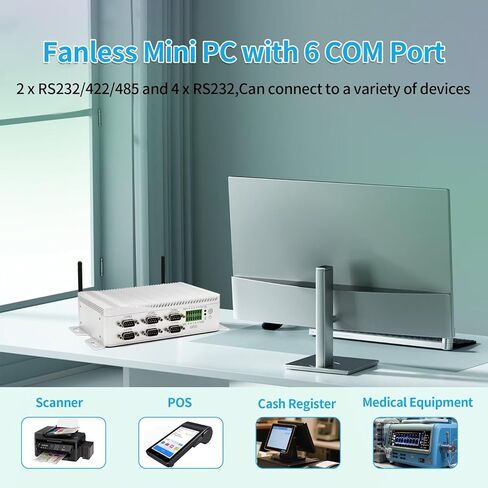

  • 6 x DB9 COM Port: Featuring 6 x Iudustrial COM Port (all support RS232, 2 of which support RS485/RS422), multi-protocol compatibility with flexible adaptation. Supports connecting to barcode scanners, CNC machines, temperature controllers and other industrial devices for centralized control. Native recognition on Win/Linux systems—no additional drivers required

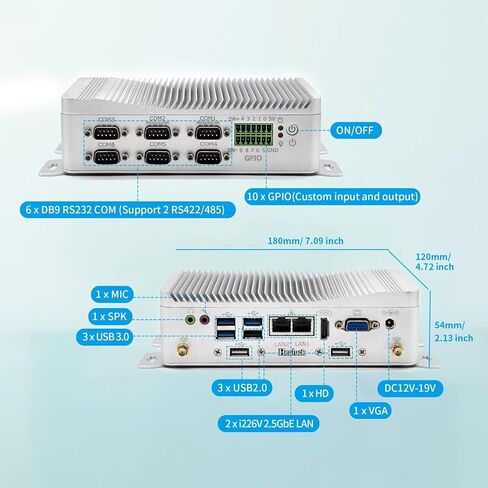

  • Rich External Interfaces: Embedded industrial computer designed with 1x VGA, 1x HD, 3x USB 3.0, 3x USB 2.0, 1x SPK, 1x MIC, 1x 12V-19V DC input, 1x power button, 10x GPIO (General-Purpose Input/Output), 1x M.2 Key-E slot (Pre-installed Wi-Fi & BT), 1x Mini-PCIe slot (Full-size, with SIM card slot, Supports 3G/4G modules, Wi-Fi & BT)
  • Small and Fanless Design: The industrial mini-pc size is 180*120*54mm(7.09*4.72*2.13 in), weight 1.0 kg(2.20lb), it is very small and it will not take too much space on the desktop. All-metal fanless case with passive cooling. Efficient heat dissipation, silent operation. More energy-efficient than traditional desktops, engineered for 24/7 continuous operation

Description

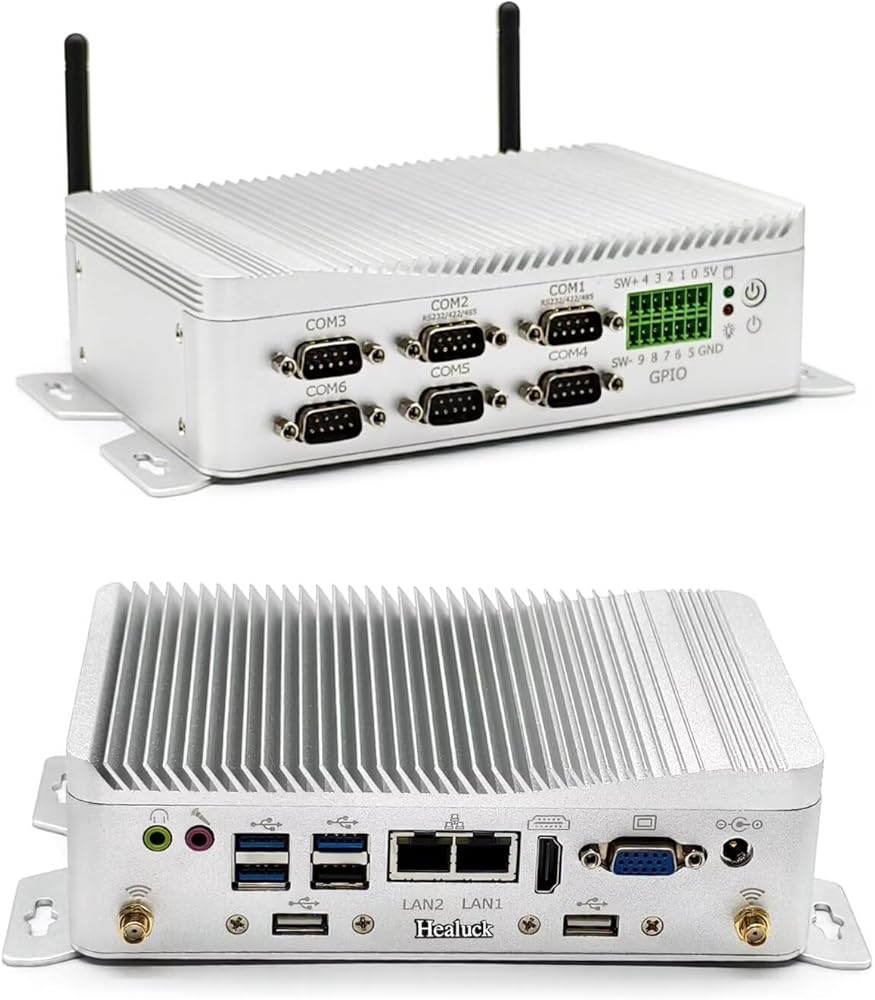

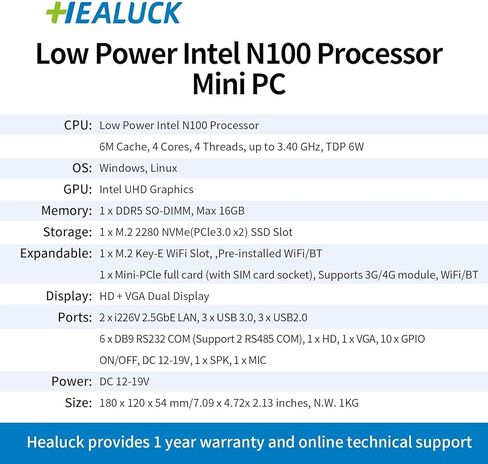

Healuck Dual LAN 6 COM Fanless Industrial Mini PC
CPU: Alder Lake N100, 4 cores, 4 threads, 6MB cache, base TDP 6W, up to 3.4 GHz)
GPU: UHD Graphics(750 MHz)
System: Win 11 Pro
LAN Port: 2x 2.5Gbe RJ45 i226V LAN
COM Port: 6 x DB9 COM Port (all support RS232, 2 of which support RS485/RS422)
RAM: DDR5 SO-DIMM 4800 MHz RAM slots (up to 16GB). Note: On the first startup, the computer may take 5–10 minutes to recognize the RAM
SSD: 1x M.2 NVMe SSD slots, 1x SATA 3.0 port (2.5 inch HDD/SSD)
Display: 1x HD, 1x VGA, dual display, up to 4K@60HZ
Feature: Supports Auto Power On, Wake-on-LAN, PXE
Operating System: Supports Win, Linux, Ubuntu OS
Other I/O: 3x USB 3.0, 3x USB 2.0, 1x Power Button, 1x SPK, 1x MIC, 1x DC 12-19V power input, 10x GPIO, 1x M.2 Key-E slot, 1x Mini-PCIe slot
PC case: aluminum alloy
Working Temperature: -20°c~+60°c
Storage Temperature: -30°C~+70°C
Storage Humidity: 10%~90%, 30°C, non-condensing
Size: 180 x 120 x 54 mm (7.09 x 4.72 x 2.13 in), 1.0 kg (2.20 lb)
Packing List: 1x Mini PC, 1x Power Adapter, 2 x Antennas, Phoenix Terminal Block, Screws
