DDR4 8GB RAM 128GB SSD Core i5 8350U

KWD 213.500
Brand
Healuck
Weight
1.9 kg
SizeDDR4 8GB RAM 128GB SSD
StyleCore i5 8350U
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Core 8th Low Power CPU: The industrial mini pc is equipped with Core i5 8350U(4 Core 8 threads, up to 3.6GHz, 6M Cache, 15W TDP, UHD Graphics 620), pre-installed Win 11 Pro OS, Compatible with Linux, Ubuntu, WES 7 and etc, Support Auto Power On, RTC Wake, Wake On Lan, PXE Boot etc. Support 7x24 stable running

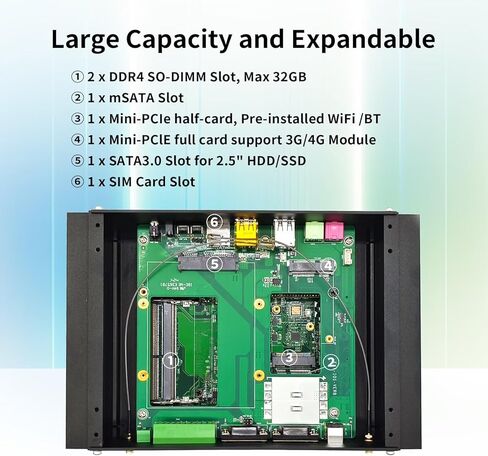

  • Storage Expansion and Connectivity: This fanless mini computer features dual DDR4 RAM SODIMM slots for up to 32GB memory, 1x mSATA SSD slot, 1x SATA 3.0 slot for 2.5 inch HDD/SSD, 1x Mini-PCIe half card and pre-installed WIFI/BT, 1x Mini-PCIe full card supports 3G/4G modules, 1x SIM card slot, Dual antenna ports optimize wireless signal stability

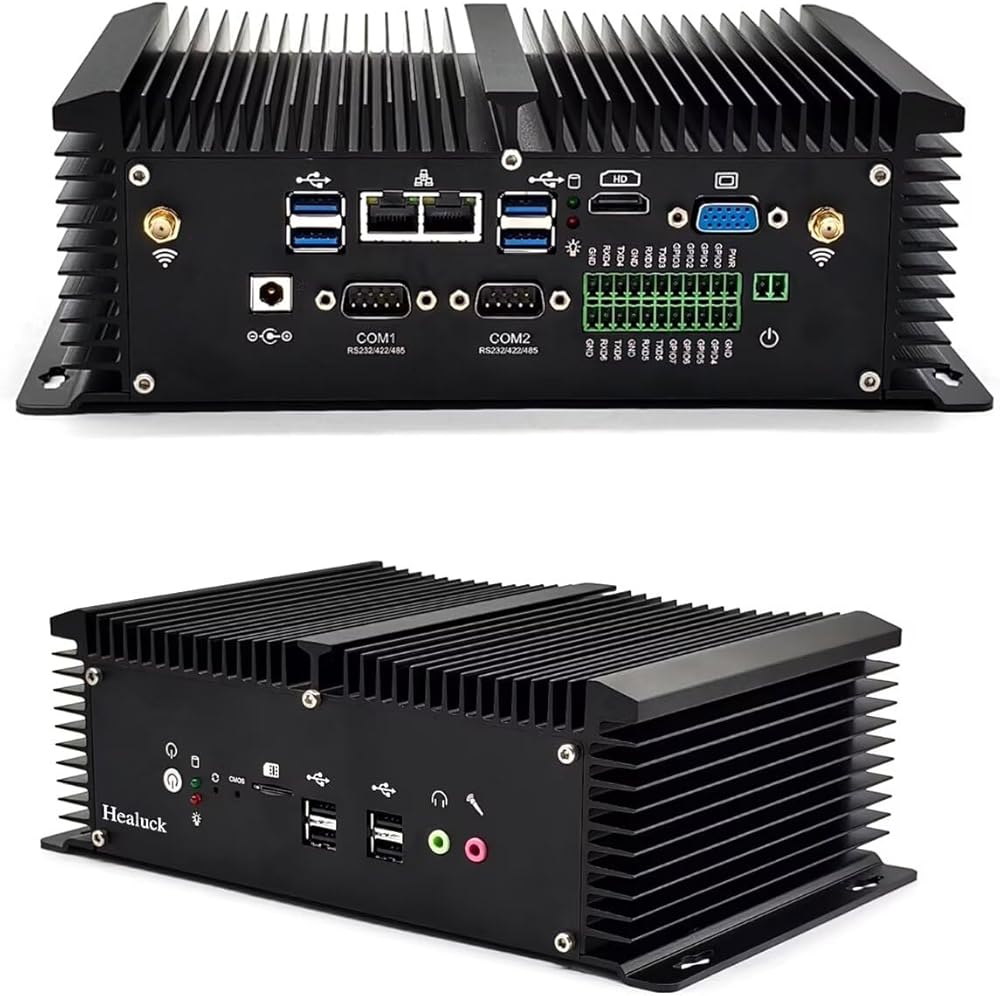

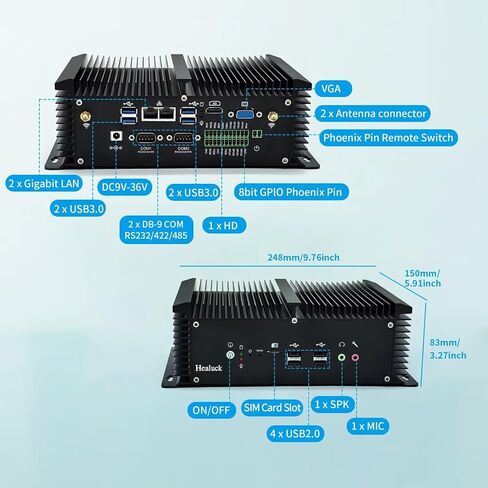

  • Rich External Interfaces: Embedded industrial computer designed with 1x VGA, 1x HD, 4x USB 3.0, 4x USB 2.0, 1x MIC, 1x SPK, 1x DC Power input(9-36V), 1x Power Button, 1x Reset Button, 1x Clear CMOS button, 1 x Phoenix Terminal Remote Switch Interface, 1x Power LED, 1x HDD LED
  • GPIO & 2x COM & 2x Lan: Fanless industrial mini pc with 1x 8-bit GPIO Phoenix Terminal can be assigned input/output by software. 2x DB-9 COM ports(RS-232/422/485), used to connect an external modem, plotter or serial printer. 2x RJ45 Gigabit Ethernet ports can directly link wired network. These interfaces are used in industrial applications

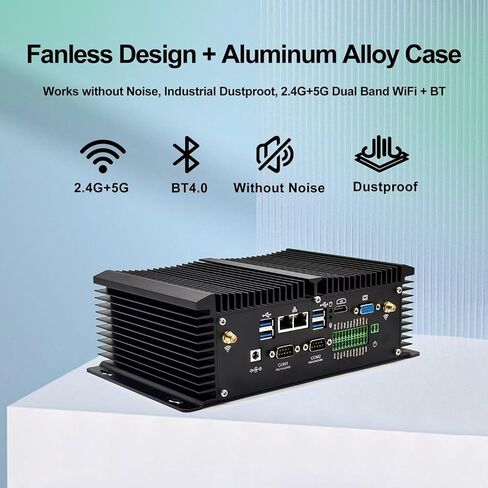

  • Professional Industrial Design: The rugged industrial mini-pc size is 248*150*83mm(9.76*5.91*3.27 in), weight 1.9 kg(4.19 lb), All-metal fanless case with passive efficient cooling, silent operation. Wide-voltage dc input (9-36V). WDT(1-255s programmable setting). Dual screen display supports synchronous or asynchronous modes. supports desktop and wall mount

Description

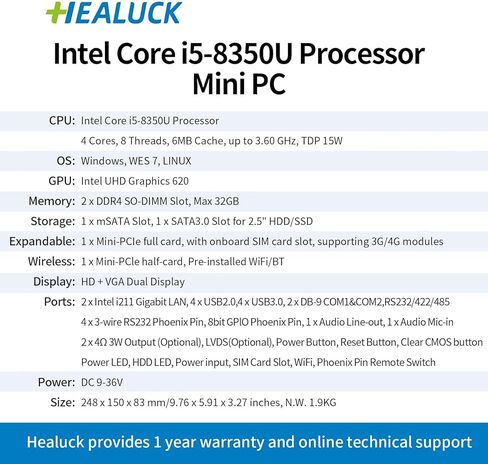

Healuck 8th Gen Core i5 8350U Fanless Industrial Mini PC
CPU: Core i5 8350U, 4 cores, 8 threads, 6MB cache, TDP 15W, up to 3.6 GHz)
GPU: UHD Graphics 620(300 MHz)
System: Win 11 Pro
LAN Port: 2x RJ45 i211-AT Gigabit LAN
COM Port: 2x DB9 COM Port (all support RS232/RS485/RS422)
RAM: Dual DDR4 SO-DIMM 2133 MHz RAM slots (up to 32GB). Note: On the first startup, the computer may take 5–10 minutes to recognize the RAM
SSD: 1x mSATA SSD slots, 1x SATA 3.0 port (2.5 inch HDD/SSD)

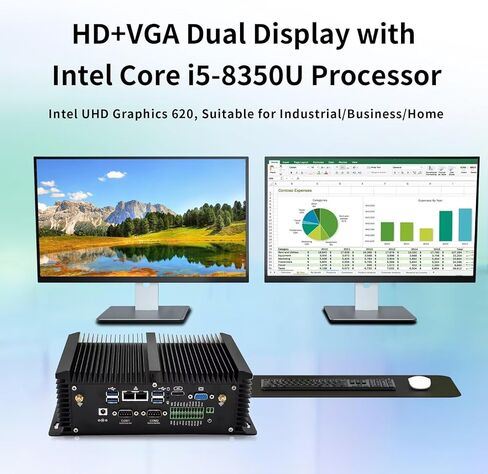

Display: 1x HD(4k@60Hz), 1x VGA(1080P), dual display supports synchronous or asynchronous modes
Feature: Supports Auto Power On, Wake-on-LAN, PXE boot, RTC wake, WDT(1-255s programmable setting)
Operating System: Supports Win, Linux, Ubuntu WES 7 OS
Other I/O: 1x 8-bit GPIO Phoenix Terminal, 4x USB 3.0, 4x USB 2.0, 1x SIM card slot, 1x Audio Line-out, 1x Audio Mic-in, 1x Phoenix Terminal Remote Switch Interface, 2x antenna ports, 1x Power Button, 1x Reset Button, 1x Clear CMOS button, 1x Power input, Mini-PCIe x 1 full card and 1 half card
PC case: aluminum alloy
Power: 9-36V Wide-voltage dc input
Working Temperature: -20°c~+70°c
Storage Temperature: -30°C~+70°C
Storage Humidity: 95%@40°C, non-condensing
Size: 248*150*83mm(9.76*5.91*3.27 in, 1.9 kg(4.19 lb)
Packing List: 1x Mini PC, 1x Power Adapter, 2 x Antennas, Phoenix Terminal Block, Screws
