Dual Gigabit Ethernet Mini-Computer Based on Raspberry Pi Compute Module 4, with CM4 Dual Gigabit Ethernet Base Board and Metal Case with Cooling Fan,ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces

KWD 33.500
Brand
waveshare
Weight
400 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Dual Gigabit ETH computer based on CM4: Designed for Raspberry Pi Compute Module 4 ,Waveshare CM4-DUAL-ETH-BASE inside, fast and easy to build a mini-computer

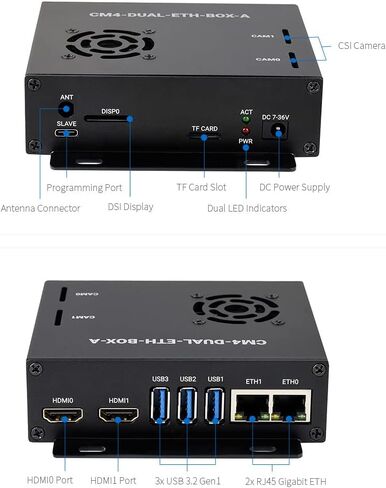

  • Rich interfaces:providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB
  • Precise cut-out with clear label:each cut-out is completely aligned with the connector

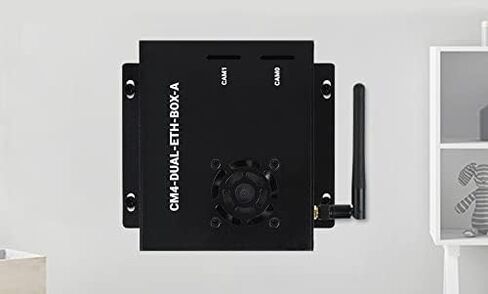

  • Cooling fan included:comes with cooling fan, combined with the airflow vent, better heat dissipation. Wall Mount Support：Wall mount holes on two sides, handy for mounting.

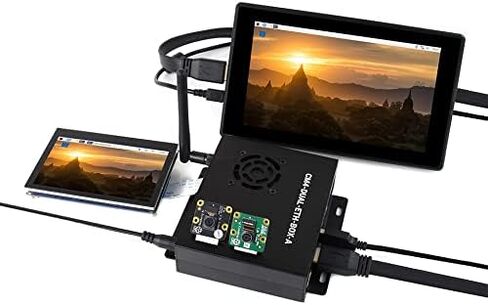

  • Application：Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

Description

Overview

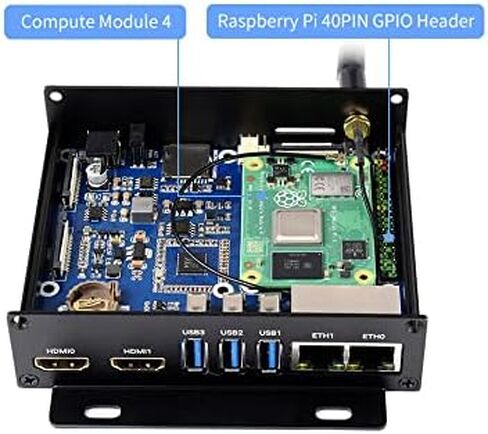

Dual Gigabit Ethernet Mini-computer based on Raspberry Pi Compute Module 4 (CM4 is NOT included), Waveshare CM4-DUAL-ETH-BASE inside, fast and easy to build a mini-computer

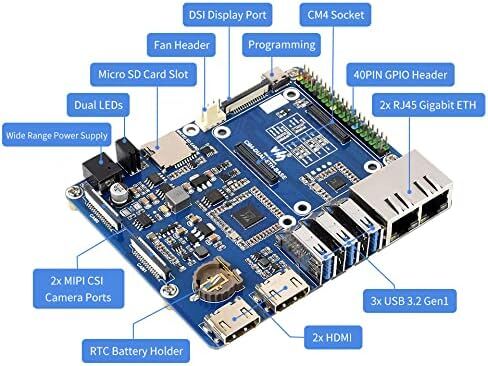

CM4-DUAL-ETH-BASE Board Specifications
CM4 socket: suitable for all variants of Compute Module 4
Ethernet: Dual Gigabit Ethernet RJ45
USB: USB 3.2 Gen1 x 3
Pin header: 40PIN GPIO header x 1
HDMI: HDMI x 2, supports 4K 30fps output
DSI display: MIPI DSI display port x 1, 15pin 1.0mm FPC connector
CSI camera: MIPI CSI-2 camera port x 2, 15pin 1.0mm FPC connector
Power input: 7V-36V
Fan : 5V/12V, allows speed adjustment and measurement
RTC : Real-time clock with battery socket and ability to wake Compute Module 4
SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Package Content
CM4-DUAL-ETH-BASE Board x1
Metal case (top and bottom) x1
Fan-4010-PWM-12V x1
Screwdriver x1
Screws pack x1
12V 2A power adapter x1
