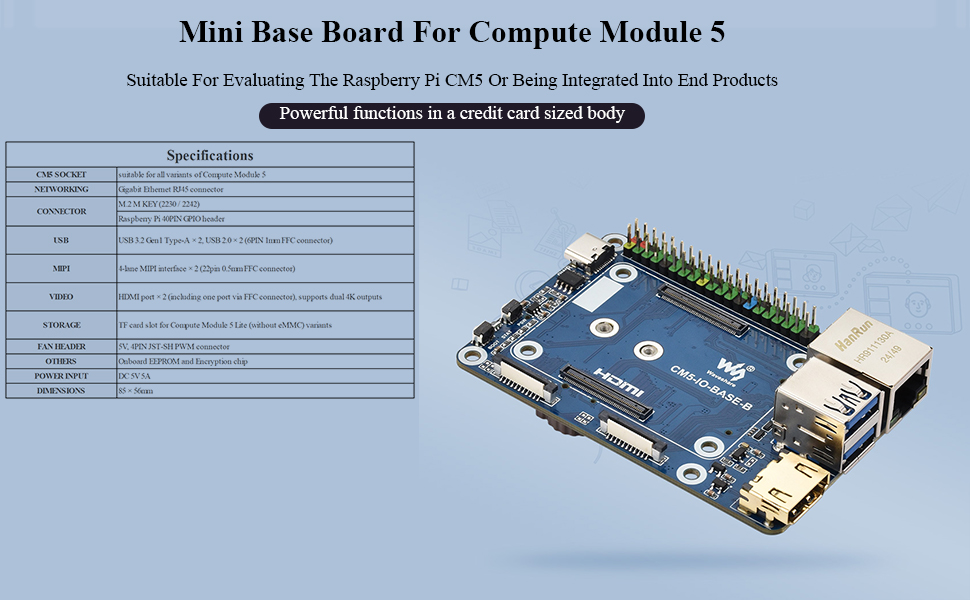

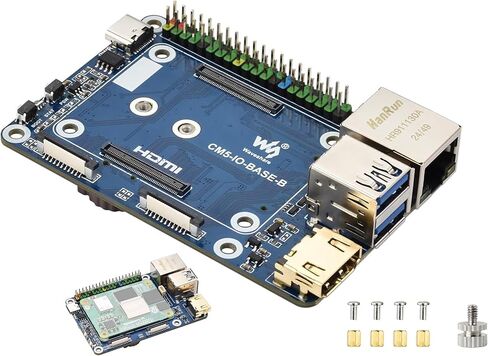

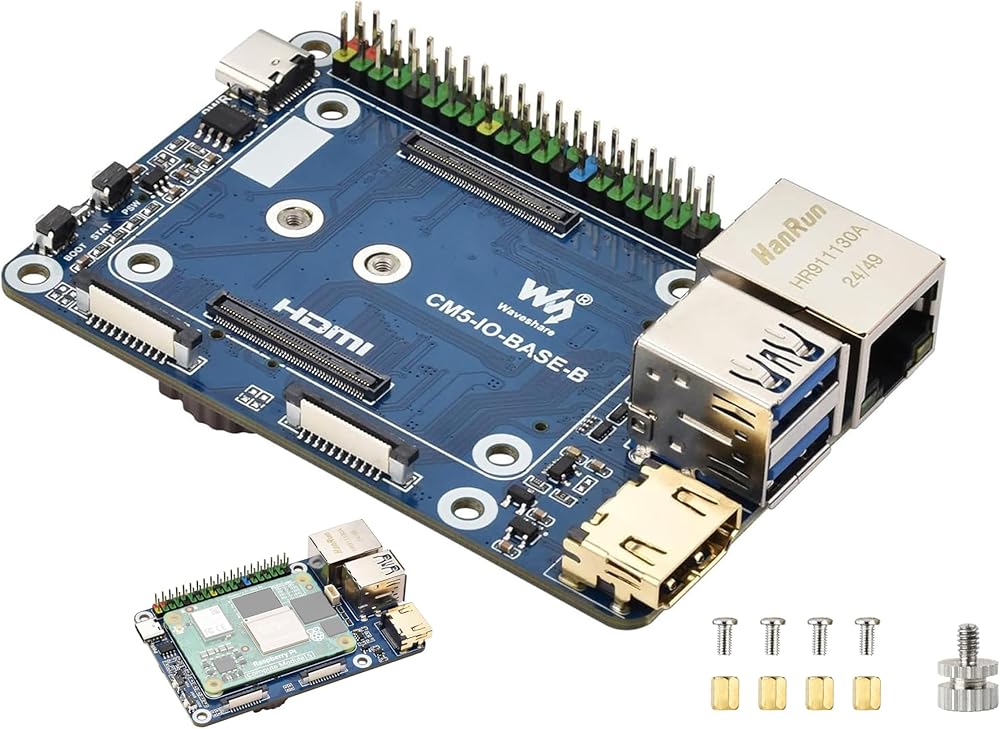

Mini Base Board (B) Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip, Compact Design with 4xUSB, Color-Coded 40PIN GPIO Header, 2xMIPI, M.2 M Key PCIe Interfaces,etc
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

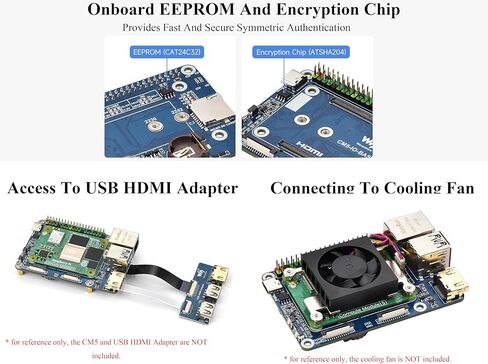

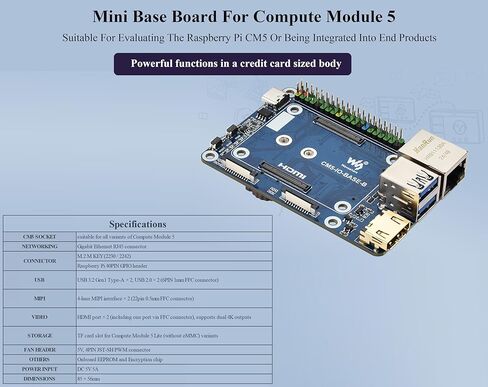

Mini Base Board (B) for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products. Onboard EEPROM And Encryption Chip

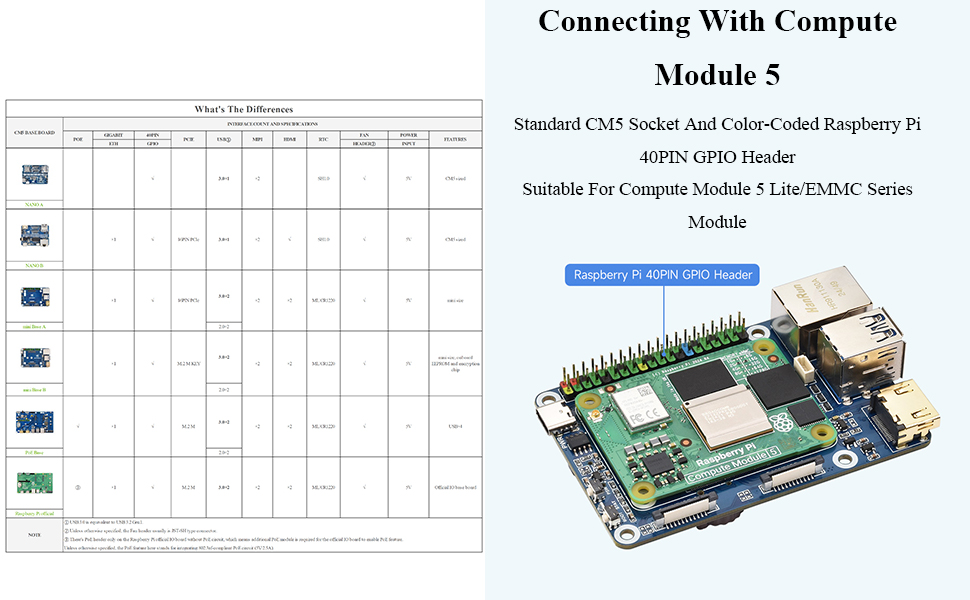

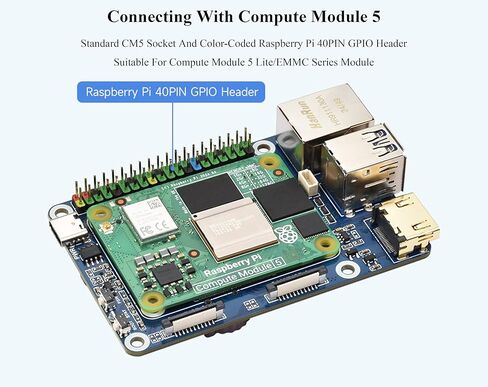

Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module

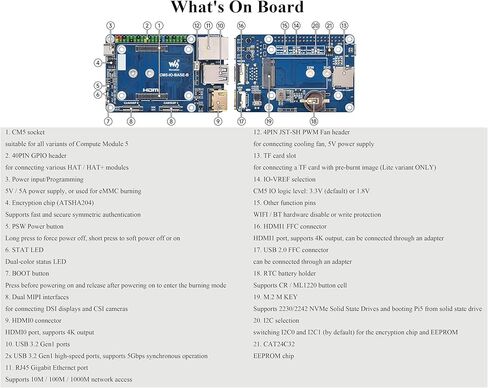

With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users
with Gigabit Ethernet RJ45 connector for Networking. M.2 M KEY: Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector)
Do not plug or unplug any device other than USB and HDMI when the device is powered on. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized
Comes with Online Tutorial Usage Guide and Precautions , Please check: n9.cl/dxten
