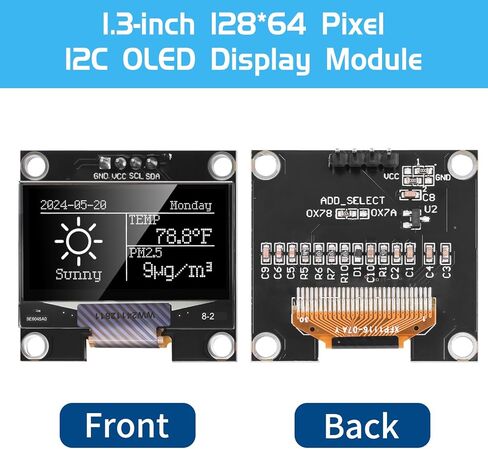

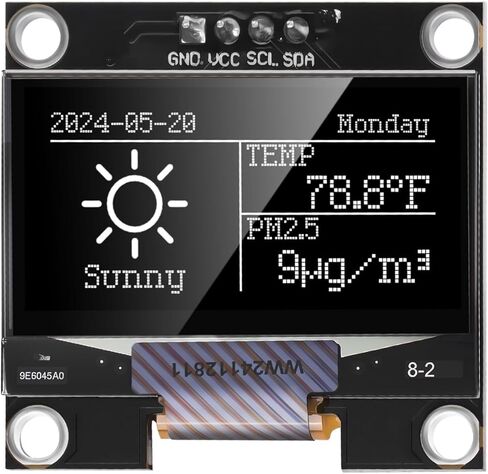

1pcs 1.3 Inch I2C IIC OLED Display Module 128 x 64 Pixel SSD1106 Self-Luminous Display Board for Arduino/Raspberry Pi/ESP32 (Pre-Soldered, White)

KWD 3

Brand
YELUFT
Weight
31 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

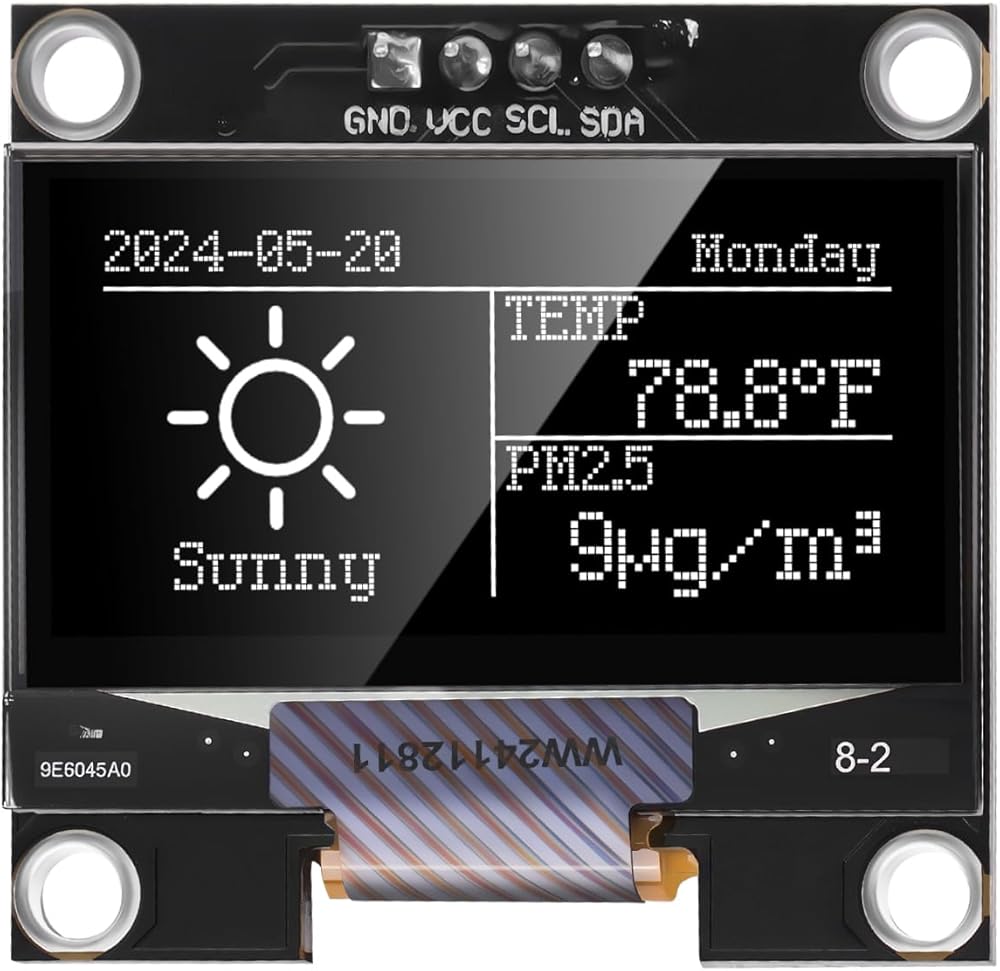

  • 128 x 64 Pixel: Needn't backlight, these OLED module can self-luminous. It has super high contrast, bright and crisp dots, viewing angle is greater than 160 degree, even tiny fonts quite readable
  • No Embedded Fonts: There are no embedded fonts inside these Arduino display module, you can create the fonts through font generation software

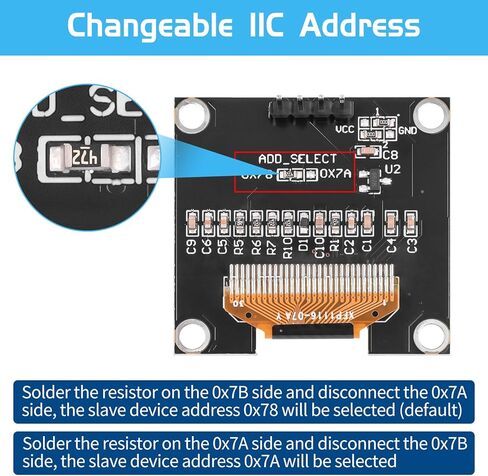

  • Changeable IIC Address: Solder the resistor to the 0x7B side on the back and disconnect the 0x7A side, then the 0x7B slave device address will be selected (default); Solder the resistor on the 0x7A side and disconnect the 0x7B side, then the 0x7A slave device address will be selected; when switches the IIC slave address of the hardware, the software should be modified accordingly

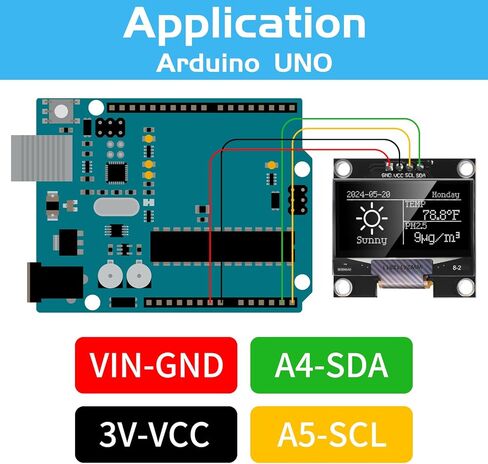

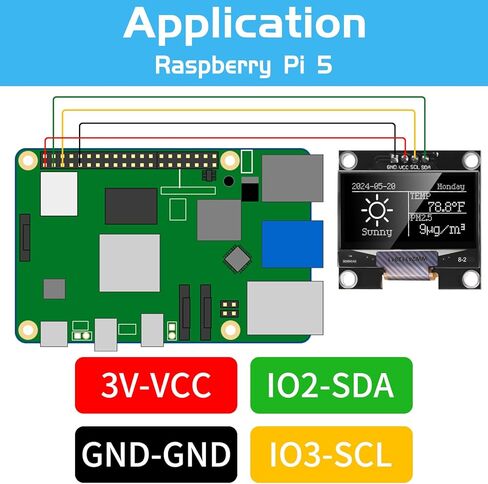

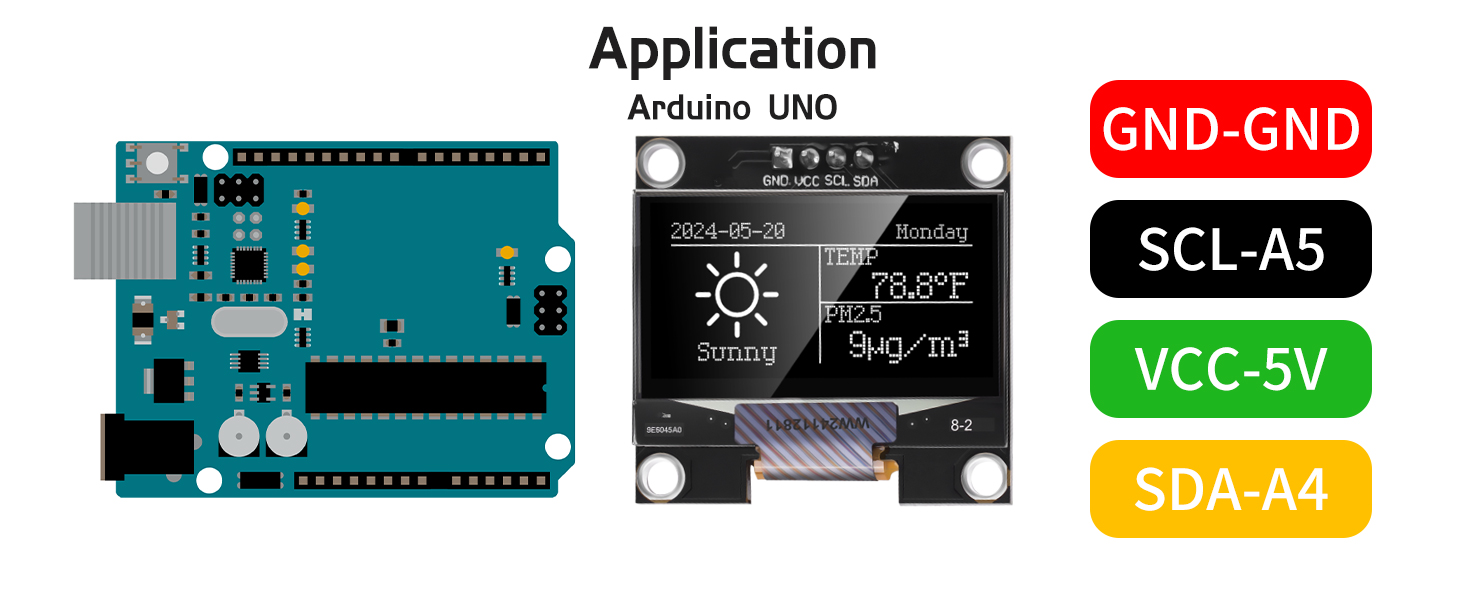

  • Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, MSP430, ESP32 development board and so on. Showing graphical & textual information directly of your machines

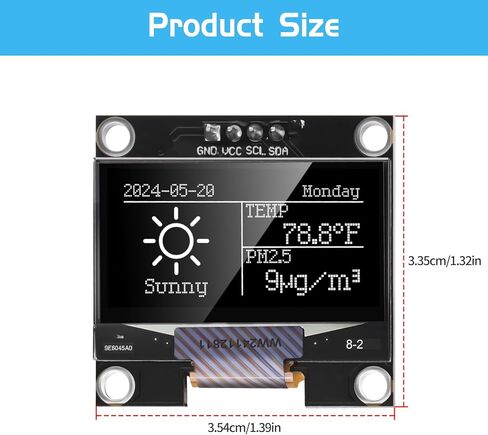

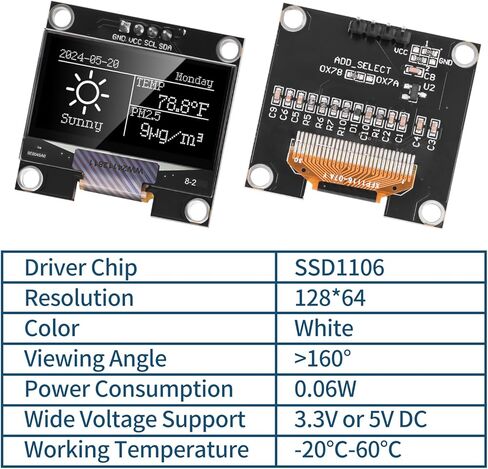

  • Parameters: Screen Size: 1.3-inch; Driver Chip: SSD1106; Resolution: 128*64; Color: White; Viewing Angle: greater than 160 degree; Power Consumption: 0.06W; Voltage: 3.3V or 5V DC; Working Temperature: -20 degree Celsius - 60 degree Celsius
