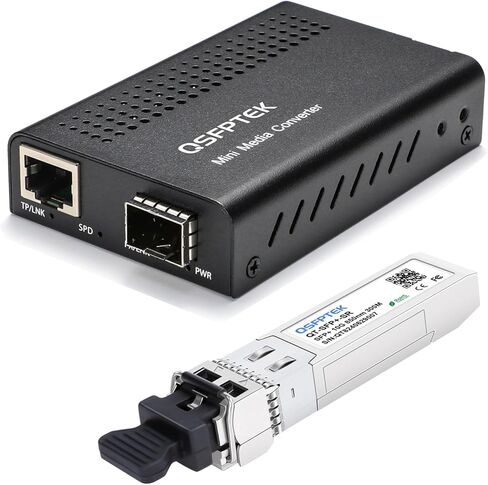

10G Mini Media Coverter, 10 Gigabit Fiber to 10Gb Copper UTP Media Converter with 10Gb SFP+ SR Transceiver, 10Gbase-SR SFP+ Ethernet Module

KWD 61
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Supporting Auto-MDI/MDIX..10G base-T RJ-45 UTP port will autoadapt (autosense) to 1000Base-T, 2.5G Base-T, 5G Base-T and 10G Base-T connection at user side, but fiber port – slot accepts only 10G SFP+ (10 Gigabit) SFP+ transceivers only.
  • Support IEEE 802.3x Flow Control, LFP/ALS Function & FX Speed are Optional. Support 1U 12 Slots Chassis & Stand-alone Use. Equipped with LED Indicates Diagnostic & DIP-switch Configurations Status
  • Wide Compatible: for Cisco SFP-10G-SR, Meraki MA-SFP-10GB-SR, Ubiquiti UniFi UF-MM-10G, Mikrotik, Netgear, D-Link, TP-Link, Fortinet, Supermicro, Linksys, ZyXEL and Other Open Equipment with 10G SFP+ Port
  • Low Power Consumption: 10Gb SFP transceiver designed for energy efficiency, less than 1.05watt Power Consumption; Low EMI and advanced ESD protection

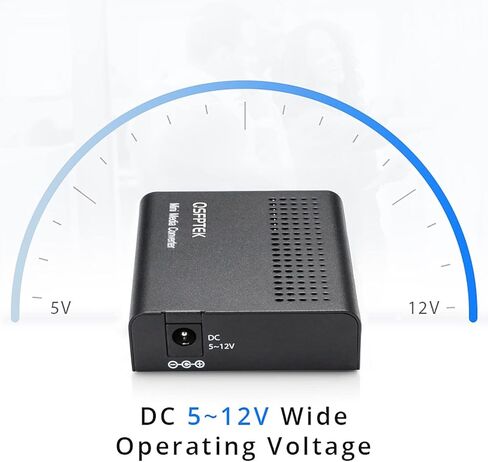

  • Mini Unmanaged 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10Gigabit Ethernet Media Converter, AC 100V~240V or DC 5~12V optional

Description

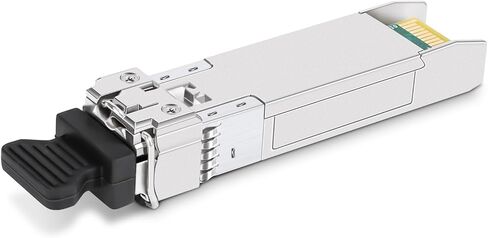

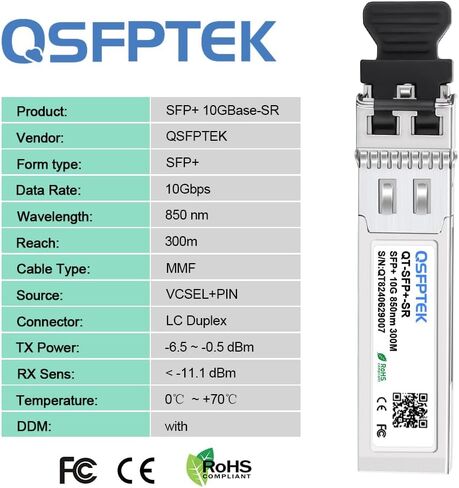

10GBASE-SR SFP+ to LC Optical 10 Gigabit Ethernet Fiber module, 10GbE Multimode SFP+ transceiver, Duplex LC connector, 850nm, DDM, up to 300m.
10gbase-sr sfp transceiver compatible with Cisco SFP-10G-SR, Meraki MA-SFP-10GB-SR, Ubiquiti UniFi UF-MM-10G, Fortinet, Mikrotik, Netgear, D-Link, Supermicro, TP-Link and Other Open Switches.
Used for network switch, server, or NIC with SFP+ to a 10 Gigabit fiber channel network with multimode LC for Network Attached Storage(NAS), Storage Area Network(SAN), and High Performance Computing(HPC) applications.
1x 10GBase-T to 1x 10GBase-X 1RJ45 and 1SFP+ Slots 10Gigabit Fiber Media Converter(10G, RJ45 to SFP+, AC 100V~240V or DC 5~12V）
Adpoted Optical - Electrical - Optical conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration.
On the existing network infrastructure, it can quickly improve the communication capacity in a cost-effective way, expand the bandwidth, while using ultra low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
The media converters are compatible with a wide range of SFP/SFP+ transceivers, such as 1000BASE SFP, 10G BIDI SFP, 10G CWDM SFP, 10G DWDM SFP+ transceiver modules, etc.
