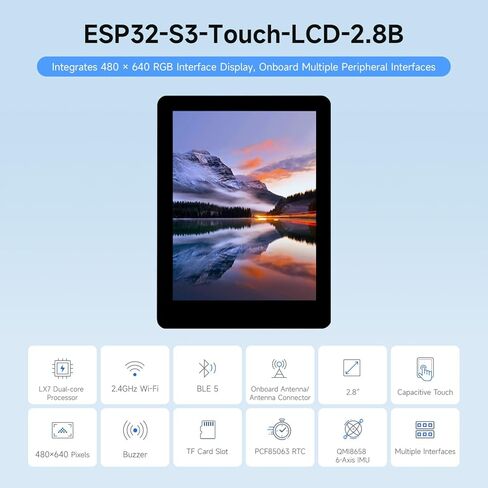

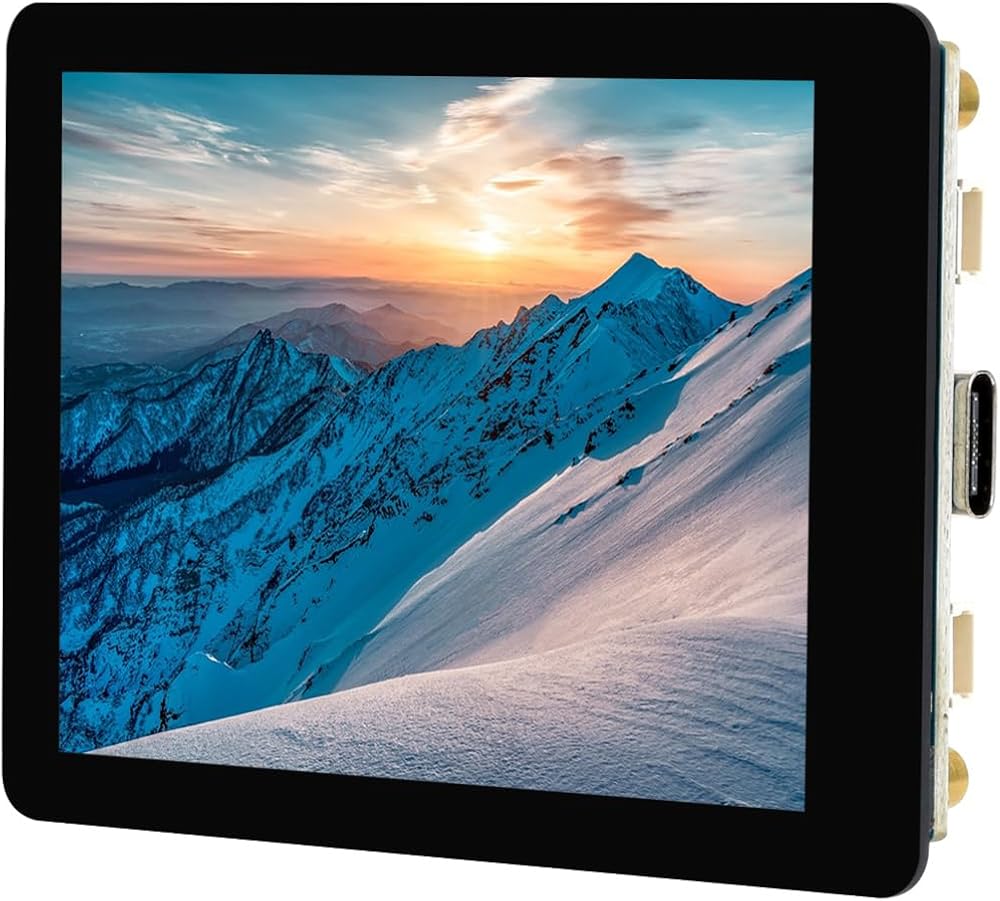

Waveshare ESP32-S3 2.8inch Display Development Board, 480×640, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports Wi-Fi & BLT, ESP32 with Display, with Touch Function
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

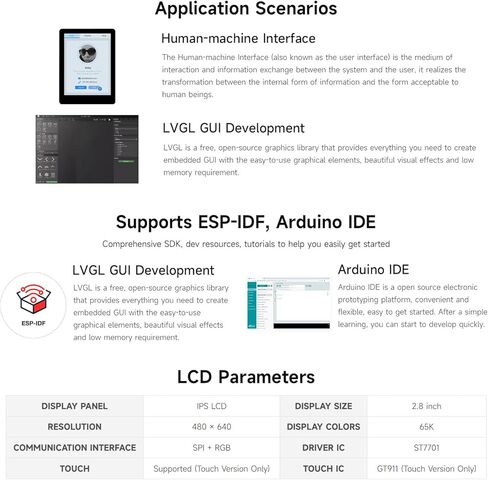

This product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch LCD display (optional for touch function) can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 2.8inch LCD display, 480×640 resolution

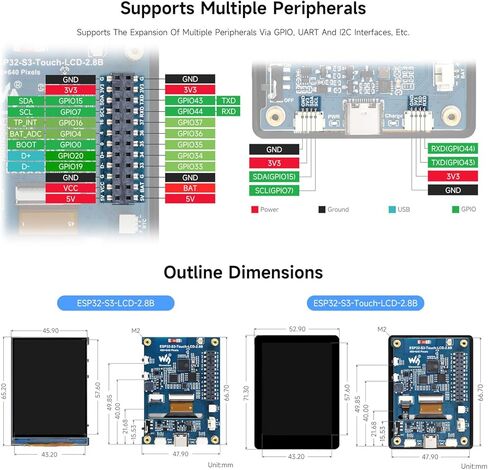

Supports touch control via I2C interface, with interrupt support (for touch version only) Adapting UART, I2C and some IO interfaces, integrates full-speed USB port

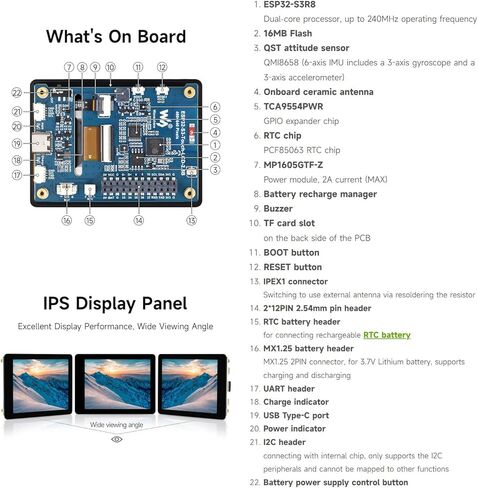

Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
