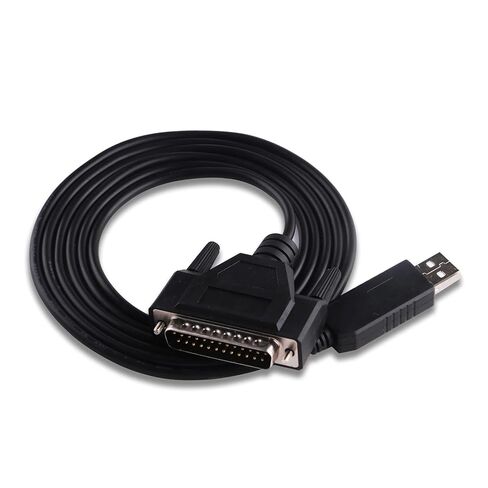

USB to RS232 DB25 Serial Adapter Cable for Fanuc CNC DNCLINK Configuration Copy Setting
Length :1.8M /5M Optional
Color Black
Internal Chip: PL2303
Cable Detail: 26AWG ; Pure Copper ; 4.0mm OD; P-VC Jacket
The operating systems for which drivers are available for the PL2303:
- XP/ Vista/7/8/8.1/10/11
- macOS X (10.3 and newer)
- Various distributions of Linux with USB support
- And-roid devices with USB host support
- CE:
- Versions of CE with USB support
- Versions of Mobile with USB support
- Embedded Compact:
Versions of Embedded Compact with USB support
The PL2303 drivers allow the chip to be recognized as a virtual COM port on the respective operating systems. This enables software to communicate with the connected device using standard serial communication protocols.
As with any hardware, it's important to ensure you're using the correct and up-to-date drivers for your specific operating system. The availability of drivers and compatibility might vary based on the version of the operating system you're using. Always refer to the official Technology website or documentation for the most accurate and up-to-date information regarding driver support for the PL2303 on various operating systems.
To download the PL2303 USB-to-Serial driver, you can follow these steps:
Visit Website:
Go to the official website of Technology Inc.: https://www.pro-lific.com.tw/US/ShowProduct.aspx?p_id=225&pcid41
This is the official page for PL2303 drivers.
The PL2303 Chip Features:
- Full Compliant with USB Specification v2.0 (Full-Speed)
- On-chip USB 1.1 transceiver and 5V to 3.3V regulator
- On-chip 96MHz Clock Generator
- Built-in RS232 Transceiver
- Follow EIA/TIA-232F standards
- Full UART RS232 interface pins (TXD, RXD, RTS,
CTS, DTR, DSR, DCD, and RI)
- Flexible baud rate support up to 1Mbps
- Three RS232 Drivers design
- Five RS232 Receivers (always a
