ROLINE 19 Inch Wall Housing Pro 7 HE 600 x 600 W x D Two-Piece Swivel Grey

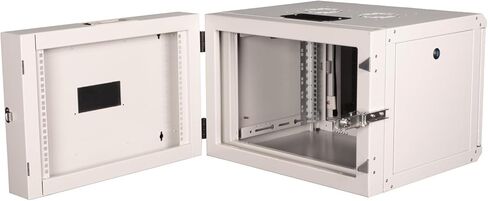

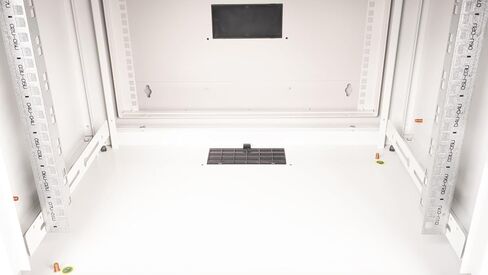

The ROLINE Pro Series wall enclosures are specially designed for flexible network cabling. Thanks to the integrated hinge in the rear frame, the case can be folded to the side if required. Each cabinet has a sliding cable inlet with foam rubber seal in the roof. Back panel and base are fitted with punched cable inlets and plastic covers. The back frame is equipped with brush strips at the top and bottom. To install a fan module, the roof chassis is already equipped with a matching cut-out. Inside there are galvanised 19" profile rails, which can be read in both directions and adjustable in depth. The rear frame also has a 19 inch holes. Each cabinet is made of a robust steel construction made of sheet steel up to 1.5 mm thick and is electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels as well as a lockable and removable front door improve accessibility. The door hinge can be changed.
The wall mounting takes place in two simple steps: the frame of the housing is mounted on the wall in the desired opening direction and then connected to the housing. Optionally, the wall housing of the ROLINE Pro series with levelling feet or wheels can also be used free-standing.

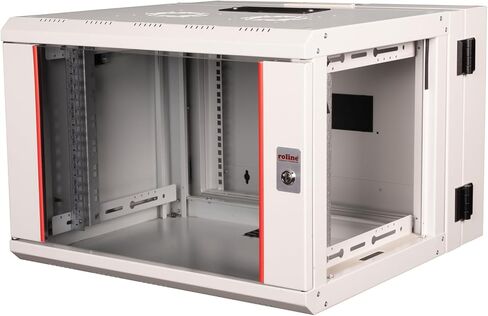

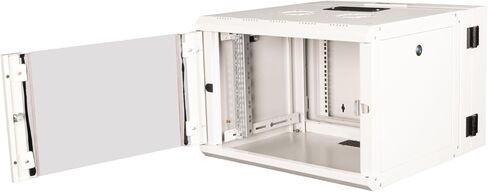

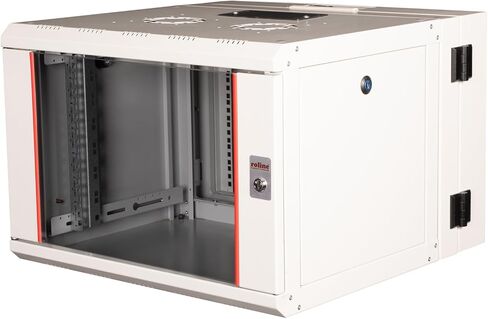

• Front door made of tempered glass, lockable.
• 1-point lock on the front door.

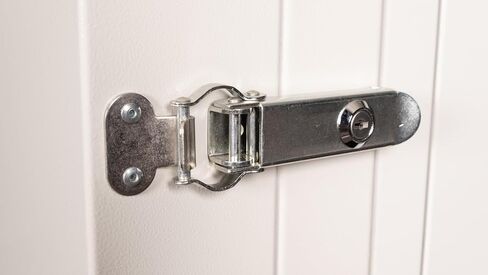

• Housing is connected to rear frame by separate lock
• Cable entry on the back and bottom.
• Side panels are lockable and removable.
• Roof with cut-out for fan modules.
• Ventilation slits for passive ventilation and ventilation.
• Includes mounting material
• IP protection class: IP20
