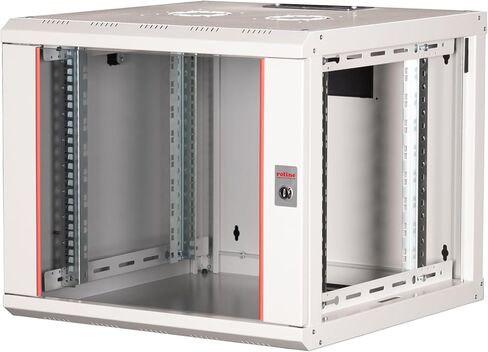

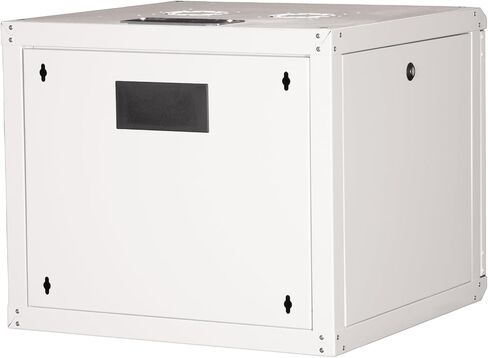

ROLINE 19 Inch Wall Housing Pro 9 HE 600 x 600 W x D Grey
The ROLINE Pro Series wall enclosures are specially designed for flexible network cabling. Each cabinet has a sliding cable entry in the roof with foam rubber seal. The back panel and base plate are equipped with punched cable inlets and plastic covers. The roof chassis offers a punched area to accommodate a fan module. Inside are two pairs of galvanised profile rails with height units of 483 mm (19 inches), which are additionally adjustable in depth. The robust steel constructions of the cabinets are made of up to 1.5 mm thick sheet steel and are available in grey (RAL 7035) or black (RAL 9005) powder-coated. The side walls and front door are modular lockable and removable, which improves accessibility. The wall mounting is done in two simple steps: first, the back panel is screwed to the wall and then connected to the housing. Optionally, levelling feet or castors can be used to use the cabinets freestanding.
• Load capacity: 100 kg.
• Front door made of tempered glass, lockable.
• 1-point lock on the front door.
• Side panels are lockable and removable.
• Cable entry on the back and bottom.
• Roof with cut-out for fan modules.
• Ventilation slits for passive ventilation and ventilation.
• Includes mounting material
• IP protection class: IP20
