Product Name: Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server MQTT PLC
Package inlcuded:

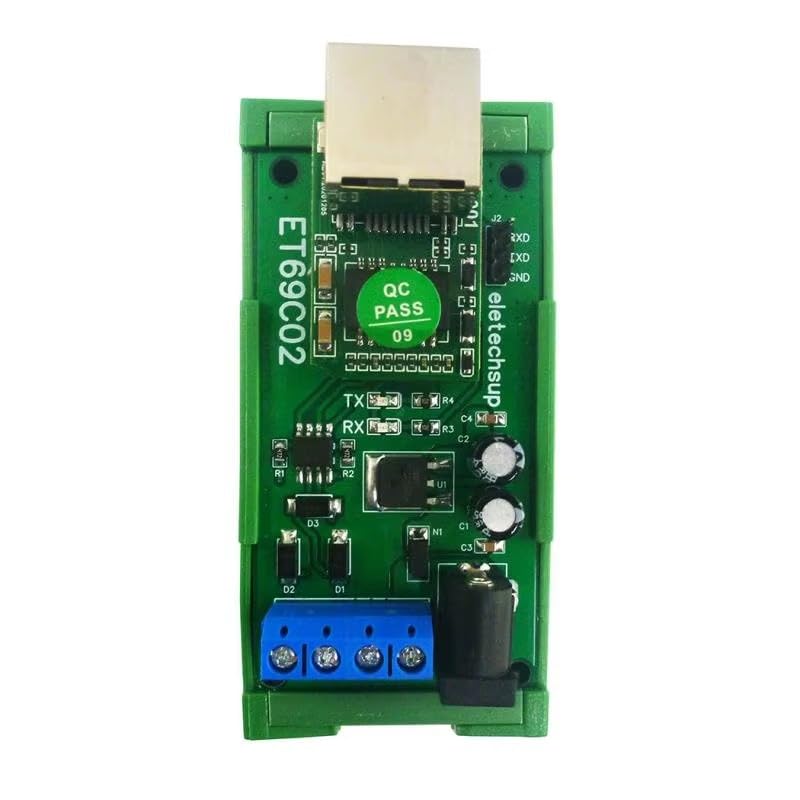

1PCS ET69C02 DC 12V Ethernet to RS485 Module
Description:
Working voltage : DC 12V (DC 6.5-25V)
Working current : 20-25mA
Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT
TVS anti-surge protection
The default baud rate is 9600BPS. The baud rate can be selected by WEB settings
1200 2400 4800 9600 19200 38400 57600 115200BPS
The parity can be none parity, even parity and odd parity
Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)
Weight: 24g(Only PCB Board);58g(with Din Rail Box)
For more information, please contact me
Application
Ethernet to RS485
Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
DIN rail Box parameters:
Product model: UM72
Color:
Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
