F1T-D2I USB RS232 Serial to DB9 Male Converter Adapter Cable with FT232RL Chipset for Win 7/8/10 Vista XP 2000 Linux
This cable is a USB to RS232 serial converter cables incorporating F1T-D2I FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols.
Material: P-V-C
Cable: UL2725 28AWG*1P+24AWG*2C+AEB, OD5.0
Color: Black
Cable length: 1M, other length can be made.

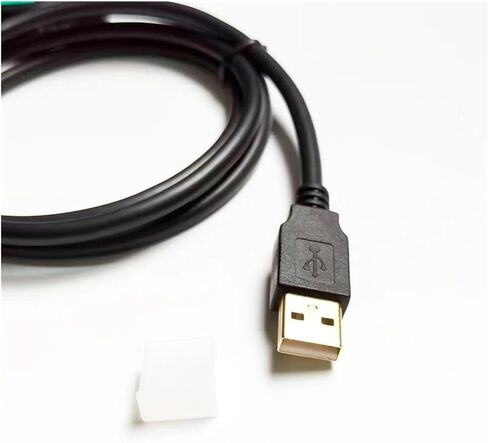

Connector A: USB 2.0 AM, plated shell, plated contacts
Connectot B: DB9 Male, plastic, plated shell
Chipset: F1T-D2I FT232RL
Level: RS232
Length: 100cm optional, other length can be customized
Customized and big order can be negotiable.
Standard Pinout: 1-DCD, 2-RXD, 3-TXD, 4-DSR, 5-GND, 6-DTR, 7-RTS, 8-CTS, 9-RI
Molding: P-V-C material, complaint
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
About F1T-D2I FT232RL
The FT232RL is a USB to serial UART interfac with the following advanced features:
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock genertion with no external crystal required plus optional clcok output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3Mbaud (RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmite buffer utilising buffer smoothing technology to allow for high data throughput.
F1T-D2I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
USB FTDIChip-ID feature.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / e
