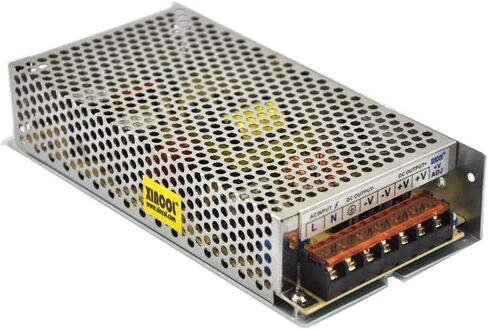

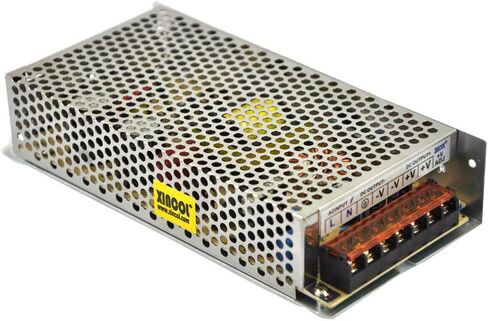

XINCOL Switched Mode Power Supplies(SMPS) are being designed with advanced current mode PWM technology, widely used in LED lighting, CCTV,Home Appliance, Instrumentation etc.
Technical Details:
Model: XC-600-12
Safety Appliance: FCC/CE/RoHS
Protection: Short circuit, Overload, Over Voltage, Over Temperature Protection
Input: AC110V/220V
Output: DC12V 50A
Output Power: 500W
Number of Output: +V x 3, -V x 3
Frequency: 50/60Hz
Working temperature:0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Shell Material: Metal case / Aluminum base Silver Tone
Size: 9.49 inchx4.84 inchx2.56 inch/241mmx123mmx65mm(L*W*H)
Net Weight:1540g
Connection L, N: AC power input
COM: DC power output
V: DC power output +
+V / ADJ: Adjust the output voltage (13%)
Package Contents: 1 x XINCOL LED Switching Power Supply 50A 600W
Note:
1. In USA, the voltage switch of the power supply should be set to 110/115. Setting the power supply voltage switch to the incorrect input voltage may damage the power supply
2.The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads
3.DO NOT let the unit work long hours over rated current! Work under 80% of rated currency
4.Dust the switcher out every 2 or 3 months if necessary
5.Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments.
6. Do not power the unit before wire connection and voltage adjustment
7. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
