Model 4139 HP Versatile Link, POF Plastic Optical Fiber to RS232 Converter, Data Transfer Rate Up to 120 Kps, RS232 Transmission Greater Than 50 ft, Fiber Transmission 250 ft, Catalog # 304139

KWD 158.500
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • SPECIFICATIONS: Data Transfer Rate: Up to 120 Kbps (enhanced RS-232). Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable. RS232 Transmission Distance: Greater than 15 m (50 ft.). Optical Fiber Connectors: HP/Agilent Versatile Link RS232 Connector: DB9 Female port connector. Optical Cable Type: 1mm plastic optical film. Optical Wavelength: 660 nm (red). External Power Supply: 120 VAC, 60 Hz wall mount power supply is included with each unit (Cat No 533973). Dimensions: 2.24" x 1.1" x 3.88" (5.7cm x 2.8cm x 9.9cm). Weight: 0.3 lb. (93.5 grams). Status Display: Red LED.
  • Allows connection of POF Plastic Fiber Optic Linked Terminals to RS232 Port of Controller, Provides Electrical-to-Optical, Optical-to-Electrical Conversion, Ideal for Casino Networks, Laboratories, or ANY Network Linking Terminals or Machinery to a Controller.
  • Other Features: RS232 connection via a DB9 connector. Converts RS232 Serial Communication Interface to HP Versatile Link Plastic Core Cable. Provides full galvanic isolation (no metallic connection) between connected devices. Full duplex connection between HP Versatile Link fiber optic interface device or network and an RS232 interface device. Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS232 interface. Data transfer rate up to 120 Kbps (enhanced RS-232). Fiber connections via two standard Versatile Link connectors.
  • The Model 4139 is configurable for use as DCE or DTE. It is factory configured as a DCE. To reconfigure the unit to a different setting in the field, jumpers on the board must be changed. Maximum Link distance: greater than 500 meters (1640 feet) with 2.00 mm Hard Clad Silicon Fiber Cable. Contact customer support Monday through Friday 9am to 5pm with any additional questions.
  • The Model 4139 is provided with external wall-mount power supply, UL approved.
  • If you have any questions, contact our experts anytime on weekdays from 9am to 5pm . For contact information, please visit our seller page.

Description

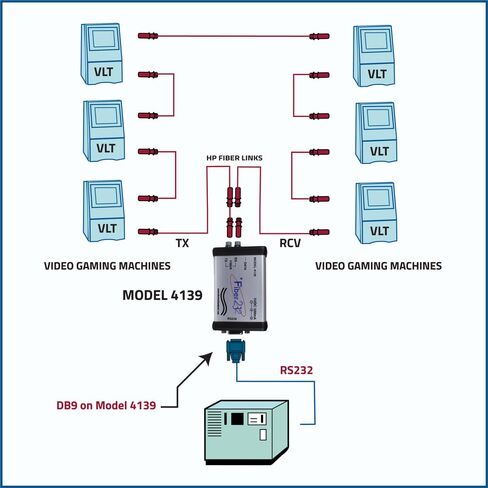

The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked devices such as POS terminals, ATM Machines, Kiosks, or other machines to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.
