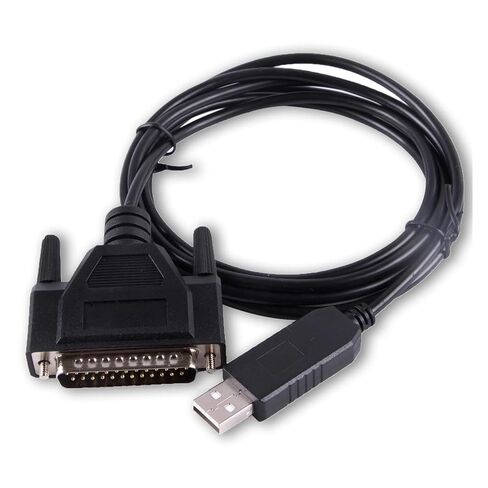

USB to RS232 DB25 Serial Adapter Cable for Fanuc CNC DNCLINK Configuration Copy Setting
Length :1.8M/5M Optional
Color Black
Internal Chip: F1T-D2I FT231XS
Cable Detail: 26AWG ; Pure Copper ; 4.0mm OD;p-v-c Jacket
VIRTUAL COM PORT (VCP) Driversare available for the following Operating Systems (OS):
- 11,10,8.1,8,Vista,7,XP
- 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- XP Embedded
- CE 4.2, 5.0 and 6.0
- OS 8/9, OS-X
- Linux 2.4 and greater - (J2xx / D2xx only)
See the following website for the full driver support list including OS versions and OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
The F1T-D2I FT231XS Chip Features:
1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 2048 byte multi-timeprogrammable (MTP) memory, storing device descriptors and CBUS I/O configuration.
4. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
5. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, and RS232) at TTL levels.
6. 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
7. F1T-D2I's royalty-free Virtual Com Port (VCP)and Direct (D2XX) drivers the requirement for USB driver development in most cases.
8. Configurable CBUS I/O pins.
9. Transmit and receive drive signals.
10. UART interface su
