Special Features

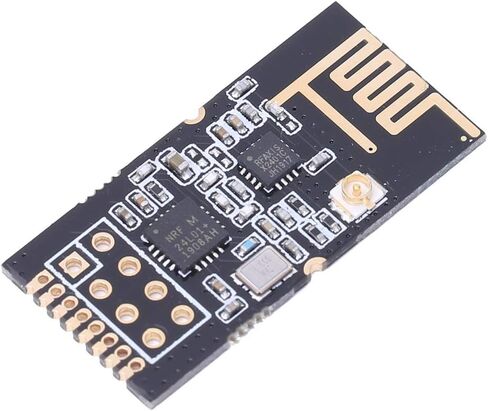

1. Comprehensive Compatibility: Our GT-24 Digital Transmission Module supports multiple development boards like 51 STM8S STM32, providing you with a versatile product for all your industrial needs. This module operates according to the nRF24L01P chip manual, ensuring well-suited integration and user-friendly interface.
2. Advanced Functionality: This GT-24 Module is equipped with nRF24L01P + PA + LNA, making it functionally identical to the nRF24L01P. You can conveniently operate the LNA through the CE pin, saving you from focusing on its and allowing you to on your project instead.
3. LNA Benefits: With this 2.4Ghz Transceiver Module, you gain control over the LNA's using the CE pin. When turned on, the LNA enhances the module's functionality, and when turned off, it stops interfering with other operations—providing you with more bility and control in your projects.
4. Efficient SPI : While our module's CE pin can the 10us described in the nRF24L01P technical manual, we recommend extending the timing to ensure effective SPI in the industrial environment. By keeping the CE high for 1ms after the transmission interruption, the module can switch to receive mode immediately post-sending, increasing the receiving sensitivity.
5. User-Friendly Approach: This RF Module is designed for easy . You can use SPI polling mode to get the interrupt status without linking the IRQ. Though we advise using an external interrupt from the controller for a better approach in the industrial setting, offering you more control, efficiency, and a user-friendly approach in your operations.
Description
Specification:
/>Item Type: Module
/>Serial number product name parameter Summary
/>1 model GT-24 ————
/>2 RF solution nRF24L01P ————
/>3 Module size
/>30.3 x 14.5mm / 1.19 x 0.57in

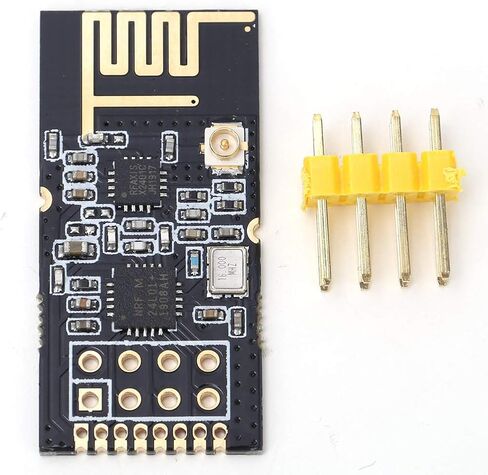

/>Package List
/>1 x Module
/>1 x Pin Header
/>Note
/>Notice the grounding is good, the paving area is large, and the power supply is small. The filter capacitor should be added as close as possible to the VCC and GND pins of the module.
