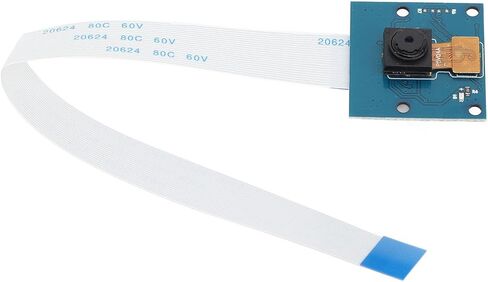

5MP Camera Module, OV5647 Sensor, 1080p HD Video, 3.6MM Fixed Focus 69.1° Lens, CSI Port Compatible with RasPi 5 Zero, Automatic Light Sense Adjustment

KWD 5

Brand
Acouto
Category
Webcams
Weight
12 g
1 +

Special Features

  • [ Compatibility] Perfectly compatible with raspi 5 zero series, ensuring error- and meeting the needs of various devices.
  • [High Definition Video] Equipped with 5mp lens, supports 1080p hd video , automatically adjusts the light sense, ensures clear and true colors in pictures.
  • [Enhanced Clarity] Built-in ov5647 sensor with 3.6mm fixed focus lens for clearer and more delicate video .
  • [Extreme Durability] Able to withstand temperatures from -20 to 70 degrees celsius, providing exceptional durability and stability for continuous .
  • [Easy Installation] Fixed with standard m2x6 screws, 15cm cable for direct insertion into the csi bayonet, facilitating a quick and simple installation process.

Description

Spec:

Item Type: Camera Module
Material: ABS, Optical Glass
Weight: Approx. 12g / 0.4oz
Lens : 5MP
Length: 3.6MM
Lens Angle: 69.1°
CMOS Size: 1/4 inch
Resolution: 2592x1944
Mounting Screw Model: M2x6 Screws
Cable Length: 15cm / 5.9in (1-2cm / 0.4-0.8in Error)

Package List:
1 xCamera Module

How To Use:
1. Power off and unlock the for RasPi: First, make sure the for RasPi is powered off, then use an appropriate tool (e.g., a toothpick) to remove the clasp from the CSI slot so that it can be lifted.
2. Install the camera cable and connecting cable: Insert one end of the cable into the CSI connector, making sure that the side of the cable with the metal contacts on it is facing the diagonal of the connector. Then insert the camera module's connecting cable into the corresponding port on the cable.
Fixing the camera: Install the camera module correctly on the for RasPi and make sure all connections are firm and , then power on the device to update the system and camera driver.
