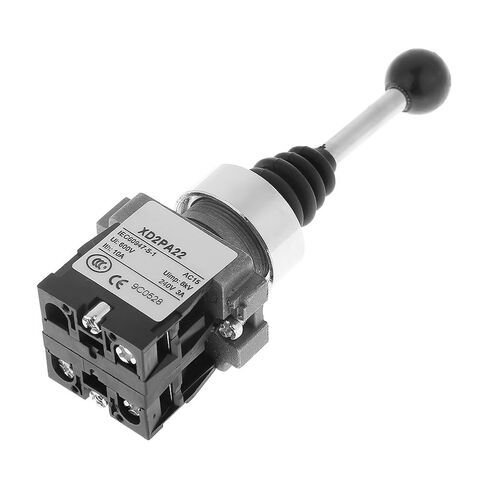

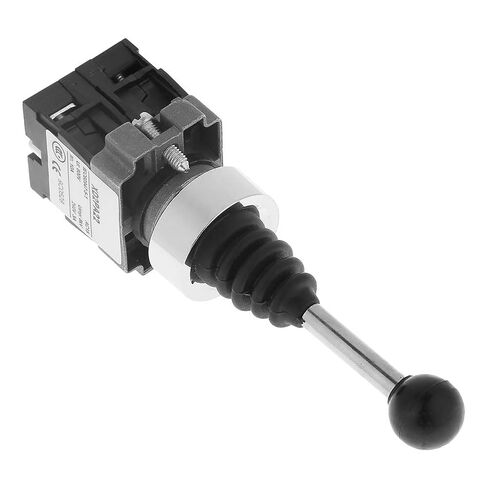

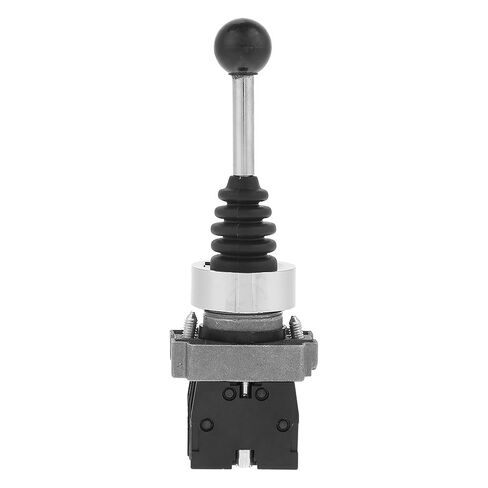

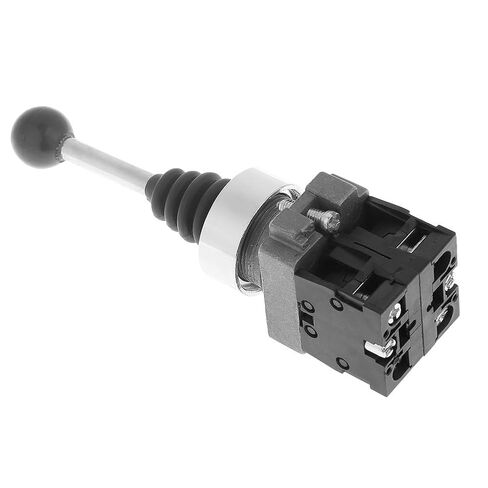

2-Position Momentary Joystick Switch, 2NO, Panel Mount, Screw Terminal, Copper Alloy Contacts, IP55 Rated

KWD 5
– 1 +

Special Features

  • ✿ 【2-Position Joystick Switch】 The joystick switch is a momentary switch that has 2 normally open contacts
  • ✿ 【Parameter】 Model: XD2-PA22CR; Rated Voltage: 0 ~ 380V AC (50Hz); 0 ~ 220V DC; Mounting Hole Diameter: 22mm; : ≤50mΩ; Insulation : ≥100Ω
  • ✿ 【Excellent Performance】 Rubber sleeve cover on stick is to water, oil and dust. The stick will return to its original position once released
  • ✿ 【Long Mechanical Life】 The joystick momentary switch is of more than 500,000 times mechanical life, and more than 500,000 times electrical life
  • ✿ 【Application】 Joystick can control magnetic starter, contactor, relay and other electrical circuits. Widely used for industrial control AC 50Hz and DC circuits

Description

Features:
The joystick switch is a momentary switch that has 2 normally open contacts.
The stick will return to its original position once released.
Rubber sleeve cover on stick is to water, oil and dust.
Widely used for industrial control AC 50Hz and DC circuits.
It can control magnetic starter, contactor, relay and other electrical circuits.

Specifications:
Model: XD2-PA22CR
Type: 2-position momentary
: 2NO
Rated Voltage: 0~380V AC (50Hz); 0~220V DC

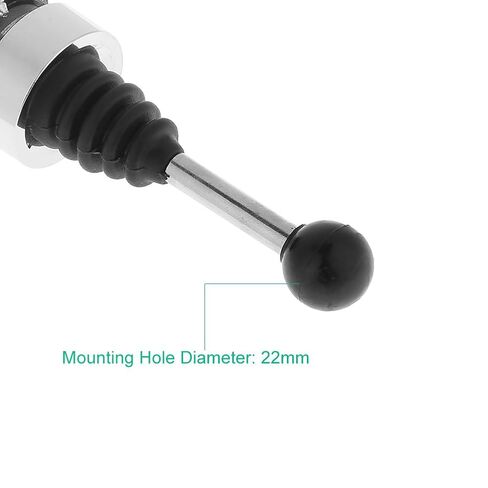

Mounting Hole Diameter: 22mm
Electrical Life: >500,000times
Mechanical Life: >500, 000times
Size: 12.5*4cm/4.9*1.6in
Operating Temperature: -25~+55 (no ice)
Operating Humidity: 45~85%RH (no condensation)
: 50mΩ
Isolation : 100Ω
. Withstand Voltage: 3000V, AC 50Hz
Vibratility: 50Hz, amplitude is about 1mm
Shock : >10m/s² (about 10G)
IP Rating: IP55
Weight: 124g(approx.)

Package Includes:
1 x Switch
