Line sequence defined red +5 V, black GND, green RXD, TXD
Note: 3.3V and 5.0V output is set (this is the power supply to the microcontroller, upgrade machines do not need the small plate) unplugged from the computer, set the jumpers to take, do not live to avoid damage to the equipment.
The wrong connection be sure to find the pin definitions, especially GND must not be connected to the voltage on the pin, and the RX and TX terminal is not connected to the VCC pin (actual measurement of some VCC pin voltage up to 14V.) shall be burnt adapter cable chip, certain note, do not take their own small plate to experiment, or burn We are not responsible. Must find the pin definitions in the next.
Connection method: repeat Brush only need three lines, generally used in the RX TX GND three signal lines, the VCC without access. The above 4,5 needle friend, not connected to VCC and BT needle. Use RXD connected with the target board TX phase, TXD and target board RX, GND connected to GND if not, swap RX and TX.

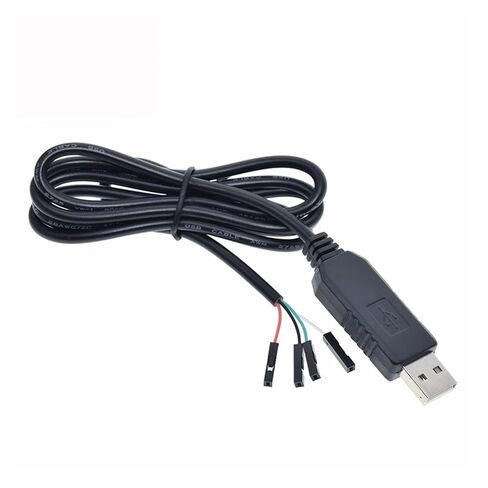

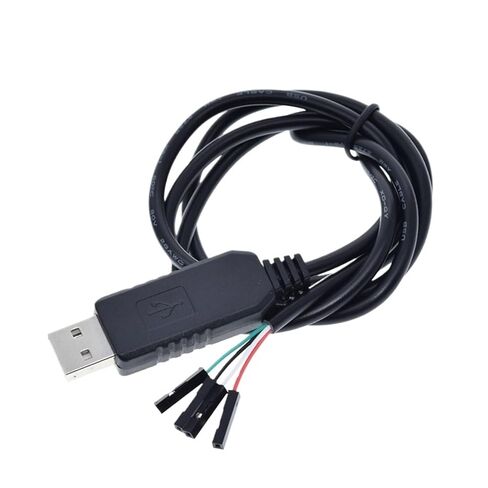

Name: USB to TTL download cable
Colour: Black
material: plastic
Length: 1 meter
Chip: PL2303HX, PL2303TA
Line sequence definition red +5v, black GND, green TXD, RXD.
: RX to TX, TX to RX, ground-to-ground, USB to serial port function: simple serial port, router or ADSL ancient upgrade, G-PS serial communication, hard disk ancient upgrade. Easy to use, RX is connected to the TX of the MCU, and TX is connected to the RX of the MCU, and it is connected to the ground, without the need for MAX232 conversion.
Used in HyperTerminal, serial debugging tools are commonly used, and various satellites are used for upgrading.
Package Contents: 1pcs x download line
Only the above package content, other products are not included.
