6. Multiphase Power Supply: This M ATX motherboard utilizes all solid capacitors and has an 8 and 24 pin power connector to ensure stable performance of the circuit board.
Spec:

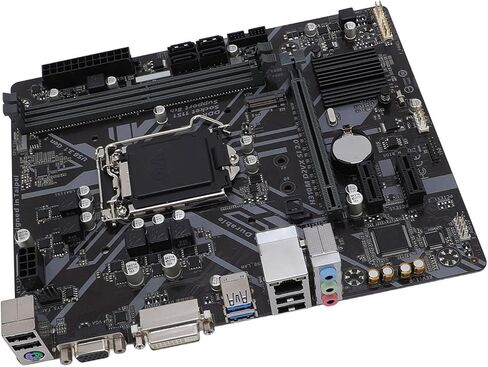

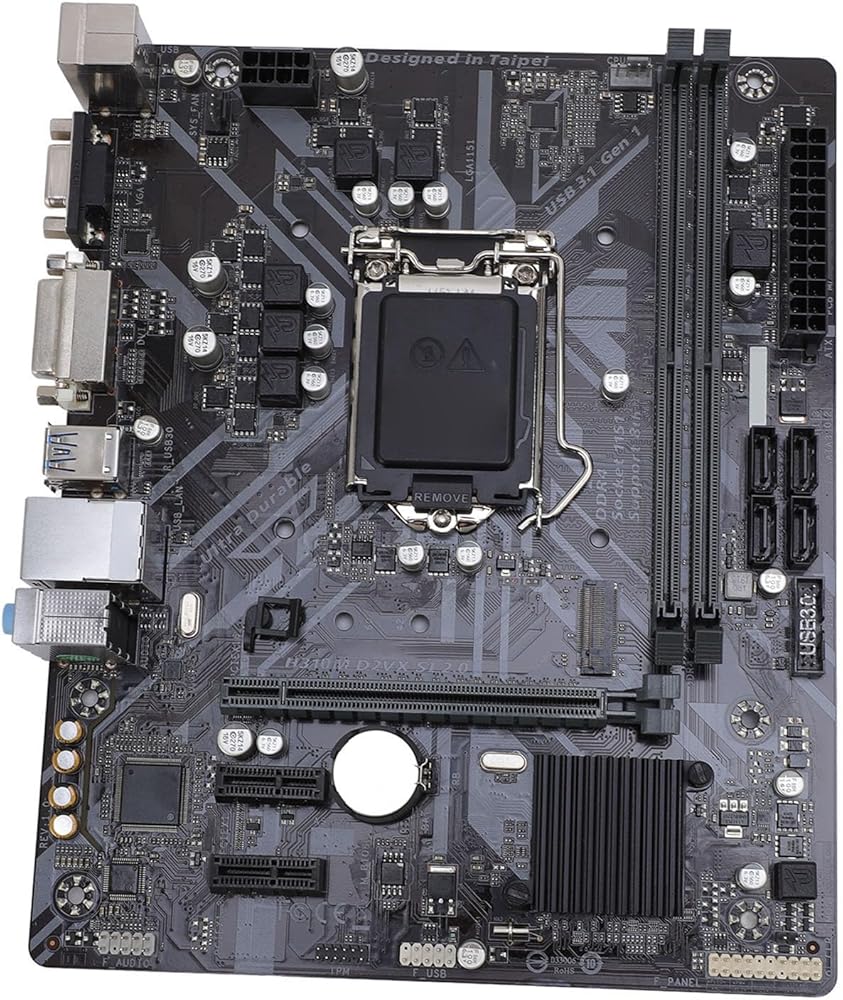

Item Type: Motherboard

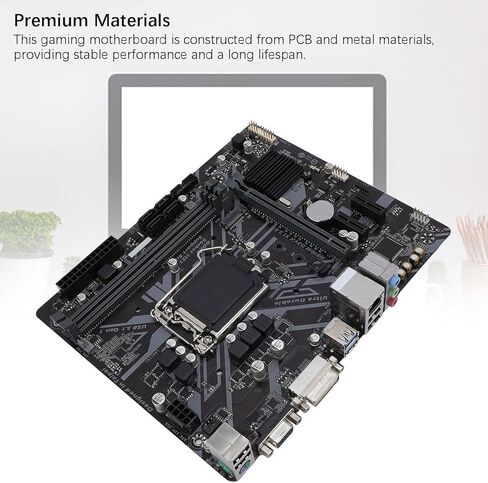

Material: PCB+Metal
Battery Type: Built in 240mAh CR2032 Cell Battery (included)

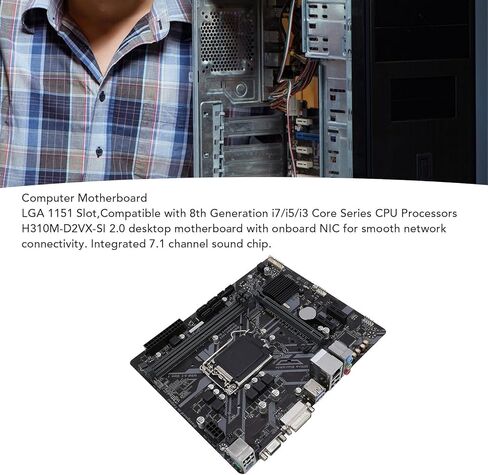

Model Number: H310M-D2VX-SI 2.0
Chipset: H310 High Speed Chipset
Sound Chip: Integrated for Realtek ALC887 7.1 Channel Sound Chip
Network Chip: Onboard for Realtek GbE Network Card
Compatible CPU Type: 8th Gen i7/i5/i3 Core/ for Celeron Series CPU Processors (CPU not included)
CPU Slot: for LGA 1151

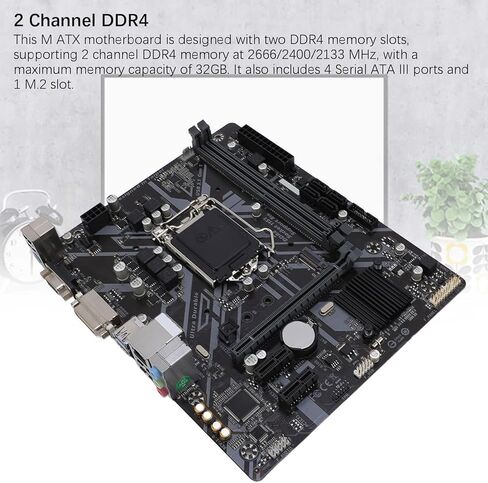

Memory Type: 2x DDR4 DIMM (memory not included)
Maximum Memory Capacity: 32GB (memory not included)

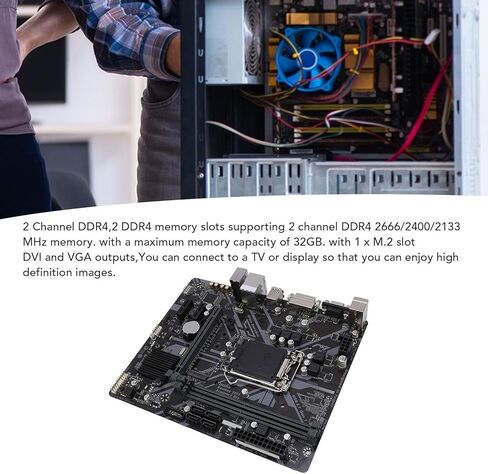

Memory Description: Supports 2 Channel DDR4 2666/2400/2133 MHz Memory (memory not included)
PCI E Standard: PCI E 3.0

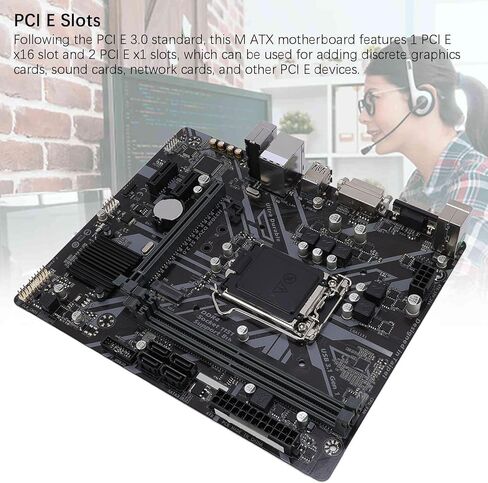

PCI E Slots: 1x PCI E X16 Graphics Card Slot, 2x PCI E X1 Slots
Storage Interface: 4x Serial ATA III Ports, 1x M.2 Slot
USB Ports:
4x USB 3.1 Gen 1 Ports (2 on the rear panel, 2 needs via cable from motherboard internal USB sockets)
6x USB 2.0/1.1 Ports (4 on the rear panel, 2 needs via cable from motherboard internal USB sockets)

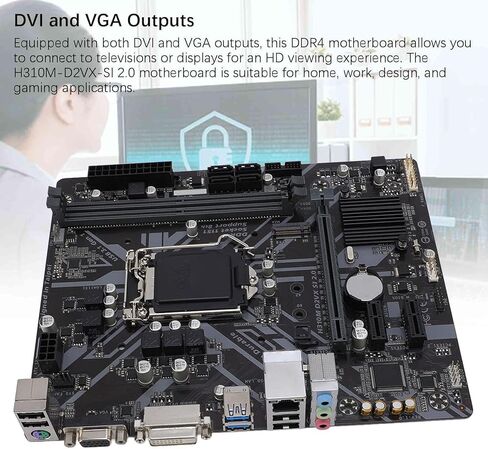

Video Ports: 1x DVI Port, 1x VGA Port
Power Ports: One 8 pin, One 24 pin Power Connectors
Other Ports: 1x PS/2 Keyboard/Mouse Socket, 1x D-Sub Port, 2x USB 3.1 Gen 1 Ports, 4x USB 2.0/1.1 Ports, 1x RJ45 Port, 3x Sound Ports
Motherboard Form Factor: M ATX
How to Use:
Install and use!
PackageList:
1 x Motherboard
