Laptop Motoard Analyzer Card,Post Test Motoard Analyzer Diagnostic Card Kit Laptop Motoard Analyzer Adapter Card for, Ggigabyte, MSI, etc

KWD 19

Brand
Agatige
Category
1 +

Special Features

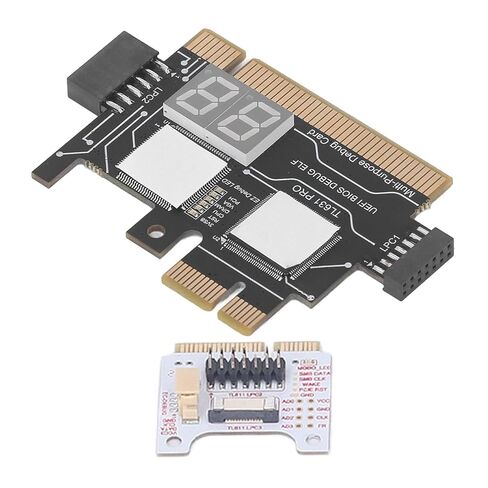

  • Kit Contents: Laptop motherboard analyzer card kit has 1 diagnostic card, 1 connecting wire, 1 terminal, 1 adapter card, 1 terminal wire, 2 flat cable.
  • Compatible Ability: The laptop motherboard analyzer card supports PCI E, mini PCI E, LPC. All PCI slots are supported.
  • Simple and Easy to Use: Motherboard analyzer diagnostic card has high recognition rate, automatic recognition of power module.
  • Suitable Items: Motherboard analyzer diagnostic card kit is suitable for ASUS, for Ggigabyte, for MSI, for ASRock, etc.
  • Versatile: Motherboard analyzer diagnostic card can detect multi channel and multi LED indicators, and can display the status of power supply, motherboard, PCUs, memory, video card and hard disk.

Description

Specification:

Item Type: Post Test Motoard Analyzer Diagnostic Card
Color: Black
Interface: PCI E, LPC
Support: For , for Ggigabyte, for MSI, for , etc.

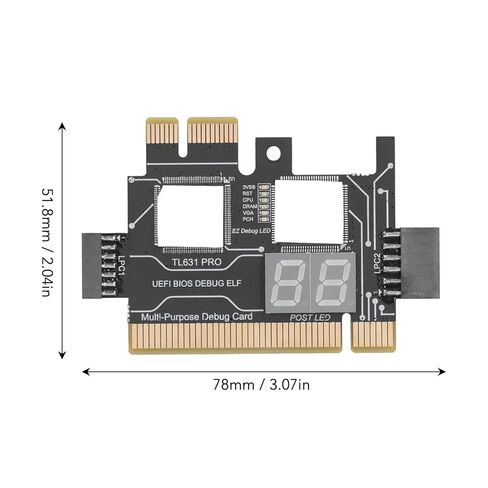

Size: 78 x 51.8mm / 3.07 x 2.04in

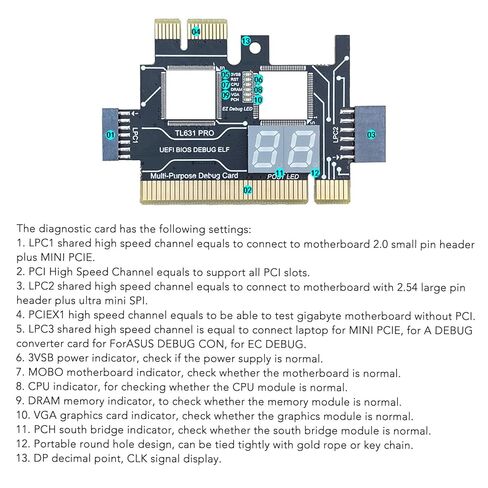

The diagnostic card has the following settings:
1. LPC1 shared high speed channel equals to connect to motoard 2.0 small pin header plus MINI PCIE.
2. PCI High Speed Channel equals to support all PCI slots.
3. LPC2 shared high speed channel equals to connect to motoard with 2.54 large pin header plus ultra mini SPI.
4. PCIEX1 high speed channel equals to be able to test gigabyte motoard without PCI.
5. LPC3 shared high speed channel is equal to connect laptop for MINI PCIE, for A DEBUG converter card for For DEBUG CON, for EC DEBUG.
6. 3VSB power indicator, check if the power supply is normal.
7. MOBO motoard indicator, check whether the motoard is normal.
8. CPU indicator, for checking whether the CPU module is normal.
9. DRAM memory indicator, to check whether the memory module is normal.
10. VGA graphics card indicator, check whether the graphics module is normal.
11. PCH south bridge indicator, check whether the south bridge module is normal.
12. Portable round hole design, can be tied tightly with gold rope or key chain.
13. DP decimal point, CLK signal display.

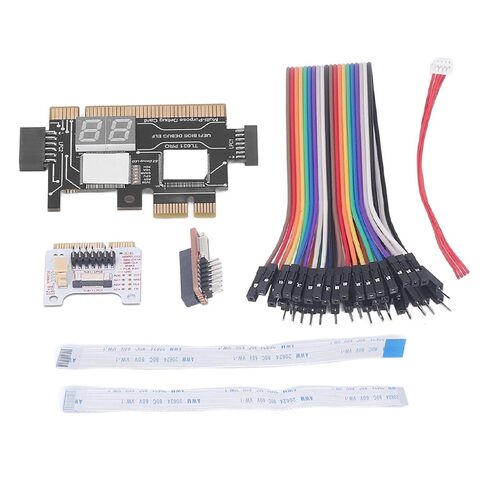

Package List:1 x Diagnostic Card 1 x Connecting Wire1 x Terminal1 x Adapter Card1 x Terminal Wire2 x Flat Cable
