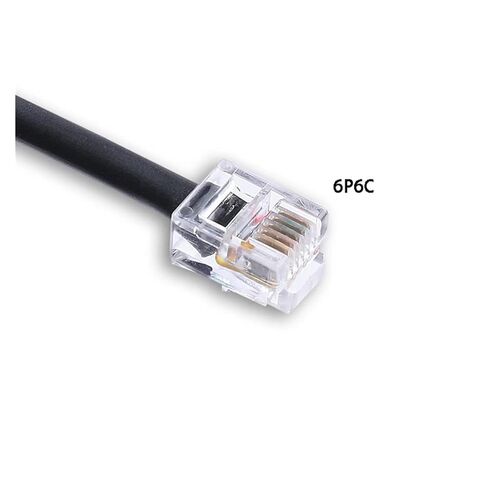

Zeitronix PC Serial Adapter Data Cable F1T-D2I USB to RJ12 6P6C RS232 serial Datalogging Cable for Zeitronix Zt-2 Zt-3 Zt-4
Material: P-VC Outer Jacket
Cable: 28AWG*3C, OD3.5
Conductor Wire: bare copper
Color: Black
Chipset: F1T-D2I FT231XS
TY>pe: USB to RS232
Length: 100cm, 180cm, 300cm optional, other length can be customized
Connector: Nickel plated shell, plated contacts
Housing: USB black housing
USB side can be molded
Molding: P-VC material, complaint
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
Application: for Zeitronix Zt-2 Zt-3 Zt-4 PC Serial Adapter cable
About F1T-D2I FT231
FT231X Full Speed USB to Full Handshake UART
Key Hardware Features
This USB2.0 Full Speed IC offers a compact bridge to full handshake UART interfaces. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA). The FT231X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
F1T-D2I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive L-ED drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space
