PH442R PHDK M.2 A&E Wi-fi to M-Key NVMe SSD Adapter PCIe 4.0 Expansion Support 2230 2242 2260 2280 SSD

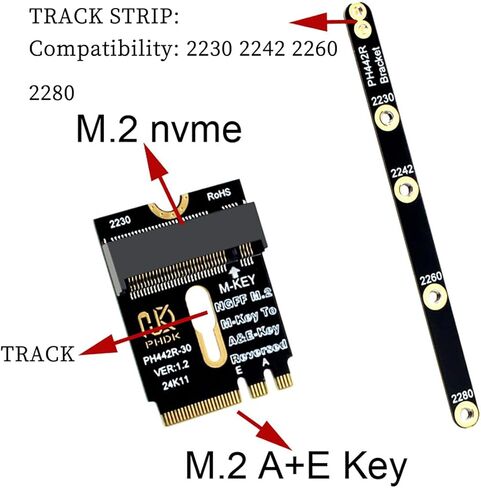

The PH442R is a specialized M.2 expansion adapter that converts a Wi-Fi M.2 A&E key interface (commonly used for wire less modules) into a M-key NVMe SSD slot, enabling the installation of a high-speed PCIe 4.0 NVMe solid-state drive.
With a reversed design, it allows for flexible installation in compact systems or mini PCs where space and port availability are limited. This expansion card provides an innovative way to repurpose the unused Wi-Fi slot for ultra-fast storage upgrades.
Parameter
Name:PH442R
Product Size:22*30mm
Support Hard Disk:Support Nvme Protocol Hard Disk
Support:M.2 Nvme
System:Compatible with Linux/Mac os /Windows
Speed :PCIE 4.0
Trackbar:Compatible with 2230 2242 2260 2280

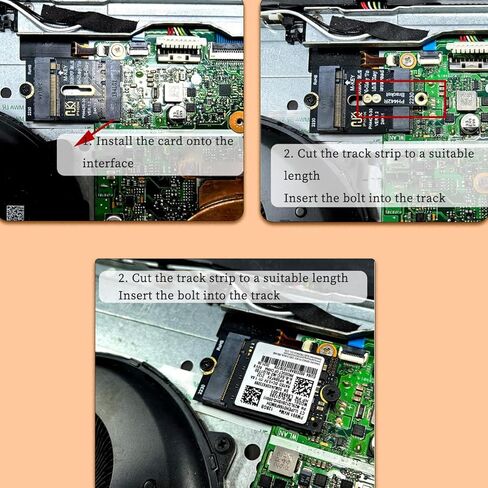

Installation Steps
1.Install the M.2 A&E reverse card, then install the card to the interface.
2. Cut the track strip to the appropriate length and snap the studs into the track.
3.Then install the SSD at a 45 degree angle diagonally.
