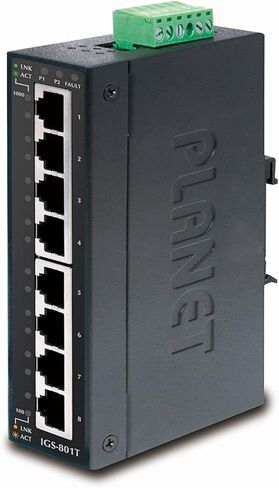

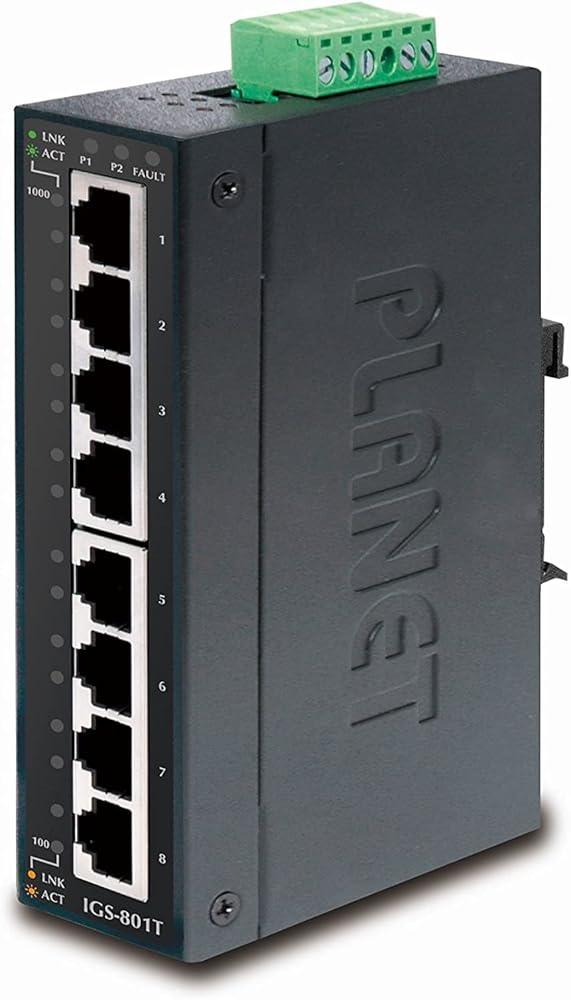

The IGS-801T is a Hardened Gigabit Ethernet Switch enclosed in an IP30 metal case. The compact, IP30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T is equipped with 8 10/100/1000Mbps auto-negotiation ports and operates reliably in heavy demanding industrial environments.

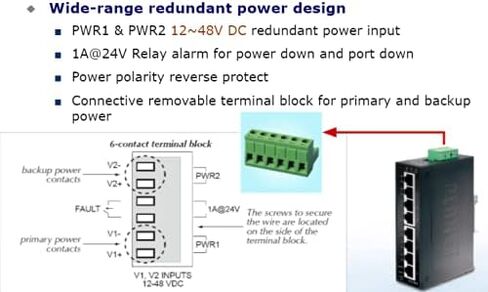

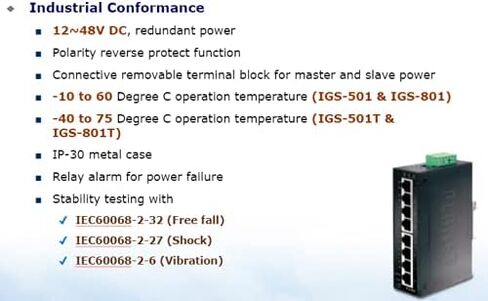

The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical typical of plant floors or in curb side traffic control cabinets. The unit can reliably operate between -40 to 75°C. The IGS-801T can be deployed in virtually any environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC).

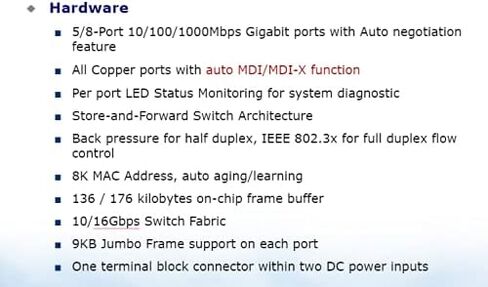

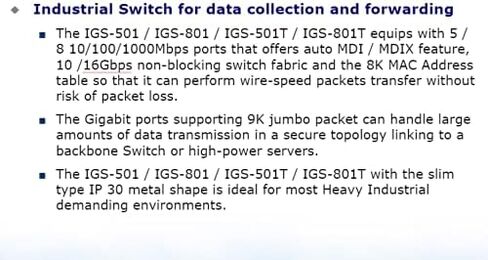

The IGS-801T offers a high-performance switch architecture. With 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as fast as 16Gbps and the 8K MAC Address table, the IGS-801T can perform wire-speed packets transfer with maximum accuracy. The IGS-801T features a Gigabit port with a 9K Jumbo frame that allows users to manage a large amount of data transmission to send data to the control room. The RJ-45 copper interfaces in the IGS-801T support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
