Cable
RS232 version cable also available in the options. Please select according to your needs, RS232 or USB.
Descriptions:
This USB-FBS cable is a suitable replacement of USB programming cable for FBS series , not support FBE series, with reliable performance and reasonable .
This cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software to communicate through simulated traditional port and devices. Embedded with this cable is the necessary data conversion equipments to communicate between end to and PC USB end.
Features
Support WinProladder or higher.
Support Windows 7/2000/Windows XP (WinNT4/95/98/Me/DOS NOT SUPPORTED).
LED indicator.
baud rate: 300 bps ~ 1Mbps automatically adaptive.
USB bus-powered, with current consumption of 50 mA
Each PC Support multiple cables
Support UART data format: Data bit: 7, 8, stop bit: 1, 2, Parity: odd / even / no parity
Compatible with USB V1.1 and V2.0
Operation temperature: -20~+70 °c
Usage:
USB device drivers should be installed before using programming cable, which can be downloaded.
After completing Driver installation, the corresponding COM port for the programming cable will be displayed in the Device Manager of Window. The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings. And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces.
Package info

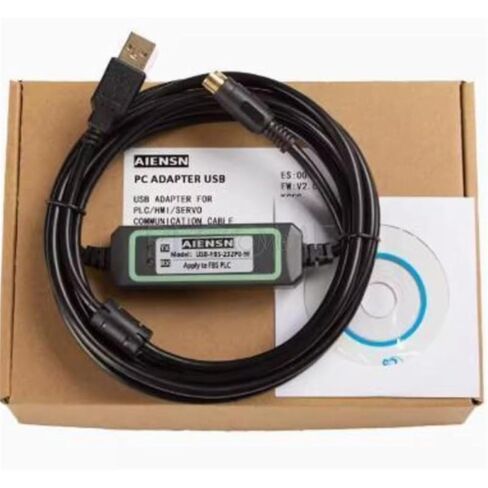

1 x USB-FBS Programming Cable
Software CD and box not included.
==========
Output Type : USB
Model Number : USB-FBS-232P0-9F
DIY Supplies : ELECTRICAL
