We are the production of i + d sales design as one of the manufacturers of camera modules, camera module IMX219 - infuses a visual soul into every raspberry pi. Compatible with raspberry pi 4B/3B/Zero development board, can do deep customization for your specific product parameters (such as support models/interface types), please provide module specification. I will refine the technical aspects further. We never sell hardware, we only provide the foothold that moves reality.
Product Parameters:
Chip Type : IMX219.
Pixel: 800 W.
Array Size : 3280×2464
EFL: 2.85mm
lens size : 1/4 inch
Size:1inch *0.98inch*0.35inch
FOV 70°
Distortion:
Connector: CIS
Focusing:20cm-~
Focus mode: fixed focus
Image format: VGA.
Aperture: F2.0
Operating voltage: 1.7v-3.3v
Image transfer rate: 30Fps@24Mhz
Wire length :5.9 inch flexible line (bending resistant)
Weight: 0.62 ounce
Product Features:
Spectral Filter - Built-in 650nm narrowband spectral filter provides up to 92% near infrared light transmittance, effectively isolating visible light interference, especially optimized for live detection, iris recognition and other biosafety scenes.
Sensor performance: sony IMX219 sensor with ultra-clear resolution of 8MP (3280×2464). Supports HDR wide dynamic range. Retention of environment detail with strong light and reverse light is improved by 60%.
Focusing system: Factory pre-calibrated 20cm~∞ super deep depth of field fixed focus, no need for repetitive adjustment, macro shooting accuracy up to ±0.05mm, PCB board inspection adaptation, precision parts size measurement
Blackberry tree support to plug-and-play/sg / | Zero debt cancellation series 4B CSI - 2 interfaces
Packing list:

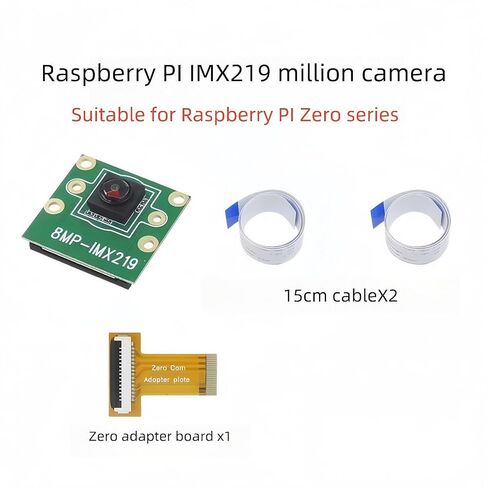

Accessories included: IMX219 camera module x 1/2" CSI line x 1.
After service:
If you have any questions during using IMX219 camera module, we are very happy to serve you. Clic-rush, ignite the coolest ideas with the smallest hardware!
