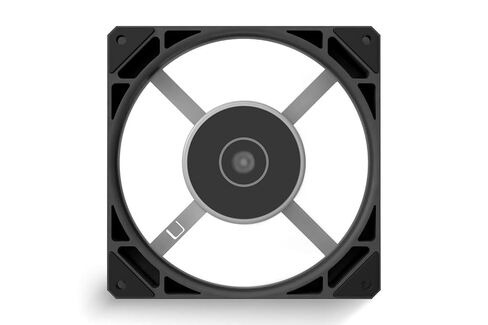

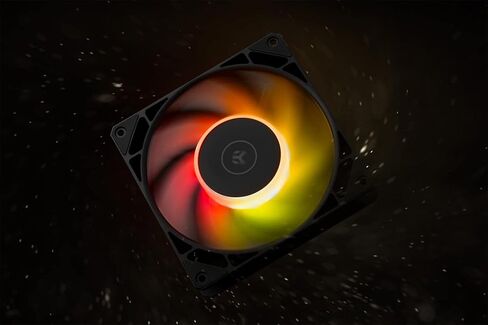

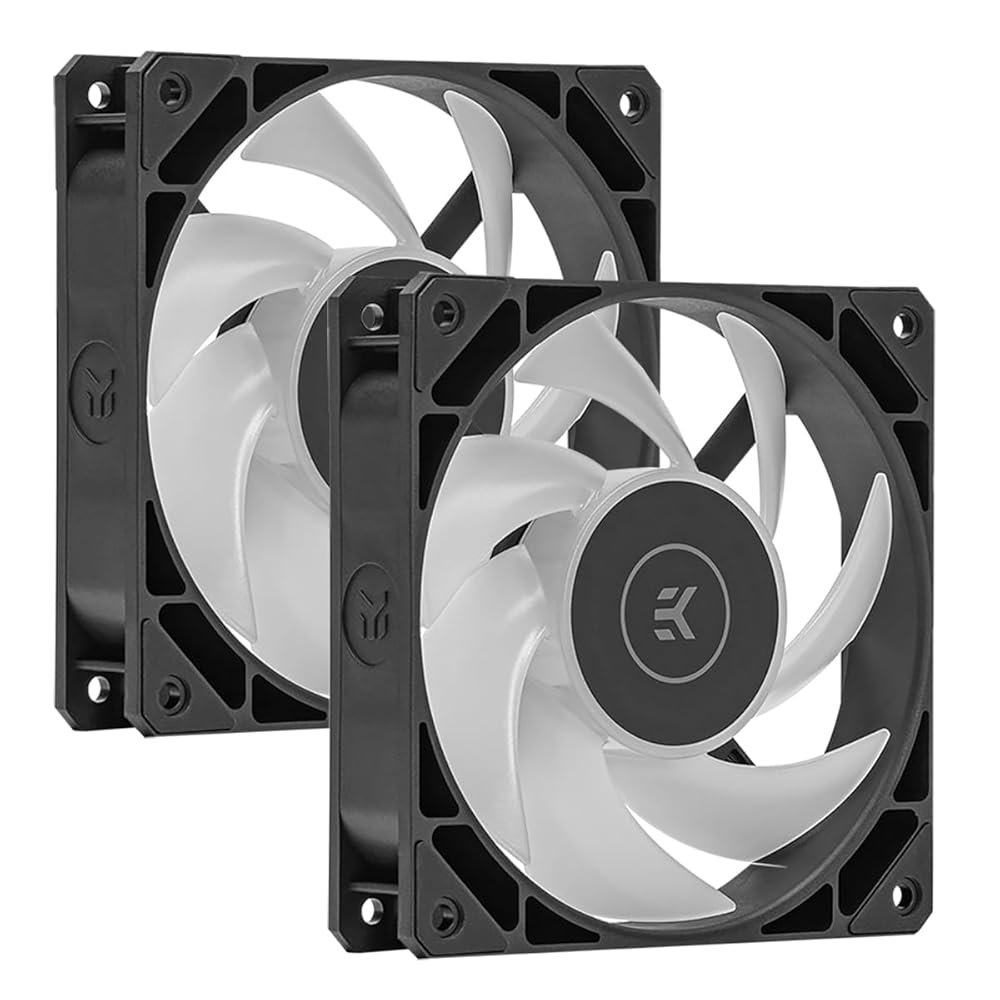

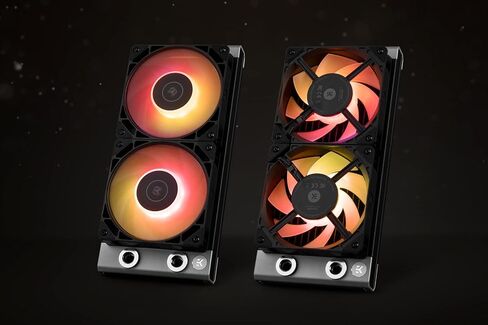

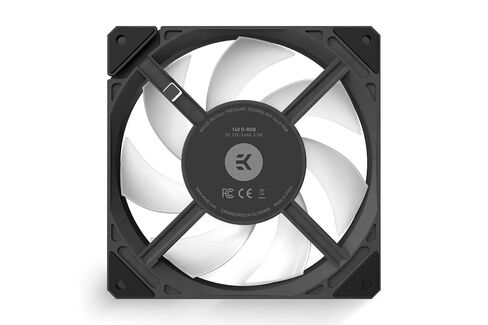

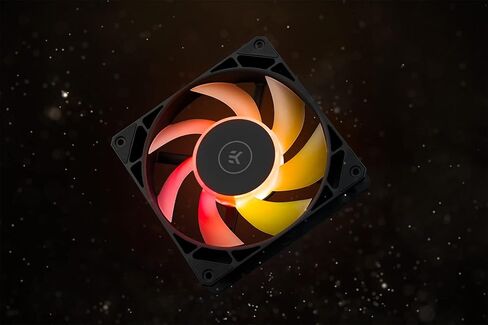

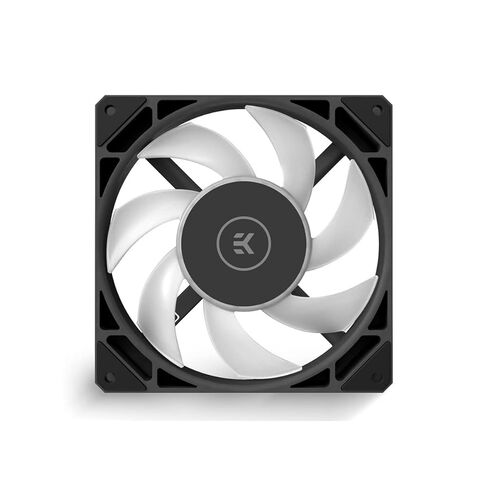

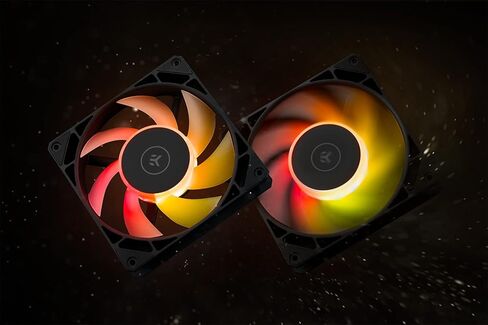

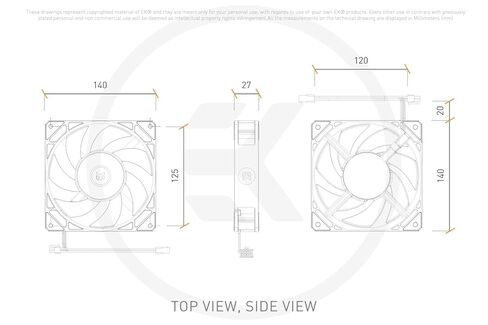

EK-Loop Fan FPT 140 D-RGB is a 140mm high-static pressure computer cooling fan designed and built primarily for the highest-performance computer liquid cooling systems. FPT series fans aim to succeed the EK-Vardar fans completely, as they improve upon many aspects while maintaining focus on excellent radiator performance. These fans feature an optimized and balanced performance-to-noise ratio on the wide operational range of the fan. FPT fans feature a full frame design that doesn't allow air to escape outside the frame and thus achieve overall better static pressure. The new fan allows daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-fit connector-based ecosystem. All the signal and power wiring for PWM and D-RGB run on a single cable and connector, which then utilizes a single cable to connect to the source. Mechanical and electrical specifications: - RPM range: 600 - 2200 RPM - Rated voltage: 12V - Power draw: 5,5W - LED power draw: 3W (0,6A) - PWM duty cycle: 20-100% - Shaft bearing: FDB (Fluid Dynamic Bearing) - Bearing durability: 60000 hrs@ 25 degree C - Dimensions: 140mm x 140mm x 27mm - Fan cable length: 120mm - Fan connector: Micro-fit 8-pin connector - Extender cable length: 500mm - Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header Performance characteristics: - Max Air Flow: 118,01 CFM = 200,5 m3/h - Static Pressure: 3,57 mm H20 = 35 Pa - Noise Level: 44,56dBA (max. RPM) Enclosed: - 1x EK-Loop Fan FPT 140 - 1x Cable extender (PWM+RGB) - 4x Self-tapping case screws Model: 3831109897621-2P
