Special Features

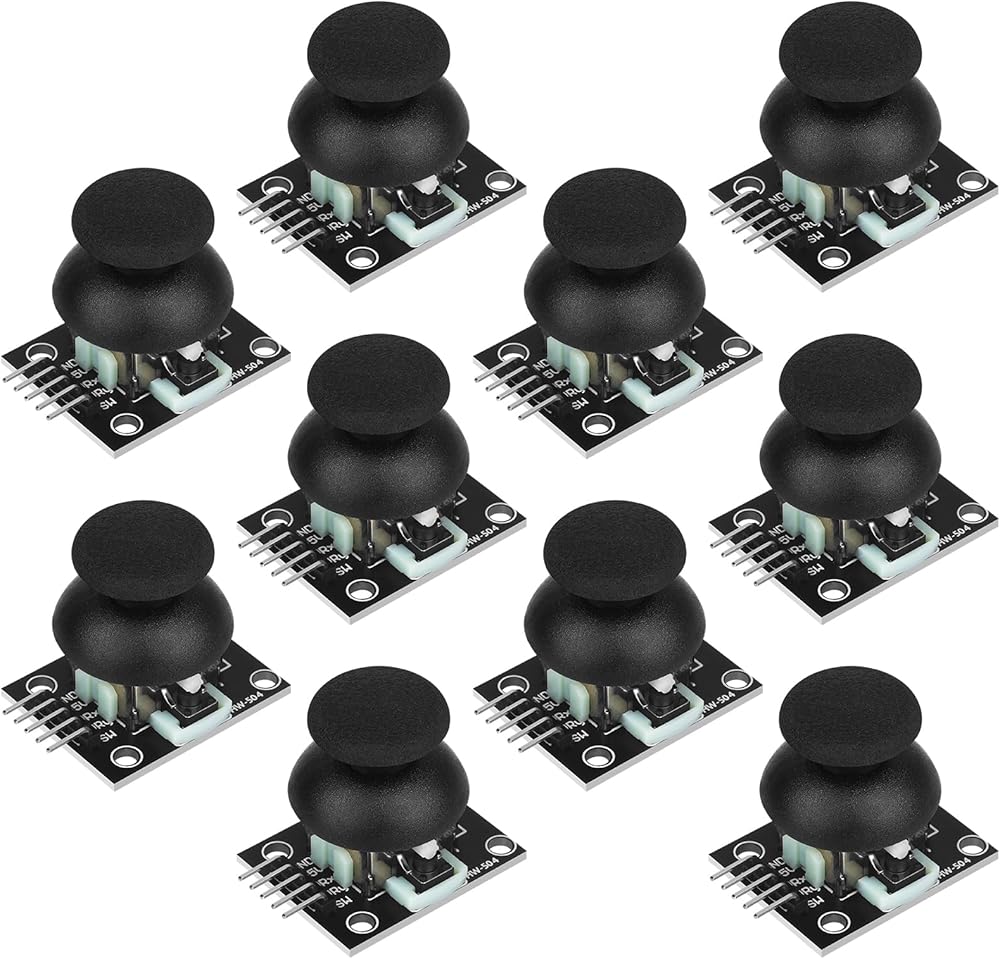

Enjoy the Fun of DIY: The dual-axis joystick sensor module is made of PS2 joystick potentiometer, with (X, Y) 2-axis analog output and (Z) 1-way button digital output. With Arduino sensors, you can make interactive works such as remote controls

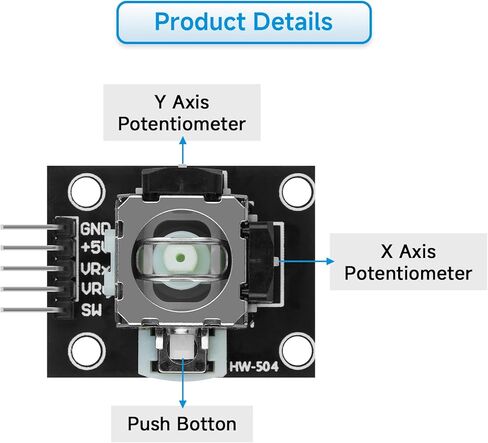

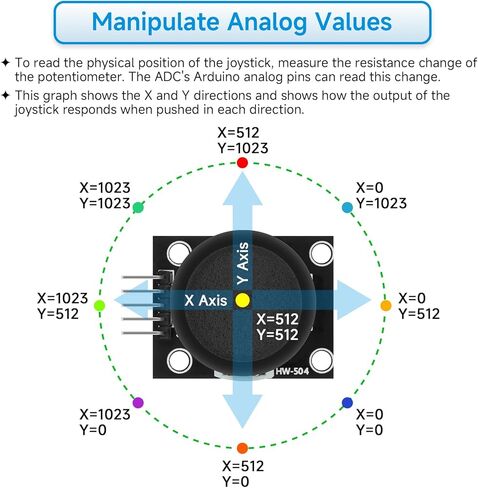

Working Principle: Cross joystick adpots a bidirectional 10K resistor, the resistance value of the tap changes with the direction of the joystick. In the original state, the X, Y read voltage is about 2.5V. When pressing in the direction of the arrow, the read voltage value increases and reaches a maximum of 5V; when pressing in the opposite direction of the arrow, the read voltage value decreases and the minimum is 0V

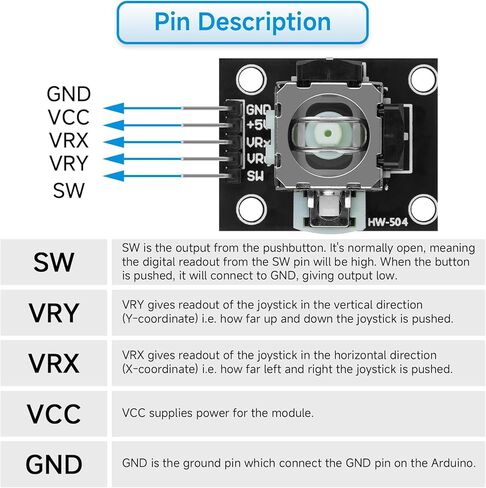

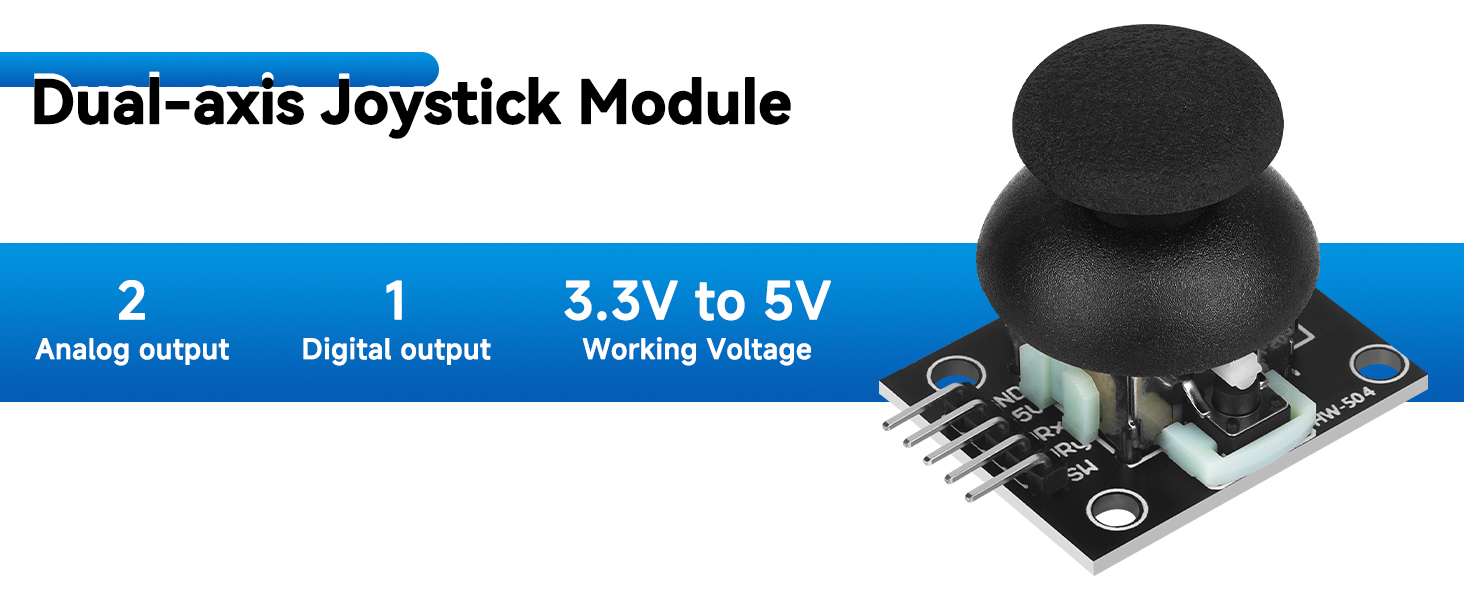

Output Signal: The module operates over a wide voltage range of 3.3V to 5V DC, two analog outputs and one digital output interface are specially set. The output values correspond to the (X, Y) dual-axis offsets respectively, and the type is analog. The button means whether the user presses on the Z axis, and the type is digital switch

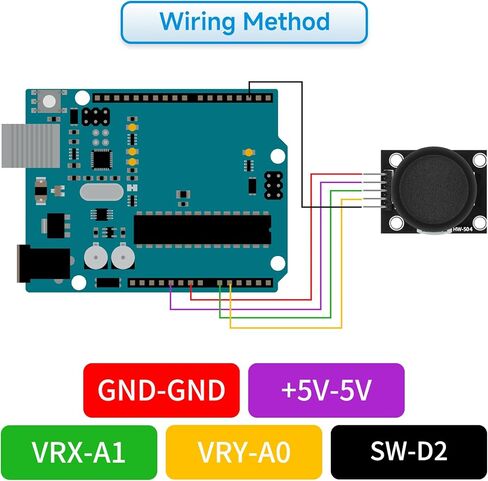

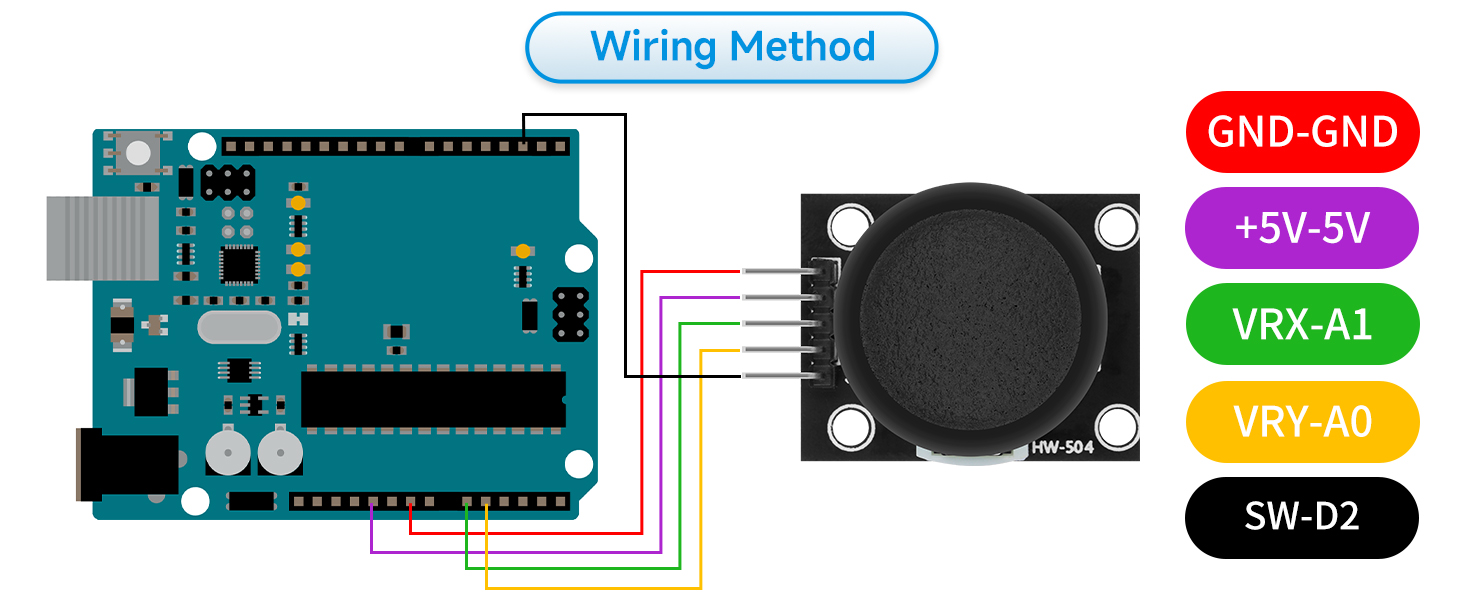

Easy Integration: The X, Y, and Z axis circuits are all individually designed for easy connection. You only need a 3-pin Arduino dedicated cable to plug into the expansion board for use
Widely Applcaiton: Compatible with PS2, Arduino, and Raspberry Pi, this module is ideal for gaming, controller applications, sensor projects, and more. Get creative with this high-quality joystick sensor module for your next tech endeavor
