Intel NUC Chassis Element Dual LAN Mini PC Industrial Computer Intel Core i5-8365U Processor, vPro Function,8GB DDR3 RAM,256GB SSD

KWD 118.500

Brand
WEELIAO
Size8GB Ram+256GB SSD
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Installed with Intel Compute Element Intel Core i5-8365U Processor 6M Cache, up to 4.10 GHz),8GB DDR3 RAM
  • One M.2 22x80 M-key slot for PCle x4 NVMeOF SATA SSDS ,One M.2 22x42/80 M-key slot fOr SATA SSDS
  • Windows 11 pro pre-installed
  • Dual GbE LAN: Intel i219-LM and Intel i211-AT 10/100/1000 Mbps RJ45 Ethernet, Support for dual 4k@60Hz via HDMI 2.0a
  • Qualified for 24x7 operation

Description

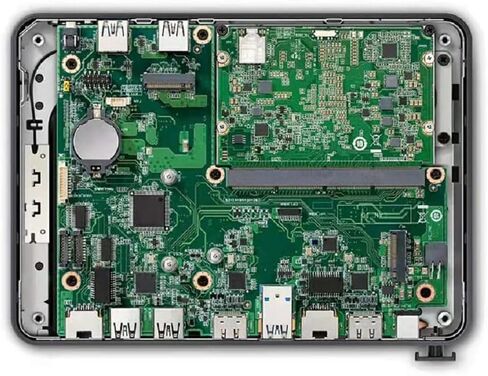

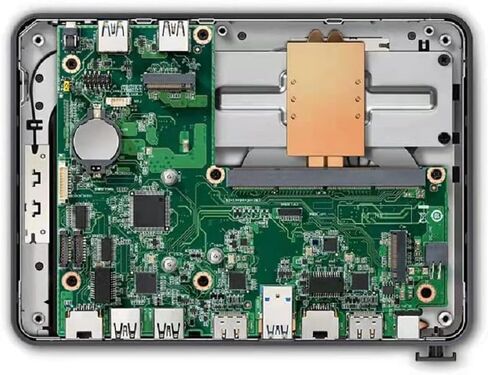

Intel NUC Chassis Element Mini PC, actively-cooled chassis with I/O board installed(CMCM2FB);

STORAGE CAPABILITIES
One M.2 22x80 M-key slot for PCIe x4 NVMe or SATA SSDs,
One M.2 22x42/80 M-key slot for SATA SSDs

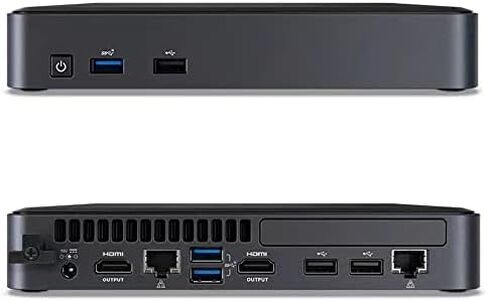

CONNECTIVITY
Dual HDMI 2.0a with built-in CEC, support for dual 4k@60Hz
Intel Optane Memory H10 with Solid State Storage ready
Intel i219-LM 10/100/1000 Mbps RJ45 Ethernet; 2nd Intel i211-AT 10/100/1000 Mbps RJ45 Ethernet
Three USB 3.1 gen 2 type A ports (one front panel port and two back panel ports)
Three USB 2.0 type A ports (one front panel port and two back panel ports)
Display Emulation (headless display, virtual display, persistent displays)
AUDIO
Up to 7.1 multichannel (or dual 8-channel) digital audio via HDMI
MECHANICAL CHASSIS
7.87" x 5.70" x 1.38"
200 mm x 145 mm x 35 mm
Metal chassis
Kensington lock
VESA mounting plate included
Internal Wi-Fi and Bluetooth antennas
Cable locking arm
POWER REQUIREMENTS
19VDC 90W power supply adapter with geo-specific AC cords (IEC C5 connector)
Qualified for 24x7 operation; delayed AC start; DC overvoltage protection
