MINATO II PWM

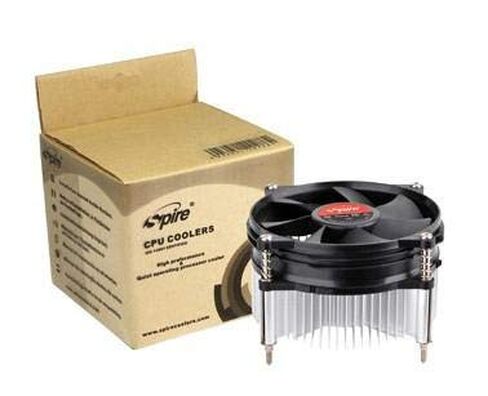

The Spire Minato II PWM CPU Cooler is made out of a quality engineered designed aluminum omnidirectional heat-sink.
Ensuring airflow is directed to the hot components on the mainboard, topped with a signature 95x25mm dc fan.
The Minato II PWM is a socket 1155/1156 Intel version, silent and capable to cool the Core i3 and Core i5 micro-processors, assembled onto the 1155/1156 based sockets. Secure installation guaranteed due to the 4 metal screws with spring retention.
Ready to cool up to the hot 95W micro-processors the Minato II PWM is the perfect solution for System Integrators who are determined to build a cost effective 1156 based PC System.

FEATURES:

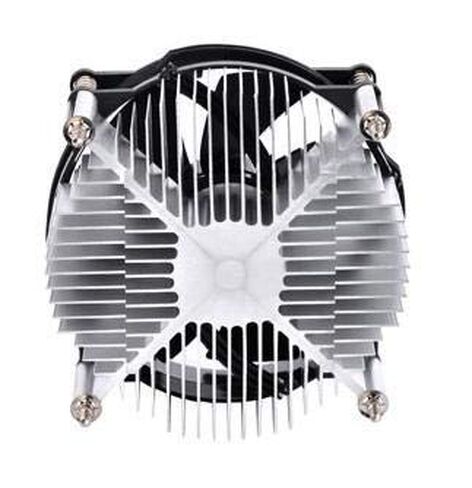

Aluminum omni-directional, single-ped finned heat-sink
Large base for maximizing contact dissipation area
Silent 95x25mm DC fan design

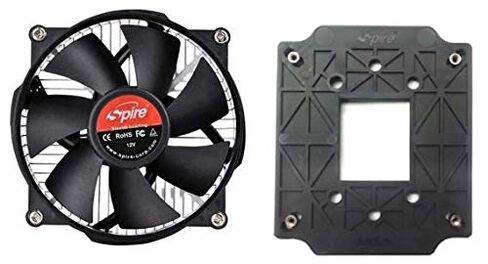

Secure installation
Total CPU cooler height only 53mm
Stars-350 Thermal compound pre-applied

PRODUCT SPECIFICATIONS:
Unit Dimension (cm): 9.5 x 9.5 x 2.5
Air Flow: 45.26 CFM
Application: Intel Core i3, Intel Core i5
Bearing Type: Sleeve Bearing
Rated Speed: +/- 10% 600 ~ 2200 RPM

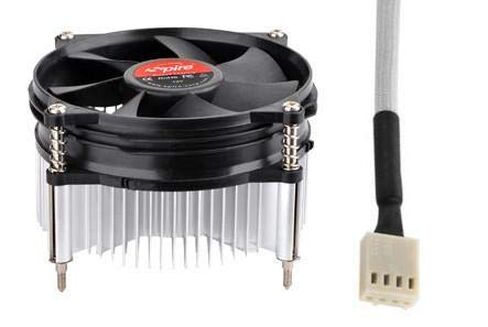

Connectors: 4 PIN PWM Molex 2510 with 7" Tail
Fan Size (cm): 9.5 x 9.5 x 2.5
Noise Level: 10 ~ 22 dBA
Fan Type: 12VDC
Fits Socket Types: Intel, Intel 115x
Life Expectancy: 30,000Hrs
Material: Al
Number Of Fans (Pre-Installed): 1
Operating Temperature (°C): From -10
Operating Temperature (°C): To 70
Packaging Type: Color Box
Rated Current (A): 0.16
Rated Power (W): 1.92
Static Pressure: mmH2O 2.27
Storage Temperature (°C): From -40
Storage Temperature (°C): To 70
Thermal Design Power (W): 95
Thermal Interface Material Stars: -350
Thermal Resistance: 0.366
Voltage DC (INPUT): 12 V

CERTIFICATIONS:
CE Listed
RoHS Marked
FCC Marked
