PTZ1271-20X-POE

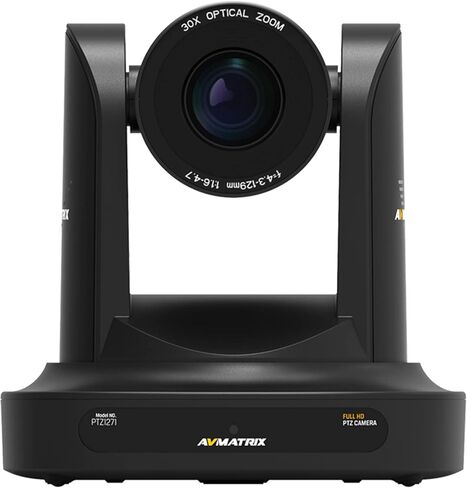

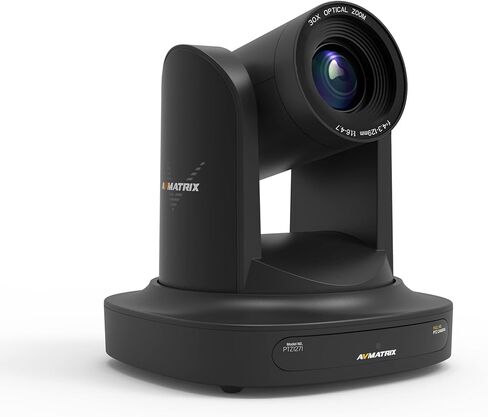

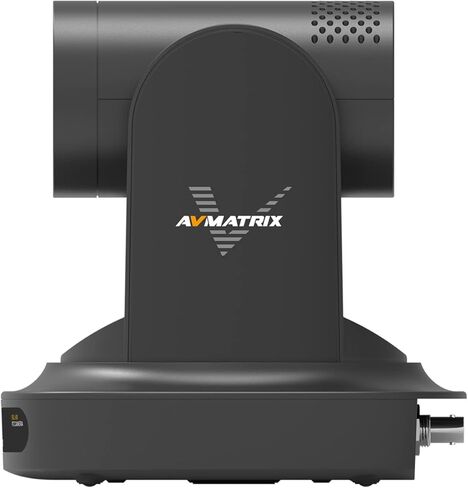

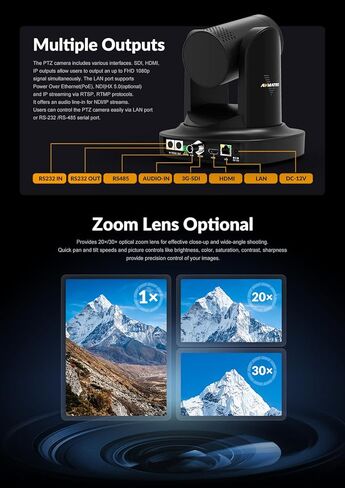

The AVMatrix PTZ1271-20X-POE PTZ Camera includes various interfaces. SDI, HDMI, and IP Outputs allow users to output an up to FHD 1080p signal simultaneously. The LAN port supports Power Over Ethernet(PoE). NDI HX 5.0(optional) and IP streaming via RTSP, RTMP protocols. It offers an audio line-in for NDI/IP streams. Users can control the PTZ camera easily via LAN Port or RS-232 / RS-485 serial port.
Zooms Lens Optional
Provides 20x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.
Easily Control

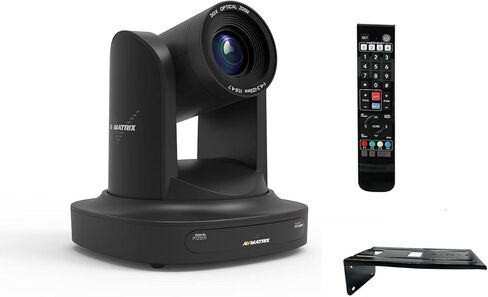

The PTZ Camera can be easily controlled by IR remote control, web UI as well as the joystick camera controller via IP or serial port.
A Variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, and ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.
PTZ1271-20X-POE - Details Features: 1/2.8 Inch HD CMOS Sensor, 20X Optical Zoom HDMI & 3G-SDI Video Output, PoE Power RS-232/RS-485 Serial Control, Cascading Streaming Protocols: RTSP, RTMP, SRT & NDIHX (Optional) Specifications: Interfaces: Video Out: SDI, HDMI Audio Input: 3.5mm audio (Line-level) Control Interface: RS-232 In and Out, RS-485 .Video Format: HDMI/ SDI Video up to 1080P60 IP Streaming: RTSP/ RTMP/SRT LAN Port: IP Streaming: RTSP/ RTMP/ SRT Camera Parameters: Focal Length: F-5.5-110mm View Angle: 3.3° (tele), 54.7° (wide) Aperture Value: F1.6-F3.5 Sensor: 1/2.8 inch, High quality HD CMOS sensor Effective Pixels: 1
