Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RN03
CPU: Intel Atom Processor C3958 16M Cache, up to 2.0 GHz
Memory: 2 x SODIMM DDR4 2400 MT/s, MAX.64GB RAM
Storage: 1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553

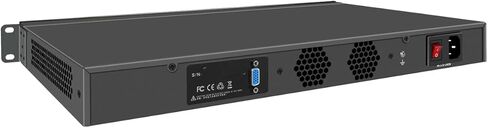

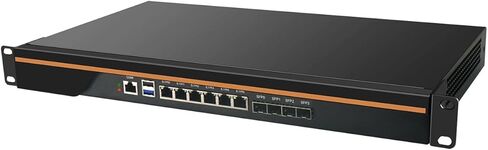

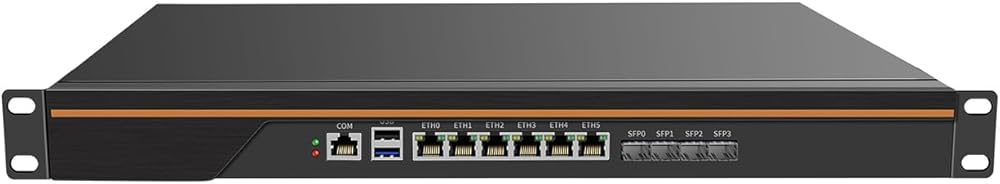

I/O Interface: Console, USB2.0, USB3.0, 6 x LAN, 4 x SFP+ Optical, AST 2400 VGA, Power Switch, AC Socket
Expansion: 1 x Mini PCIE slot for WiFi/4G, 1 x M.2 3052 USB3.0 x1 signal slot for WiFi/4G, with SIM slot, 1 x PCIe x8 slot
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Power: 100-240V1.0A, 12V6.25A
Operating Temperature: -0~+50°C commercial HDD, -20°C~+50°C industrial SSD, surface air flow
Ambient Temperature: 5%~90% non-condensing
TDP: 31W
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Size: 484 x 252 x 48mm
Weight: 3.2kgs
Packing List: HUNSN RN03 firewall appliance, rackable ears, power cord, warranty card
Function: Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
