Transceivers

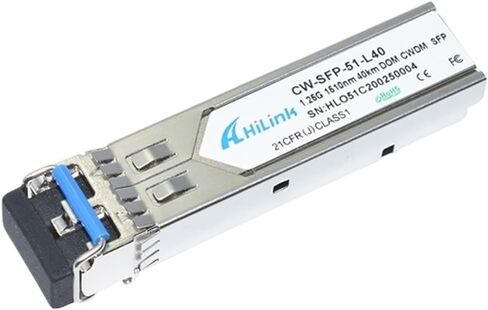

1.25G 1510nm 40km DDM CWDM SFP Transceiver
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are compliant and lead-free. It's widely used with CWDM Mux Demux together.
Features:
Up to 1.25Gb/s dual data links
-pluggable SFP footprint
Uncooled DFB laser transmitter
Duplex LC connector
Up to 40km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Commercial operating temperature range: 0 to +70 Temp
Applications:
Gigabit Ethernet
Fiber Channels
Router/Server interface
CWDM System
CWDM Transceiver
CWDM SFP
CWDM SFP 1G/2G (1270nm-1610nm) 40/80/120km CWDM SFP 0-70
CWDM SFP 4.25G (1270nm-1610nm) 40km& 80km CWDM SFP 070
CWDM XFP10G
CWDM XFP LR 12701330nm 10km CWDM XFP 0-70
CWDM XFP ER (1470-1610nm) 40km CWDM XFP 0-70
CWDM XFP ZR (1470-1610nm) 80km CWDM XFP 0-70
CWDM SFP+(10G)
CWDM SFP 10G LR (1270-1330nm) 10km CWDM SFP+ 0-70
CWDM SFP ER (1470-1610nm) 40km CWDM SFP+ 0-70
CWDM SFP ZR (1470-1610nm) 80km CWDM SFP+ 0-70
CWDM Xenpak(10G)
CWDM Xenpak ER 1470nm~1610nm 40km CWDM Xenpak 0-70
CWDM Xenpak ZR 1470nm~1610nm 80km CWDM Xenpak 0-70
CWDM X2(10G)
CWDM X2-ERC 1470nm~1610nm 40km CWDM X2 0-70
CWDM X2-ZRC 1470nm~1610nm 80km CWDM X2 0-70
