OSSC Add On Board, High Definition ABS OSSC Dual Mode Converter with Composite S Video for Retro Game Console

KWD 0
Brand
Naroote
– 1 +

Special Features

  • Glabrate Mode: Glabrate mode is purely based on preference, as the average retro gamer prefers glabrate mode for 2D games (for Genesis, etc.) and flat mode for 3D games (for N64, for , etc.). However, glabrate mode may help reduce flickering in some
  • Compatibility: The great feature of the OSSC add on board is that it outputs a true 480p 60hz or 576p 50hz signal, compatible with retro games. This device is an excellent help for streamers looking for the highest compatibility possible. The output resol

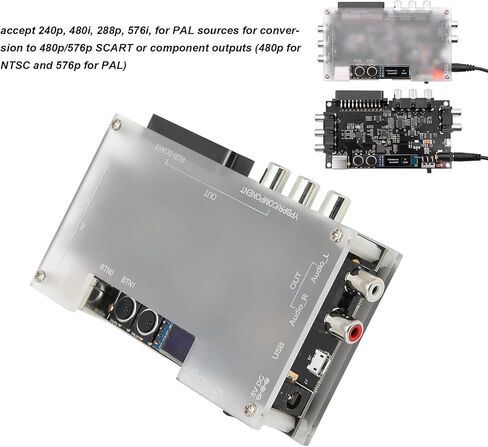

  • Signal Resolution: The OSSC plug in can accept 240p, 480i, 288p, 576i, for PAL sources for conversion to 480p/576p SCART or component outputs (480p for NTSC and 576p for PAL). For example, 240p signals are properly supported, allowing full progressive dou
  • Regional Compatibility: The OSSC add on board has low latency, supports NTSC and PAL signals, but cannot convert each other. This means that you can plug in any signal that the target device is compatible with, but NTSC signals may not work with PAL devic
  • Pass Through Mode: The OSSC add on board is placed in pass through mode (1x mode), the incoming composite or S video signal is simply transparent and converted to RBGS, YPBPR (output via SCART, Component interface). The perfect transcoder for use with 15

Description

Specification:
Item Type: OSSC Add on Board
Material: ABS
Supported Consoles, but Not Limited To: for Atari2600, for Msx, for N64, for , for PlAYSTION1, for PIAYSATION2, for Dreamcast, for MD1, for MD2, for , for , for SNK NEOGEO, for Super Famicom, for Vic20, for XBOX
Buttons, Connectors and External Controls
1. S Video Input: Connect S Video (4Pin Connector) Source to This Input, Other Sources Are Not Supported.
2. AV Input: Standard Composite () Connector. You Can Connect Sources Like for Super Famicom, for , for N64, Etc.

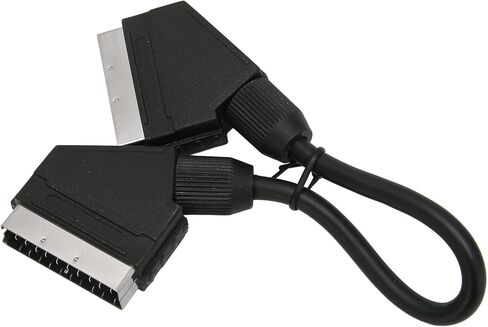

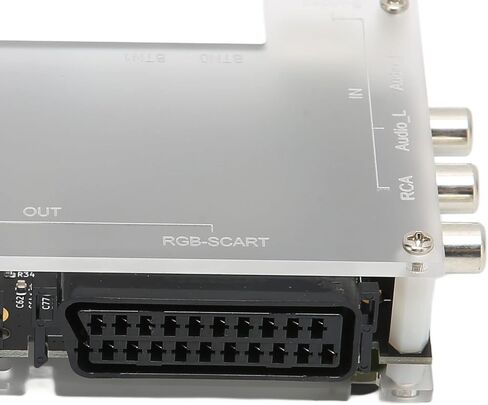

3. Scart Output: Only Output RGBS Signal and Sound Signal, Not Output Component and Composite Signal. Can Be Directly Connected to OSSC AV1 (OSSC Scart Interface).
4. Component Video Output: Output Ypbpr Signal, with Sound Output Interface, Can Be Directly Connected to TV or OSSC.

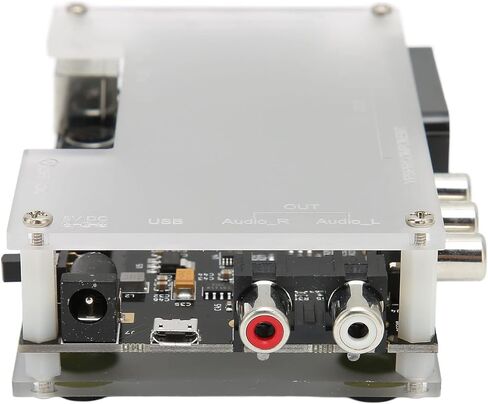

5. Sound Output: Direct Access to Sound.
6. Input Mode: Switch Input Composite and S Video.
7. DC Jack Socket Power Input: Any Good Quality Micro USB Charger Can Be Used to Power the Ossc Add on Board As It is a Very Efficient Device. You Can Also Use a DC 5.5X2.1mm Power Socket. Note That You Can Only Connect to DC 5V.
8. Power Switch: Switch the Power off and On.

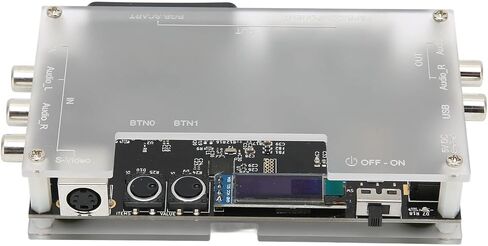

9.BTN0 (Menu Item Selection): the Input Key is Mainly to Select the Menu Item Displayed on the LCD.
10.BTN2 (Option Selection): Switch the Functions Corresponding to the Menu Items.
2x/1x Mode: 2x on is the Standard linedouble Mode, Outputting 480p/576p. This is the Default Mode when the System is Powered On. 1x on Simply Outputs Any Input Signal Without Changing the Resolution.
Smoothly On Off Mode: This Mode Adds a Filtering Option to Minimize Image Aliasing for 480p, 576p Output.
Note That Smoothing is Only Triggered in 2x Mode.
11. Output Mode: This Mode Switches the Output Port of the Video.
When the OSSCAdd on Board is Used with the OSSC, the OSSC May Not Receive the Signal in Time, Resulting in No Signal or Black Screen State. at This
