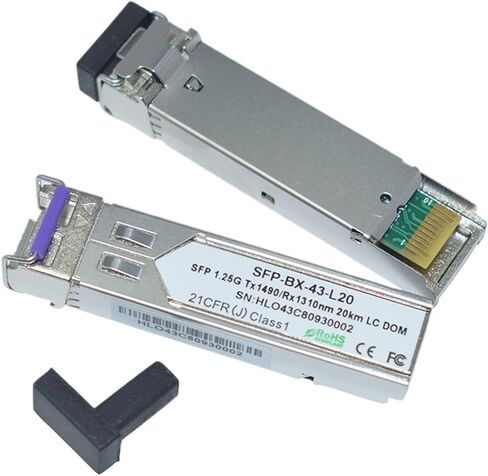

1.25G 1310nm/1490nm 20km SFP Transceiver
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are compliant and lead-free.
It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC/SC simplex connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.
Features:
1.25Gbps Data transfer rate
Tx1310nm/Rx1490nm andTx1490nm/Rx1310nmBiDi SFP
Distance up to 20km over SMF
Single 3.3V Power Supply and TTL Logic Interface
-Pluggable SFP
Simplex SC/LC (Optional)
Compliant with SFP
Digital Diagnostic Monitoring
Operating Case Temperature: 0-70 Temp
Applications:
Fiber Channel Links
WDM Application
Gigabit Ethernet
Other Optical Links
FTTX Application
