Transceivers

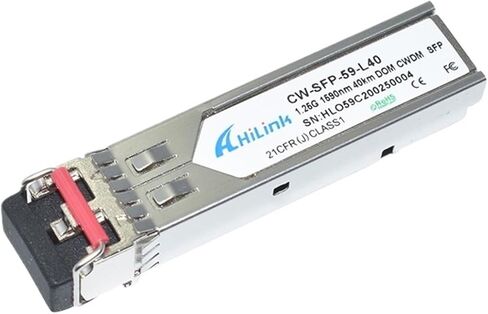

1.25G 1590nm 40km DDM CWDM SFP Transceiver
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are compliant and lead-free. It's widely used with CWDM Mux Demux together.
Features:
Up to 1.25Gb/s dual data links
-pluggable SFP footprint
Uncooled DFB laser transmitter
Duplex LC connector
Up to 40km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Commercial operating temperature range: 0 to +70 Temp
Applications:
Gigabit Ethernet
Fiber Channels
Router/Server interface
CWDM System
