40G QSFP ER4 1310nm 60KM
General
The HLQSFP60 is a transceiver designed for 60Km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
Product Feature
4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
QSFP compliant
Up to 60km transmission
Compliant with QDR/DDR data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Compliant
Application
Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-ER4 Ethernet Links
QSFP Series :
PartNumber
ProductDescription
HL-QSFP-40G-SR4
QSFP+,40Gb/s,40GBASE-SR4,MMF,850nm,150M
HL-QSFP-40G-LR4
QSFP+,40Gb/s,40GBASE-LR4,SMF,1310nm,10KM
HL-QSFP-40G-ER4
QSFP+,40Gb/s,40GBASE-ER4,SMF,1310nm, 40KM
HL-QSFP28-100G-SR4
QSFP+, 100Gb/s, 100GBASE-SR4,MMF,850nm,150M
HL-QSFP28-100G-LR4
QSFP+, 100Gb/s, 100GBASE-LR4,SMF,1310nm,10KM
HL-QSFP28-100G-ER4
QSFP+, 100Gb/s, 100GBASE-ER4,SMF,1310nm, 40KM
HL-QSFP28-100G-ZR4
QSFP+, 100Gb/s, 100GBASE-ZR4,SMF,1310nm, 80KM

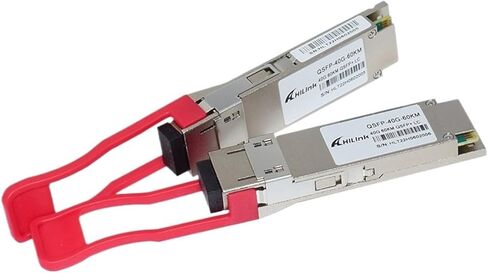

Product Picture Show
