Transceivers
GLC-EX-SMD 1.25G 40KM 1000BASE SMF 1310nm Dual LC SFP Moduler Compatible
General
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are compliant and lead-free.

1000BASE-40KMSFP:
1.25G 1310nm SFP Transceiver
1.25G 1550nm SFP Transceiver
Features
Up to 1.25Gb/s dual data links
-pluggable SFP footprint
1310nmDFBlaser transmitter
Duplex LC connector
Up to40km on9/125µmSMF
Metal enclosure for lower EMI
Single+3.3V power supply
Commercialoperating temperature range:0°C to+70°C
Applications
1.25Gb/s 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel
GigabitEthernetSwitchesandRouters
FiberChannel SwitchInfrastructure
When bidding the product, please leave message for your switch .
1.25G SFP Transceivers
GLC-SX
100BASE-SX SFP 850nm LC 550M
GLC-LX/LH
100BASE-LH SFP 1310nmLC 10KM
GLC-EX-1310
100BASE-EX SFP 1310nm LC 40KM
GLC-EX-1550
100BASE-EX SFP 1510nm LC 40KM
GLC-ZX
100BASE-ZXSFP 1550nm LC 80KM
GLC-ZX-120
100BASE-ZX SFP 1510nm LC 120KM
GLC-ZX-160
100BASE-ZX SFP 1550nm LC 160KM
GLC-ZX-200
100BASE-ZX SFP 1550nm LC 200KM

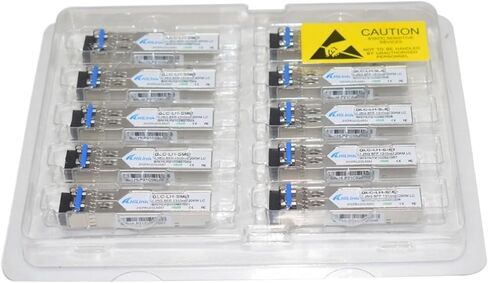

Product Show
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)O
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Transmitter
Output Opt. Power
PO
-2
- +3
dBm
1
Optical Wavelength
1275
1310
1350
nm
Spectral Width
- - 1 nm
Optical Rise/Fall Time
tr/tf
- 170
260
ps
2
Deterministic Jitter Contribution
TXDJ
- - 0.07
UI
3
Total Jitter Contribution
TXTJ
- - 0.007
UI
Optical Extinction Ratio
ER
9 - - dB
Receiver
Avera
