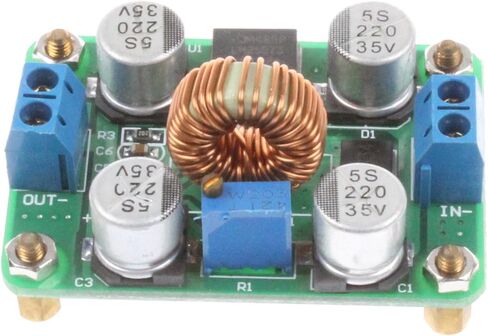

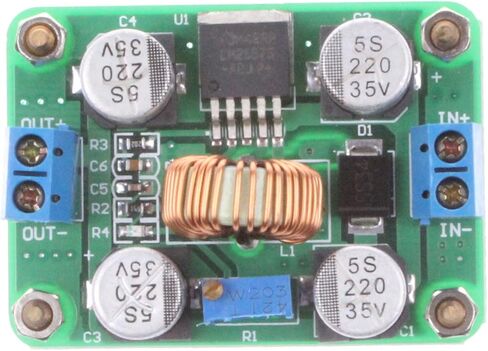

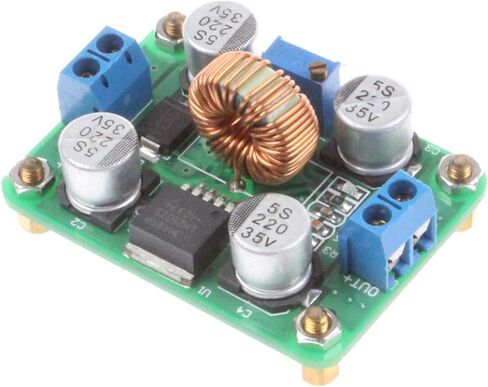

NOYITO DC to DC Boost Module 3.5-30V to 4-30V 5A Adjustable LM2587 Boost Regulator Step-up Power Converter Power Supply Module Board for Solar Panel Car Battery

KWD 1.500
KWD 3
Brand
NOYITO
Weight
33 g
– 1 +

Special Features

  • Input Voltage:DC3 5-30v;output Voltage:DC4-30v, please ensure that the output setting Voltage is higher than input Voltage.
  • Maximum input current: 5A; continuous working current: 3A.
  • Small size(38×52×20mm) and light weight(32g), portable and easy to install.
  • Adopts large encapsulation boost chip, high driving power and efficiency.
  • Note: when you test, if the input Voltage is higher than output Voltage, please adjust the potentiometer clockwise, the output Voltage will rise.

Description

Please Note:
When you test if the output voltage is not higher than the input voltage.
Please adjust potentiometer clockwise, the output voltage will rise, please do not adjust the counter-clockwise. in the case of high input voltage module would be damaged.

Features:
Input voltage range: DC 3.5V-30V
(must ensure that the output setting voltage is higher than the input voltage)
Output voltage range: DC 4.0V-30V
Input maximum current: 5A .(According to Power conservation Calculate the nominal conditions Output Current:Uin * Iin * efficiency = Uout * Iout) .
Continuous Current: 3A .(ventilation and heat dissipation in good condition Output voltage and input voltage ratio is not greater than 3) .
Board Color: Green

Package includes:
1pcs DC-DC Converter Module
