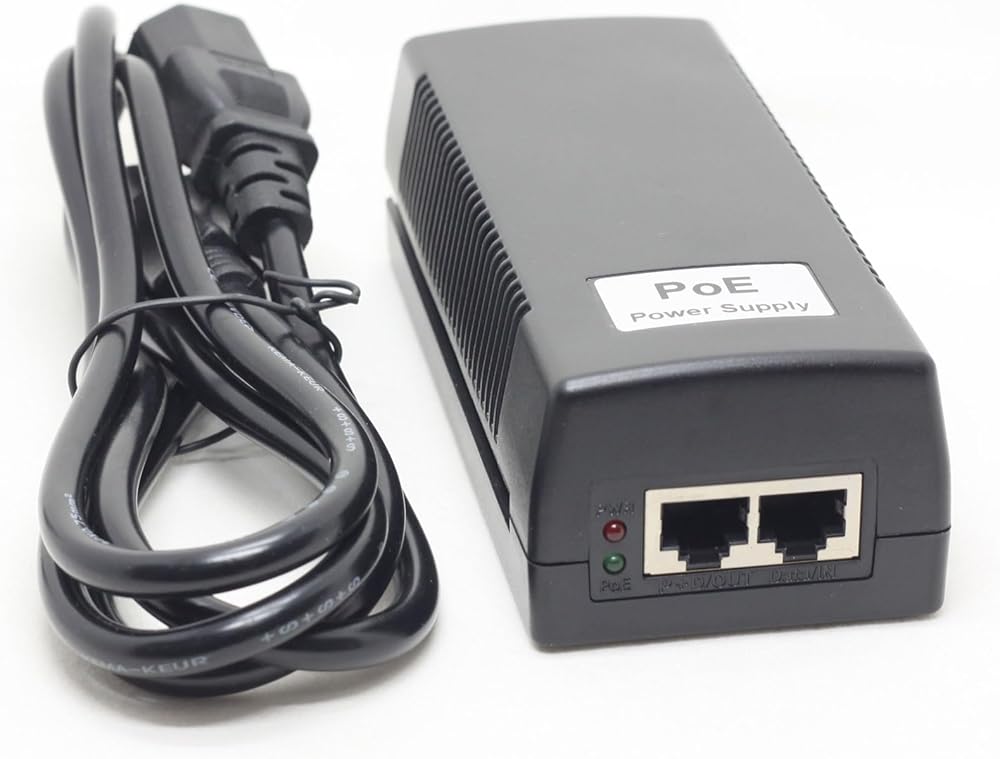

This PoE injector provides power to devices that are compatible with 802.3af (PoE), 802.3at (PoE+), or 802.3bt (PoE++) standards without the need for an extra adapter. Simply plug your network cable (not included) into your network switch and the "Data/In" port, then connect your device to the "P+D/OUT" port.

It supports 10/100/1000 Mbps gigabit Ethernet connection. The RJ45 PoE port uses pins 1, 2, 4, 5+ and 3, 6, 7, 8- for power transmission. Please do not connect any device that does not support PoE to this port, as it may damage your device.

This injector is compatible with 802.3af/at/bt standards but does not include PoE detection functionality. It will supply power continuously, regardless of whether the device supports PoE, so please make sure your device is PoE-capable before connecting.

Compatible Devices: PoE Passthrough Switch, PoE Extender, PoE Repeater, Wireless Access Points, IP Phones, IP Cameras, Gateways, Switches, and more.

This injector delivers a rated output of 60W (52V 1.2A), with support for peak output up to 90W (50V 1.8A) for short periods, suitable for transient high power demands.

Features:
Supports 802.3bt (PoE++), 4-Pair Power Pin 1245+ 3678-
Compatible with 10/100/1000 Mbps Ethernet
Rated Output Power: 60W (52V 1.2A)
Peak Output: Up to 90W (50V 1.8A), recommended for short-duration use only.
Cost-saving: No need for additional power cables for WLAN AP, IP Phones, and other IEEE802.3bt/at/af powered devices.
Compatible with IEEE 802.3bt/at/af standards and provides reliable power to PD devices.

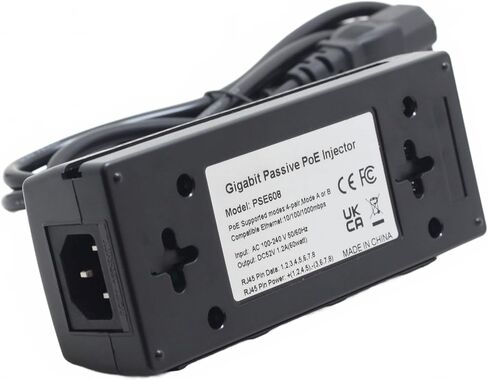

Lightweight plastic enclosure with locking mechanism for easy stacking and installation of multiple PoE injectors; features rear mounting holes for secure placement.
Built-in universal 100-240V AC power supply, standard RJ45 Cat.5 Ethernet data input/output, easy to use and convenient.

Specifications:
Compatible Standards: 802.3bt, 802.3at/af
Supports 10/100/1000 Mbps Ethernet
RJ45 Pin Configuration: Data pins: 1, 2, 3, 4, 5, 6, 7, 8; Power pins: +(1, 2, 4, 5), -(3, 6, 7, 8)
LED Indicator: Power
Input Voltage: AC 100-240V, 50/60Hz
Output Voltage: DC 52V 1.2A, 60W(Peak Up to 50V 1.8A 90W)
Dimensions: 147 x 66 x 45mm (excluding connector protrusions)
Weight: 200g (excluding AC power cord weight)

Package Includes:
Gigabit 802.3bt 60W PoE Injector Adapter x1
AC Power Cable x1
