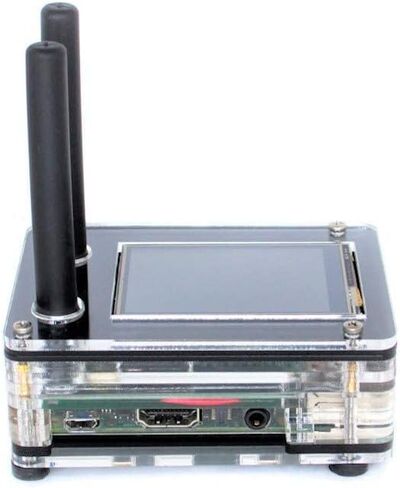

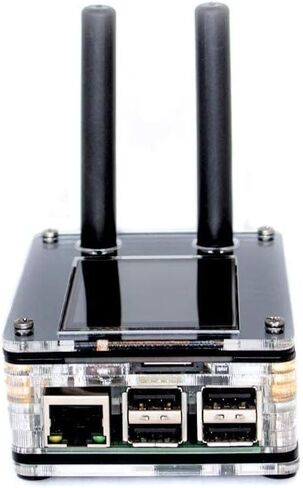

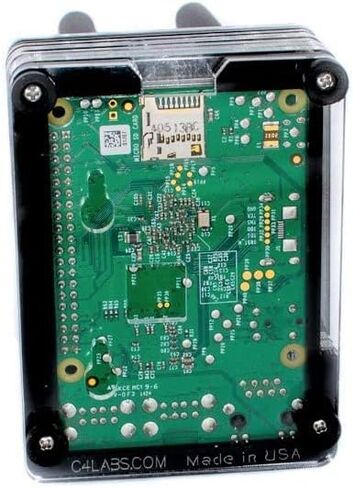

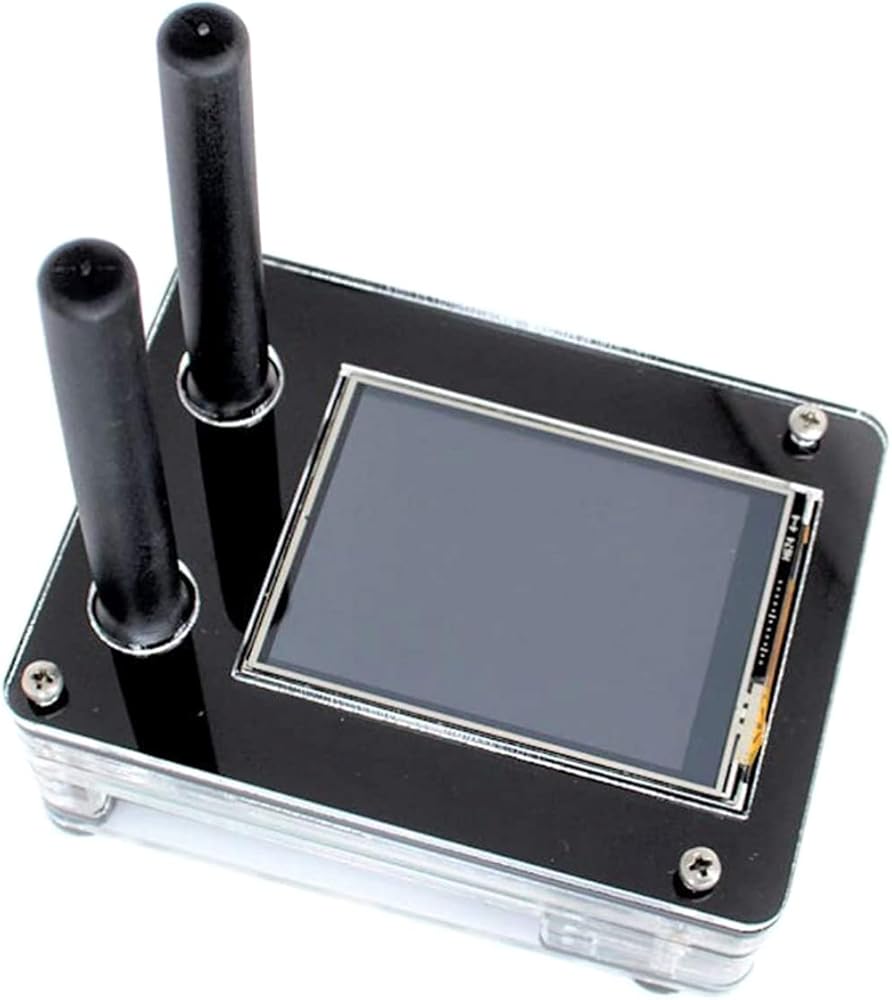

The DRPi-1NSX case allows you to elegantly combine the Raspberry Pi, Duplex MMDVM, and a 2.4″ Enhanced Nextion Touchscreen*, which is included. We go the extra mile to make sure everything we make feels solid and looks great. We use stainless steel hardware and acrylic to construct this case and guarantee you will love it as much as we do.
The Nextion Enhanced NX3224K024 is a powerful 2.4″ HMI TFT display, with 16MB Flash data storage space, 1024 byte EEPROM, and 3584 byte RAM. *Please note that connecting the Nextion screen to your set-up may require additional soldering of pins or wires not covered in these case instructions.
Notes on fit of Pimoroni Fan Shim (not included)
The clearance between the fan shim (not included) and most radio boards is very slim and not all boards will work with the fan shim if there are components or solder points above the fan.
The fan shim has been tested to work with the Zumspot versions 0.4, 0.5, 0.6 and MMDVM Duplex as long as there is no previous solder left over from an OLED screen.
The fan shim does NOT work with the N5BOC Lonestar Board***
C4Labs provides the best products and customer service. We are not satisfied until you are! Designed and Crafted in Tacoma, WA, USA.
